MB2

Magnetic Stand - Compact (Clamp hole adjustable from 5 to 6.5 mm)

Overview
Specifications
Accessories
Citations
Related Products

Overview

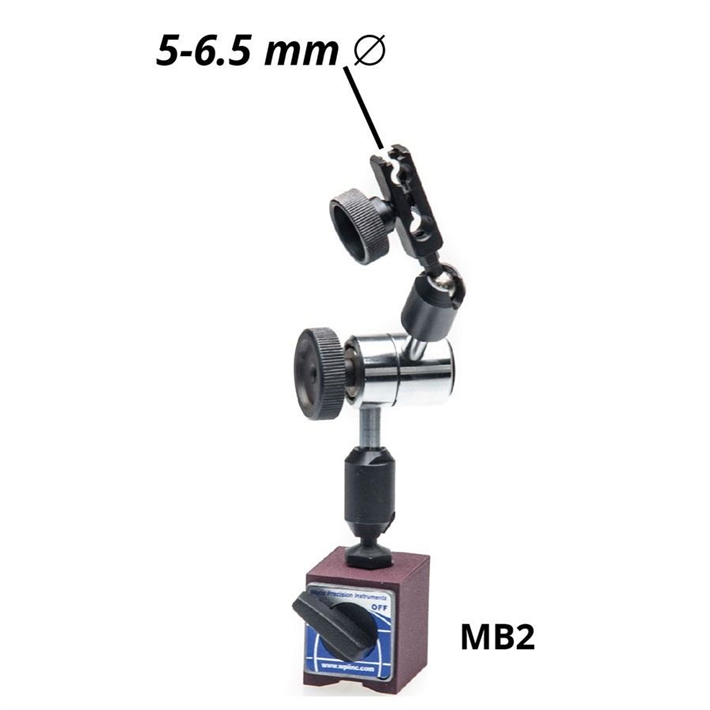

MB2 Magnetic Stand - Compact, 5 to 6.5 mm

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Clamp hole adjustable from 5 to 6.5 mm

Features

Mechanical clamping type tightens three joints simultaneously just by one-touch operation. Arm is freely adjustable without distortion. Equipped with fine adjuster and medium size magnet for stabilizing the base. Suitable for performing precision operation.

Base

30 ( w ) x 30 ( l ) x 30 ( h ) mm ( 1.2 x 1.2 x 1.2 in. )

Vertical Holding Power

17 kgf (37 Ib force)

Arm

L1: 46 mm (1.8 in.) L2: 46 mm (1.8 in.) L3: 39 mm (1.5 in.)

Clamp Hole

Adjustable from 5 to 6.5 mm

Weight

0.38 kg (0.83 Ib)
