M10

M10

Magnetic Stand



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

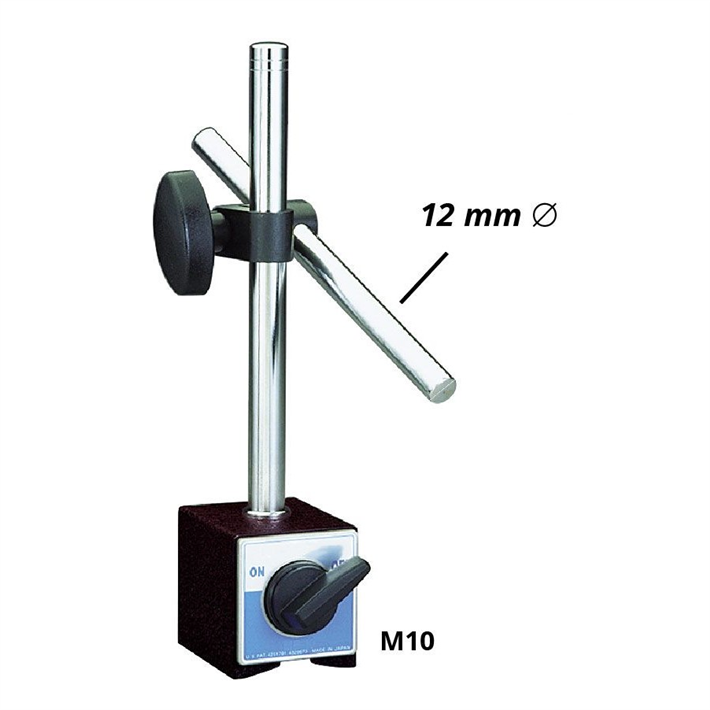

M10 Magnetic Stand

There are 1 images available to view - click to enlarge and scroll through the product gallery.

  • Main Post Diameter: 14 mm
  • Sub Post Diameter: 12 mm
  • Height: 178 mm

Features

A precision magnetic base provides stable support for such devices as electrodes and micromanipulators. The adjustable second arm adopts a variety of angles.These are an ideal manipulator stands.

Similar to M1 but with a 12 mm diameter sub pole (fits 12 mm clamp supplied with M3301, DC3001, MD4 and MMJ manipulators).

Base

50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0x 2.3 x 2.2 in. )

Vertical Holding Power

80 kgf ( 176 lb force )

Main Pole

diameter: 14 mm (0.55 in.) length: 178 mm (7 in.)

Sub Pole

diameter: 12 mm (0.47 in.) length: 165 mm (6.5 in.)

Clamp Hole

Adjustable from 4.5 mm to 6.5 mm

Weight

1.8 kg (4 lb)

Specifications

Accessories

Citations

RelatedItems
