MICRO-ePORE

Overview

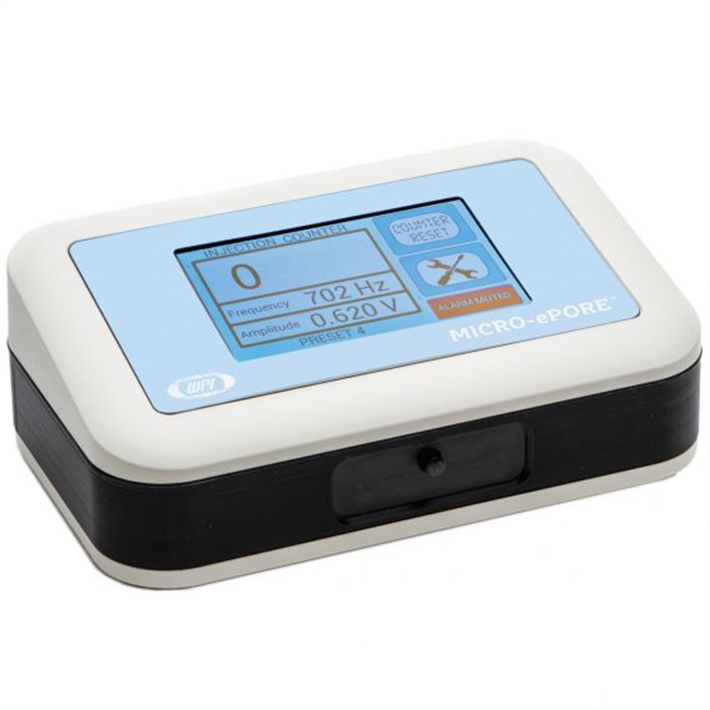

Pinpoint Cell Penetrator for targeted microinjection and increased viability of injected embryos

• Touch-screen display–resistive touch panel for use with gloves
• Injection control through foot switch or manually through touch screen
• Intuitive user-interface
• User adjustable frequency and voltage through touch screen
• Small footprint
• Four user-programmable protocols
• Adjustable audio continuity tone indicating active probe Injection counter to indicate total number of injections

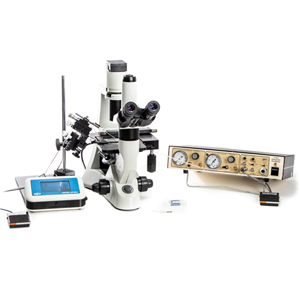

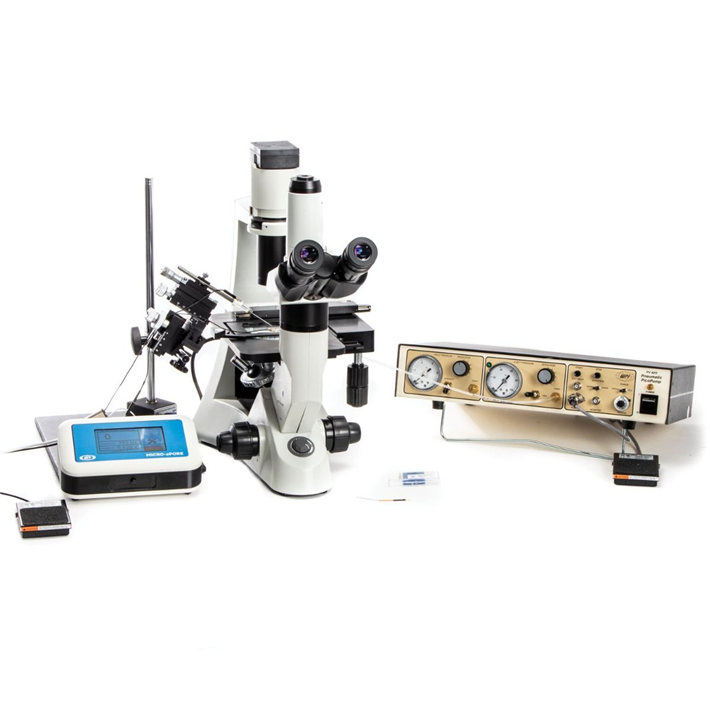

NOTE: Microinjection pump and other accessories shown in the system image are sold separately.

Benefits

• Increase viability of injected embryos
• Flexible system

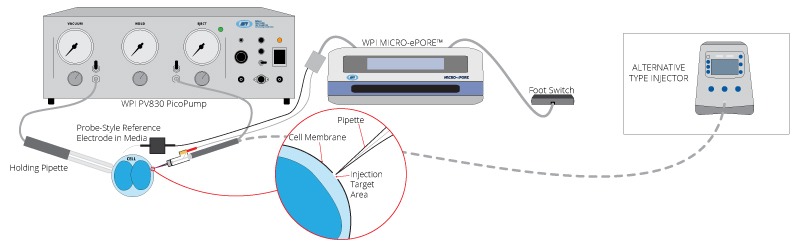

  Integrates with WPI’s PV820/PV830, as well as other popular microinjection systems, like the Eppendorf Femtojet®  and the Narishige injectors (Femtojet® 4I is a registered Trademark of Eppendorf.)

  Microinjection of diverse compounds and biomolecules – DNA, RNA, proteins

  Pre- and post-implantation in embryos of various species – mice, rodents, monkeys, bovine, pigs, zebrafish, etc.
• Easy to operate – Hands-free operation with foot switch control
• User adjustable frequency and voltage – four programmable protocols
• Small, portable unit saves precious benchtop space
• Works with all major inverted microscopes

Target Applications

• Microinjection into oocytes and pre-implantation stage mammalian embryos, including microinjection of CRISPR-Cas9 reagents into the cytoplasm of two-cell stage embryos
• Pronuclear rodent zygote microinjection
• Gene silencing in zebrafish

Simple, Elegant Solution

The new WPI MICRO-ePORE™ pinpoint cell penetrator is a simple and versatile system that can be used for efficient microinjection of a diverse array of compounds and biomolecules into oocytes and pre-implantation stage mammalian embryos. Patent pending Flutter Electrode Technology assists in small, clean, precise membrane penetration without tearing or damaging the membrane.

Experimental Data

Electrophysiological systems utilizing negative capacitance have been routinely used for microinjection of a variety of biomolecules into mammalian oocytes, as well as pre-implantation and post-implantation embryos in develomental biology studies.1—6 The system which is no longer available, the intracellular amplifier WPI Cyto721, allows the needle to pierce the cell membrane with minimal physical trauma. More recently this technique has been applied to the microinjection of CRISPR/Cas9 reagents into two-cell stage mouse embryos.7 The authors demonstrated significant increase in the knock-in efficiency and high viability of embryos using their method.

The new MICRO-ePORE™ pinpoint cell penetrator offers a unique solution for microinjection resulting in high viability. The instrument creates an oscillating electric field at a localized site on the membrane immediately beneath the site of injection. The MICRO-ePORE™ creates small, reversible holes in the plasma membrane through which material is microinjected. The researcher determines the amplitude and frequency of the signal that best suits the application. In contrast to conventional microinjection, in targeted microinjection using the MICRO-ePORE™, the membrane does not tear and thus allows for superior viability of embryos. The technique is simple and elegant. The new MICRO-ePORE™ cell penetrator prototype has been successfully tested in mouse and primate pre-implantation embryos, as well as gene silencing in zebrafish tails.

MICRO-ePORE™ was designed for a range of applications including generation of CRISPR/Cas9 mediated knock-in mice with large insertions by microinjection into two-cell stage embryos with high viability.7 The MICRO-ePORE™ has delivered accurate microinjection of morpholino oligomers (anti-sense “knockdown”) in zebrafish tails.

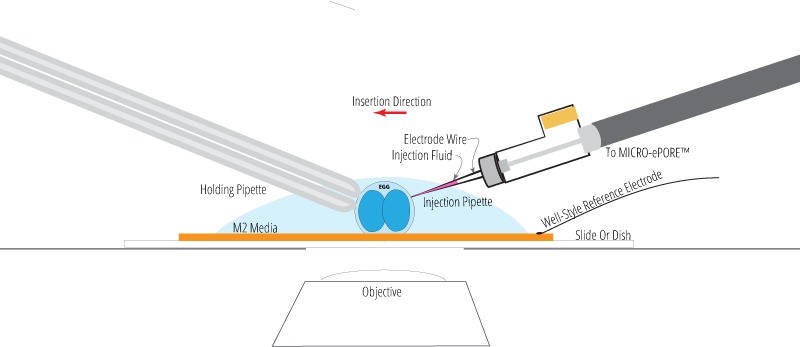

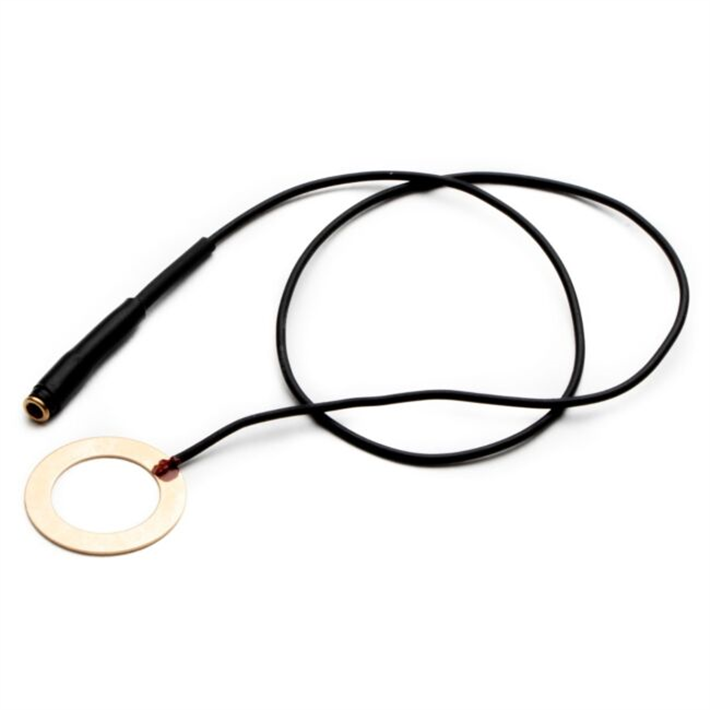

Well-Style Reference Electrode Option

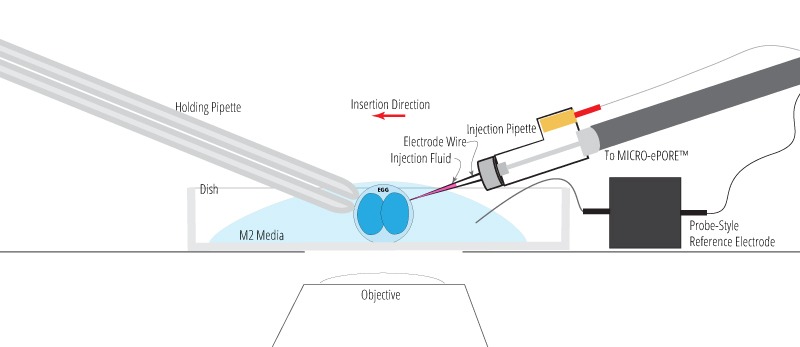

Probe-Style Reference Electrode Option

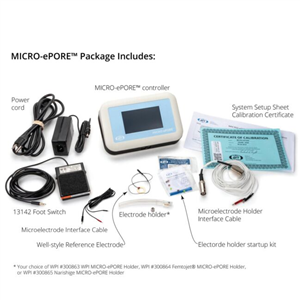

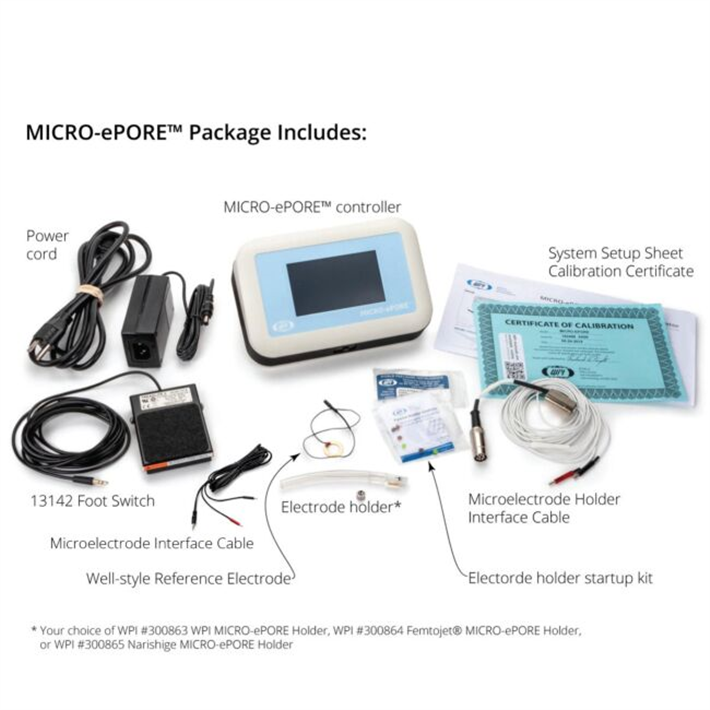

Unpacking Your MICRO-ePORE™ System


Connecting Your MICRO-ePORE™ System

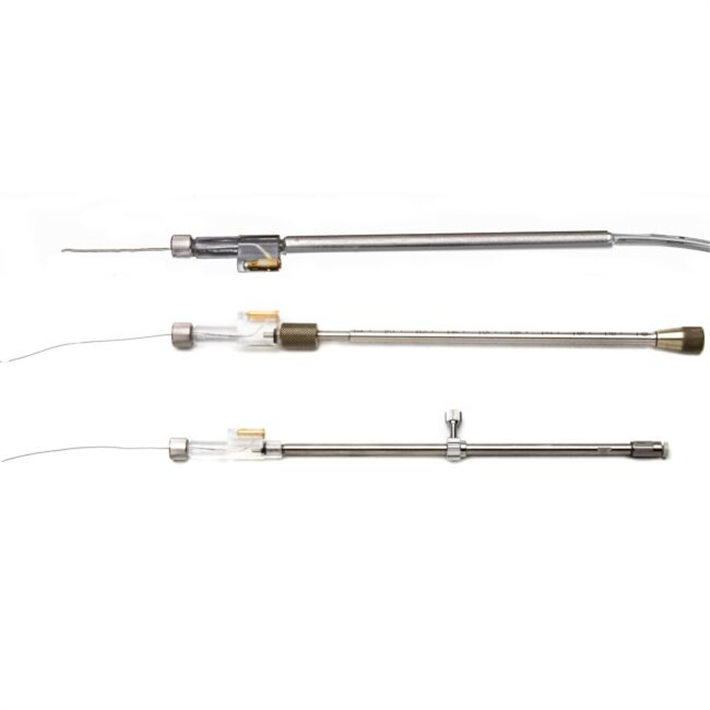

Connecting the MICRO-ePORE™ Electrode Holders




Specifications

Voltage parameters	0–3.0 V, at 1 mV increments
Frequency parameters	50–3000 Hz, at 1 Hz increments
Pipette resistance alarm threshold maximum	500 MΩ
Dimensions	19.7 × 12.7 × 7.6 cm (7.75 × 5 × 3 in.)
Weight	0.9 kg (2 lb.)
Certifications	CE, RoHS
