Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
FORT10G Instruction Manual
/ Download as PDF
- 10g force transducer
- Broad dynamic measurement range
Details

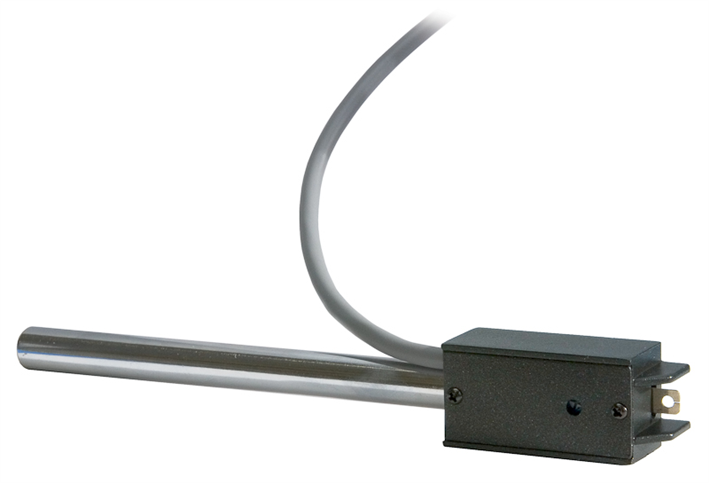

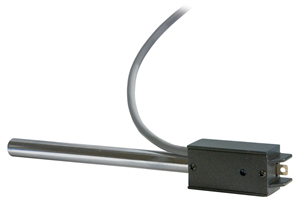

FORT10g is a reliable tool for high precision force measurement. Using balanced semiconductor strain gauges, this 10-gram force transducer produces linear output voltage versus applied force input with very little deflection. It is a temperature-compensated, full-bridge configuration with four high sensitivity semiconductor strain gauges. FORT10g has a broad dynamic measuring range and a very high sensitivity. The arms around the sensing leaf are designed to protect the leaf from an accidental touch which will disturb the force calibration and may damage the transducer.
Specifications
| Force Range, full scale | 0-10g |
| Output Sensitivity | 10mv/g@10V, 1000μV/volt/g, nominal |
| INPUT & OUTPUT Resistance | 1500MΩ |
| Resolution | < 1mg |
| Resonant Frequency | 450 Hz |
| Linearity Error | < 0.2% of full scale |
| Maximum Operating Voltage | 10VDC (-5V ~ +5V or 0 ~ 10V) |
| MAXIMUM APPLIED FORCE | 2x rated full scale force |
| DRIFT | < 30mg/hr |
| DIMENSIONS |
40 x 22 x 19mm |
| Weight | 100g |
