Accessories for PZMIV series
Optional Bodies for PZMIV series
| 502000 | PZMIV Binocular Body With 10X Eyepieces, 1X Objective, Eye guards |
| 502001 | PZMTIV Trinocular Body With 10X Eyepieces, 1× Objective, Eye guards |
Optional Stands, Mounts, Bases for PZMIV series
| 502002 | 76 mm Rectangular, Track Stand |
| 502004 | Boom Stand (Heavy) W/O Focus Mount (requires 502009 Focus Mount for PZMIV) |
| 502005 | Ball Bearing Boom Stand (Heavy) W/O Focus Mount (requires 502009 Focus Mount for PZMIV) |
| 502006 | Boom Clamp Stand (Heavy) (requires 502009 Focus Mount for PZMIV) |
| 502009 | Universal Focus Mount for 76 mm PZMIV (Required for BS, AAC, BBS, and BCS) (5/8” pin) |
| 504123 | Extension for Heavy Clamp Stand |
| 504929 | LED Microscope Stand, 12.5 inch Post |
Optional Eyepieces for PZMIV series
| 502010 | 10× Wide Field Eyepiece for PZMIV (pair) |
| 502011 | 16× Wide Field Eyepiece for PZMIV (pair) |
| 502012* | 20× Wide Field Eyepiece for PZMIV (pair) |
| 502013 | 25× Wide Field Eyepiece for PZMIV (pair) |
| 500264 | 10× Eyepiece with Reticle (matches 10× eyepiece #502010) |
| 500266 | 20× Eyepiece with Reticle (matches 20× eyepiece #502012) |
*Long working distance (LWD) option with 502012 and 502017 on a trinocular microscope shows nearly the same scene on the screen as the viewer sees in the eyepieces.
Optional Objectives for PZMIV series
| 502017* | 0.50×, Planachromatic Objective (Distortion-free) (174 mm WD) |
*Long working distance (LWD) option with 502012 and 502017 on a trinocular microscope shows nearly the same scene on the screen as the viewer sees in the eyepieces.
Other Accessories for PZMIV series
| 500261 | 0.35× CCD Camera Coupler, C-Mount |
| 500262 | 0.5× CCD Camera Coupler, C-Mount |
| 500028 | 1× CCD Camera Coupler, C-Mount |
| Cameras & Photo/Video Adapters | |
| Light Sources |

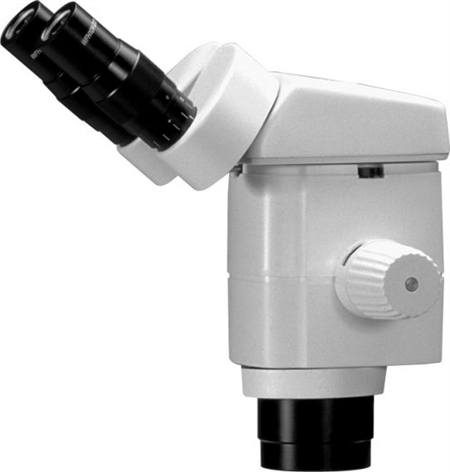

502000
PZMIV Binocular Body (without stand), Includes 10x eyepieces, 1x objective and eyeguards

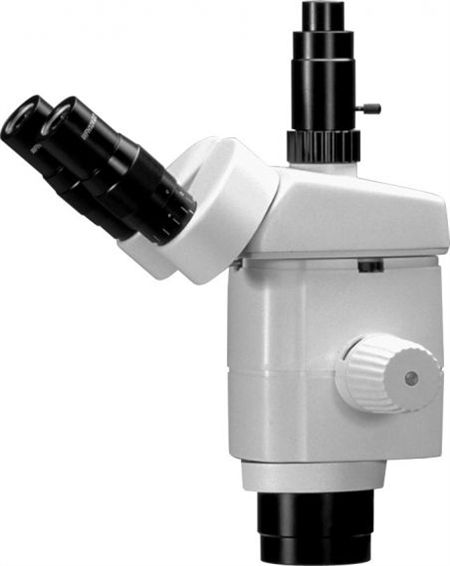

502001
PZMIV Trinocular Body (without stand), Includes 10x eyepieces, 1x objective and eyeguards
502004
Boom Stand without focus mount, requires 502009 focus mount for PZMIV and PZMIII ser...
502005
Ball Bearing Boom Stand without focus mount, requires 502009 focus mount for PZMIV a...
502006
Boom Clamp Stand (heavy) without focus mount, requires 502009 focus mount for PZMIV ...
502002
Fan Track Stand With 76 mm Mount
This post stand comes with a 95mm plastic plate that is white on one side and black on the other. It is perfect for any microscope requiring a 76mm focus mount.
- Base Dimension:335mm×305mm×21mm (12.5 deep ×12.75" wide).
- Table Height 14" (355mm)
- Vertical Track Height 13" (33cm)
- Focusing distance 175mm
- Black and white plate 95 mm diameter
- Distance from the track to the plate centerline 128mm
- Weight 5.5 Kg
504123
Extension for heavy stands
502007
Articulated Arm and Table Clamp without focus mount, requires 502009 focus mount for...
502163
Wall-Mount Plate for Articulated Arm (502007). Dimensions: 6 in. x 6 in. Mount your microscope on the wall for convenient storage when space is tight. Includes wall bolts (Metric). Shipping Weight 9 lb.
502009
Universal Focus Mount for 76 mm PZMIV and PZMIII
502010
10X Wide Field Eyepiece for PZMIV (pair)
502011
16X Wide Field Eyepiece for PZMIV (pair)
502012
20X Wide Field Eyepiece for PZMIV (pair)
502013
25X Wide Field Eyepiece for PZMIV (pair)
500264
Reticle in 10x Eyepiece (1), for use with PZMIV, 30mm version, 100 divisions
500266
Reticle in 20x Eyepiece (1), for use with PZMIV, 0-90°, 200 divisions
502017
0.50x, Planachromatic Objective - 187 mm WD for PZMIV
500261
0.35x CCD Camera Coupler, C-Mount for PZMZTIV (use with USBCAM33)
500262
0.5x CCD Camera Coupler, C-Mount for PZMZTIV (use with COLCAM, USBCAM50)
500028
1.0x CCD Camera Coupler, C-Mount for PZMZTIV (use with COLCAM)
502015
Ring Light Adapter for PZMIV. For use with R-8-8-WPI01 Ring Light Guide).
