Stereomicroscope PZMIV series

Stereomicroscope PZMIV series

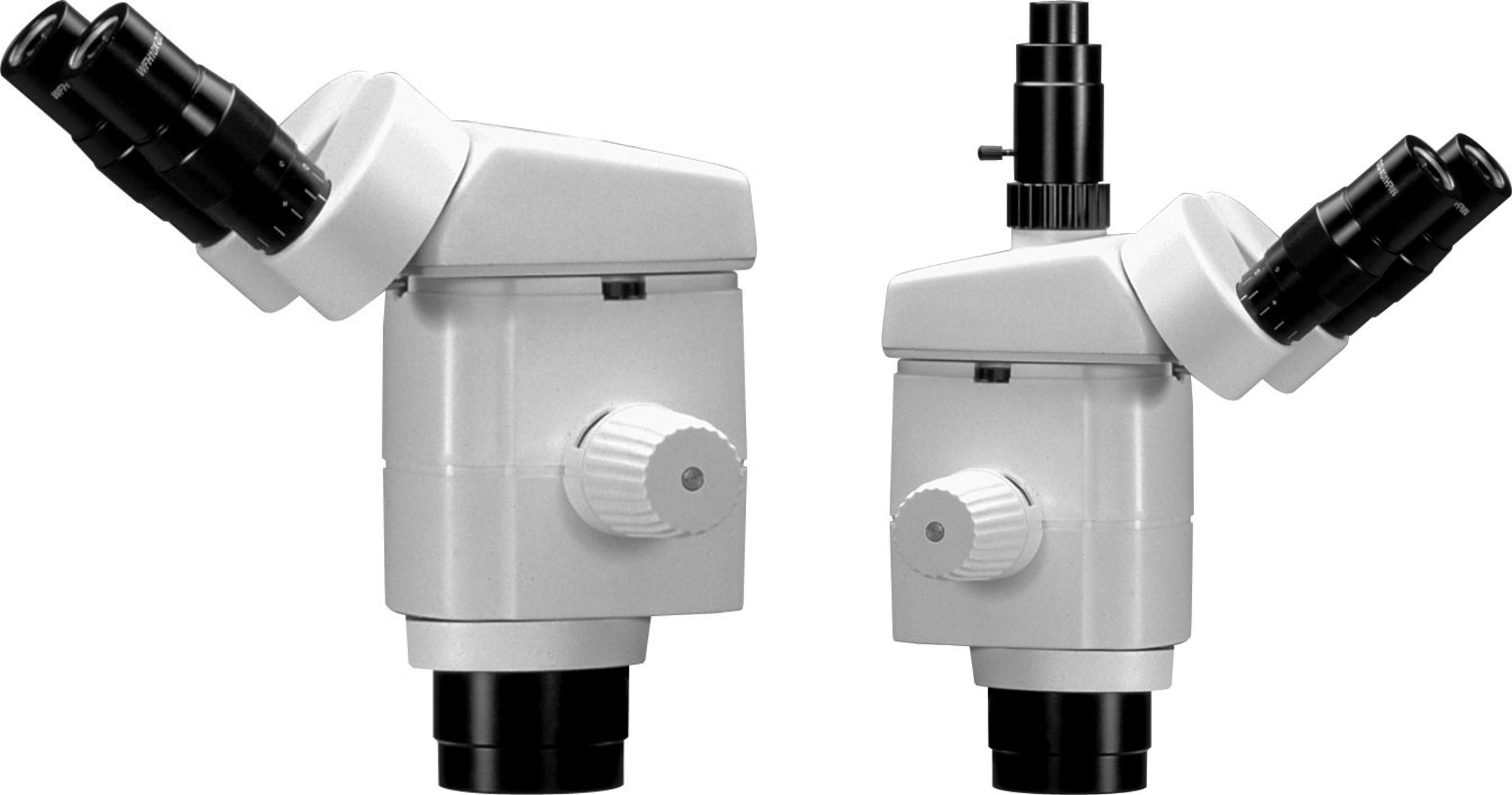

The fourth generation of WPI’s precision stereo zoom microscopes uses modular, two parallel beam path design and high quality optical system. The advanced optical design with planachromatic objectives provides sharp and distortion-free contrast image throughout the entire zoom range and comes with an impressive 5-year warranty. The PZMIV is available in a binocular or trinocular version.


Features

  • Planachromatic objectves, no optical distortion
  • Large zoom ratio 8:1
  • Large zoom range 0.62x to 5.0x
  • Step and continuous zoom

Applications

  • Integrated optical and biological research

Options

PZMIV Binocular Stereo Microscope

 Order code Type Description
502000 Head only Includes pair of 10x eyepieces and eyeguards
PZMIV Track Stand Includes PZMTIV binocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and track stand
PZMIV-BS Boom Stand Includes PZMTIV binocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and boom stand



PZMIV Trinocular Stereo Microscope

The PZMTIV trinocular version of this microscope offers a true trinocular view. Both eyepieces and the trinocular ports are active all the time. There is no need for the right eye piece to switch off. The left eye piece dims slightly, and the right eye piece is 50/50.

 Order code Type Description
502001 Head only Includes pair of 10x eyepieces and eyeguards
PZMTIV Track Stand Includes PZMTIV trinocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and track stand
PZMTIV-BS Boom Stand Includes PZMTIV trinocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and boom stand



Long Working Distance Option

A common application for the PMZIV is to add a .5x objective (502017) to allow for more working distance under the lens. This increases the PZMIV working distance from 80 mm to 189 mm.

The use of this auxiliary lens drops the magnification range to half, so we also recommend acquiring the 20x eyepieces (502012) to return the microscope to its standard magnifications.


Accessories for PZMIV series

Accessories for PZMIV series

View all...

PZMIV

PZMIV

Precision Stereo Zoom Binocular Microscope (IV) on Track Stand

View details...

PZMIV-BS

PZMIV-BS

Precision Stereo Zoom Microscope (IV) on Boom Stand

View details...

PZMTIV

PZMTIV

Precision Stereo Zoom Trinocular Microscope (IV) on Track Stand

View details...

PZMTIV-BS

PZMTIV-BS

Precision Stereo Zoom Trinocular Microscope (IV) on Boom Stand

View details...
