PZMIII-MI

Overview

• Perfect microscope for microinjection applications
• Illuminated base
• Articulating mirror

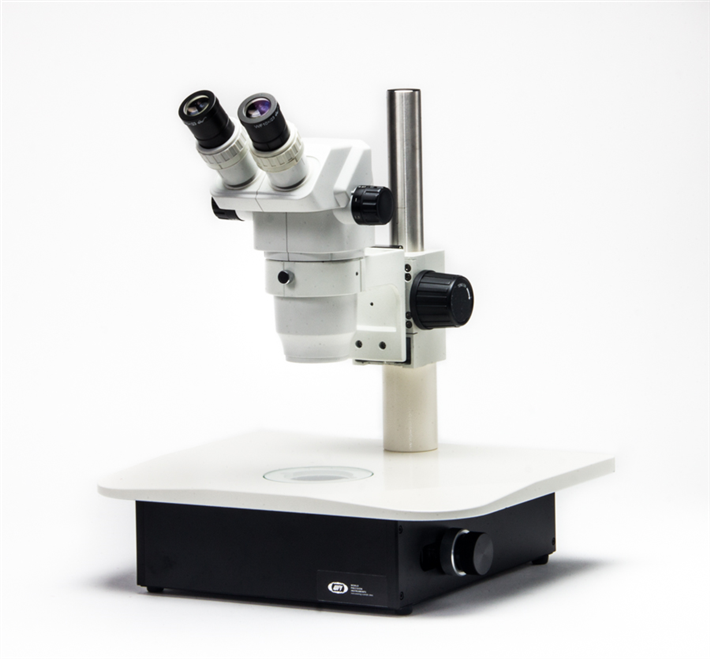

PZMIII-MI Microscope with Illuminated Base and Articulating Mirror is perfect for microinjection and transfection. It includes our standard stereo microscope head mounted on a research grade Brightfield/Darkfield pole type stand. It has a large stable work surface and a rotatable lens/mirror system which provides transmitted LED intensity illumination.

The sliding mirror is gimbaled, allowing for a full range of movement front to back, as well as rotation. The mirror rotates 360 on one axis and can slide for further lighting effect directionally, front to back. A knob on the right of the base adjusts the mirror and a locking ring holds the desired mirror position.

The articulating mirror lets you vary the microscope illumination from Brightfield LED to Darkfield LED at an appropriate angle. It is an effective tool for viewing live bacteria. At low magnifications, view tissues, cells or embryo transfer where oblique transmitted illumination is critical.

The scope mounting pole diameter is 32mm.

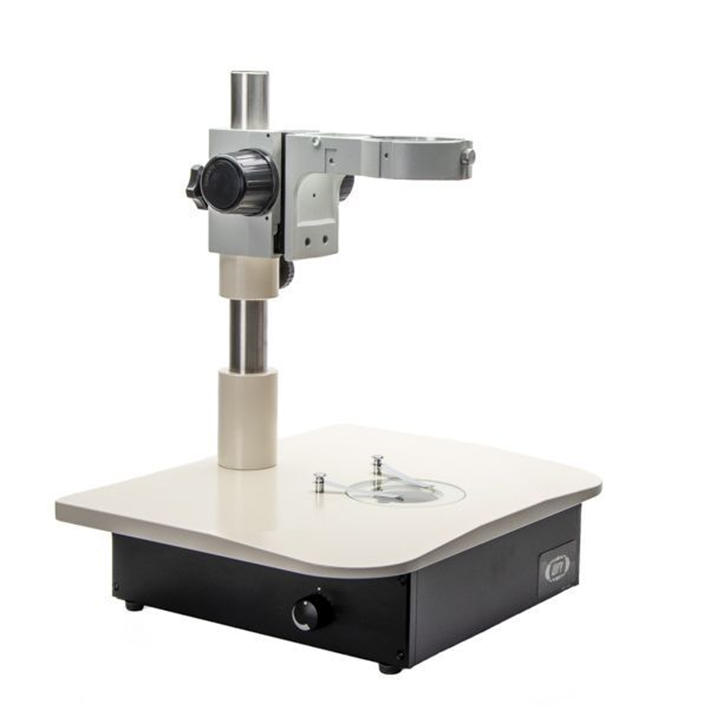

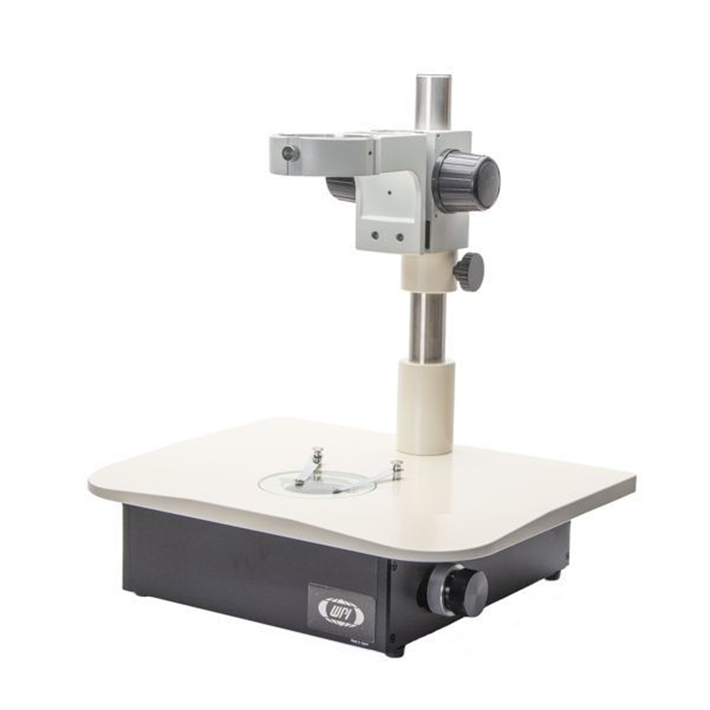

This platform includes the PZMIII microscope, a focus mount, two stage clips, 94.5mm glass stage plate and an automatic voltage sensing power supply and a 20mm vertical post.

The base may be fitted to other microscope heads.

Microscope Options

This unit is sold with our standard PZMIII binocular stereo microscope head. Other options are available. Speak with a specialist today to configure a microscope for your needs.

If you want to add a camera or connect with a video monitor, select a PZMTIII trinocular head for you lighted microscope base.

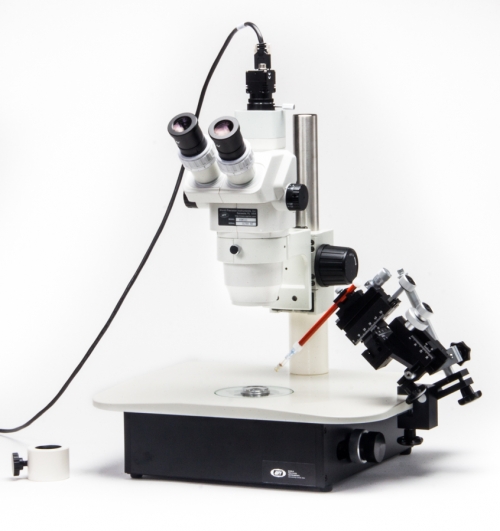

This trinocular microscope head has a camera attached. It also shows an M3301 mounted to the base using a M4C coupler for microinjection studies. A setup like this facilitates classroom or collaborative environments so everyone can see on the remote screen  what the researcher is viewing through the microscope.

Specifications

Dimensions	330mm (13") wide by 280mm (11") length by 85mm (3.37") high
Pillar Height	5.7” height -20mm pillar
Glass Stage Plate	94.5mm Round
Stage Clips	75mm clip length, 4mm pin, paired
Illumination Port	Built in incident and transmitted variable intensity LED illumination
Rotatable Mirror	Dual-reflection lens/mirror system provides transmitted brightfield/ pseudo-darkfield illumination
Manufacturer	MADE IN JAPAN
Warranty	LIMITED LIFETIME WARRANTY
CE	Yes
Package Information	10 lbs; 17 x 14 x 9 inches
