PZMTIII-BS

Precision Stereo Zoom Trinocular Microscope (III) on Boom Stand

Overview
Specifications
Accessories
Citations
Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

PZMIII Instruction Manual
/ Download as PDF

PZMIII and PZMIV Eyepiece and Objective Specifications
/ Download as PDF

Microscope to Camera Configuration Chart
/ Download as PDF

Includes PZMTIII trinocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and boom stand
Requires a C-mount adapter (#501381) when using a camera

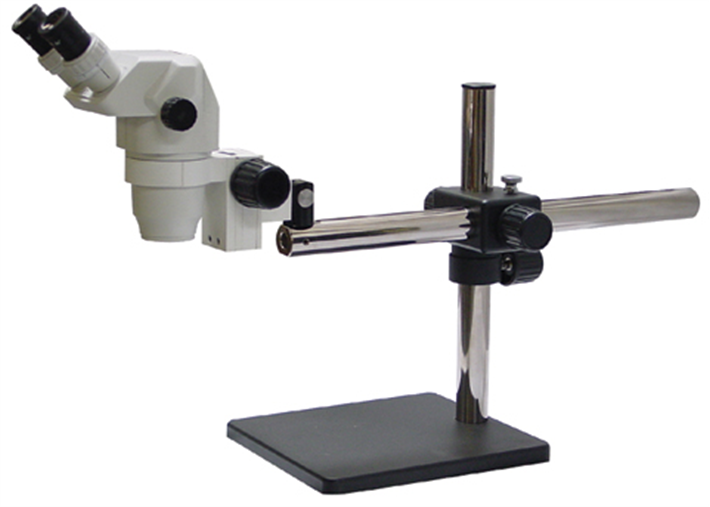

NOTE: Binocular is shown in the image

Affordable quality

WPI’s third-generation stereomicroscope, PZMIII, is an ideal tool for tissue dissection, cell injection, specimen manipulation, electrode inspection, and many other applications that require a magnified, stereo viewing and ample working distance. It offers the leading brand’s quality and performance at an affordable price. Advanced optics provide the sharpest image that can only be found among the best of this class. It is superior to many stereomicroscopes costing almost twice as much. Zooming is achieved by a spring-loaded nub that is smooth and effortless. The compact size and light weight make it more stable and easily manipulated on the boom stand. A specially designed photo/video module is used in the trinocular version of the microscope for photo, video or digital imaging (PZMTIII). In addition, an extensive list of optional accessories is available that can make the PZMIII suitable for almost any bio-research applications requiring a stereomicroscope.

Specifications

EYEPIECES	WFH 10x
ZOOM RANGE	0.67x - 4.5x
TOTAL MAGNIFICATION	6.77x - 45x
FIELD OF VIEW	34 MM - 5 MM
WORKING DISTANCE	100 mm
BINOCULAR TUBE	Inclined 45°
INTERPUPILLARY DISTANCE	Adjustable 47-70 mm
DIOPTER ADJUSTMENT	±5 Diopter (both eyepiece tubes)
MICROSCOPE BODY	Rotatable 360°
AUXILIARY LENSES: Total magnification	2x - 225x
AUXILIARY LENSES: Biggest Field of View	110 mm
AUXILIARY LENSES: Working Distance	26-287 mm
SHIPPING WEIGHT	23 lb.

Boom Stand Specifications

Base Size	11.22 x 10.24 x 0.71" (285 x 260 x 18mm)
Maximal size from vertical post to the front of the base	9.4" (238.25mm)
Horizontal bar length	19" (483mm)
Horizontal bar diameter	1.465" (37.2mm)
Vertical post length	15.1" (384mm)
Vertical post diameter	1.465" (37.2mm)
Extension post	Extends size up to 25" (634mm)
Diameter of mounting holes in the front of horizontal bar	0.625" (15.875mm)
Maximal bearing load on the front of horizontal bar	21 lb. (9.526kg)
