PZMTIII-BS

PZMTIII-BS

Precision Stereo Zoom Trinocular Microscope (III) on Boom Stand


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

PZMIII-BS

There are 1 images available to view - click to enlarge and scroll through the product gallery.

PZMIII Instruction Manual
/ Download as PDF

PZMIII and PZMIV Eyepiece and Objective Specifications
/ Download as PDF

Microscope to Camera Configuration Chart
/ Download as PDF

  • Includes PZMTIII trinocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and boom stand
  • Requires a C-mount adapter (#501381) when using a camera

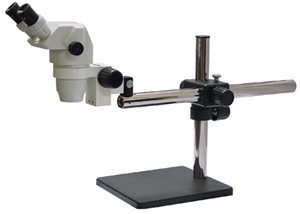

  • NOTE: Binocular is shown in the image

Affordable quality

WPI’s third-generation stereomicroscope, PZMIII, is an ideal tool for tissue dissection, cell injection, specimen manipulation, electrode inspection, and many other applications that require a magnified, stereo viewing and ample working distance. It offers the leading brand’s quality and performance at an affordable price. Advanced optics provide the sharpest image that can only be found among the best of this class. It is superior to many stereomicroscopes costing almost twice as much. Zooming is achieved by a spring-loaded nub that is smooth and effortless. The compact size and light weight make it more stable and easily manipulated on the boom stand. A specially designed photo/video module is used in the trinocular version of the microscope for photo, video or digital imaging (PZMTIII). In addition, an extensive list of optional accessories is available that can make the PZMIII suitable for almost any bio-research applications requiring a stereomicroscope.

Specifications

EYEPIECES WFH 10x
ZOOM RANGE 0.67x - 4.5x
TOTAL MAGNIFICATION 6.77x - 45x
FIELD OF VIEW 34 MM - 5 MM
WORKING DISTANCE 100 mm
BINOCULAR TUBE Inclined 45°
INTERPUPILLARY DISTANCE Adjustable 47-70 mm
DIOPTER ADJUSTMENT ±5 Diopter (both eyepiece tubes)
MICROSCOPE BODY Rotatable 360°
AUXILIARY LENSES: Total magnification 2x - 225x
AUXILIARY LENSES: Biggest Field of View 110 mm
AUXILIARY LENSES: Working Distance 26-287 mm
SHIPPING WEIGHT 23 lb.



Boom Stand Specifications

Base Size 11.22 x 10.24 x 0.71" (285 x 260 x 18mm)
Maximal size from vertical post to the front of the base 9.4" (238.25mm)
Horizontal bar length 19" (483mm)
Horizontal bar diameter 1.465" (37.2mm)
Vertical post length 15.1" (384mm)
Vertical post diameter 1.465" (37.2mm)
Extension post Extends size up to 25" (634mm)
Diameter of mounting holes in the front of horizontal bar 0.625" (15.875mm)
Maximal bearing load on the front of horizontal bar 21 lb. (9.526kg)

Accessories


Choose Quantity
501369

501369

Wide Field 10x Eyepieces (pair) for PZMIII

View details...


Choose Quantity
501370

501370

Wide Field 15x Eyepieces (pair) for PZMIII

View details...


Choose Quantity
501371

501371

Wide Field 20x Eyepieces (pair) for PZMIII

View details...


Choose Quantity
501372

501372

Wide Field 25x Eyepieces (pair) for PZMIII

View details...


Choose Quantity
501373

501373

0.3X Long Working Distance Objective Lens for PZMIII

View details...


Choose Quantity
501375

501375

0.5X Long Working Distance Objective Lens for PZMIII

View details...


Choose Quantity
501376

501376

0.75X Long Working Distance Objective Lens for PZMIII

View details...


Choose Quantity
501377

501377

1.5X Long Working Distance Objective Lens for PZMIII

View details...


Choose Quantity
501378

501378

2.0X Long Working Distance Objective Lens for PZMIII

View details...


Choose Quantity
501381

501381

0.5x C-Mount CCD Camera Coupler for PZMIII. Use with cameras that have 0.5 inch CCD.

View details...


Choose Quantity
504128

504128

Reticle in 10x Eyepiece (1) for PZMIII

View details...


Choose Quantity
504129

504129

Reticle in 20x Eyepiece (1) for PZMIII

View details...
