MD4R

Dual Tool-Holder Micromanipulator (right-handed)

Overview
Specifications
Accessories
Citations
Related Products

Overview

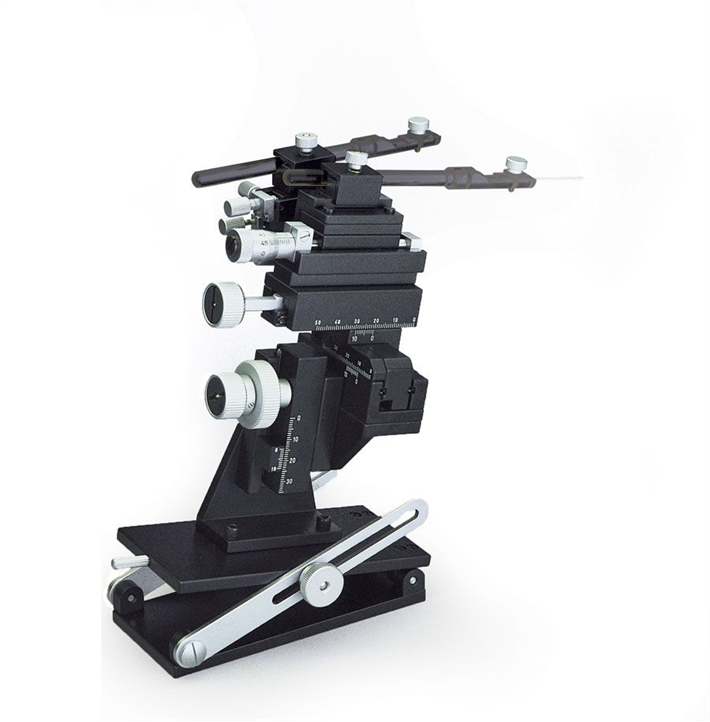

MD4R (optional tilting base M-3 not included)

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Manipulator Care
/ Download as PDF

Scales allow coarse adjustment readings with an accuracy of 100 micrometers
X-axis fine control is achieved with a micrometer screw
Tilting base not included, use the 12mm clamp to mount to a magnetic stand

Features

A small and compact micromanipulator for manual manipulation in all three axes (x, y and z), the MD4 is equipped with a mounting bracket for a second tool or electrode holder which can be positioned in the x and y axes independent of the manipulator and may also be tilted and swiveled by two fine-adjust screws. Scales allow readings of coarse adjustment with an accuracy of 100 µm. Additional x-axis fine control is achieved with a micrometer screw with a resolution of 10 µm. Supplied with TWO M3301EH electrode holder and a 12mm clamp for mounting on M10 Stand or other 12 mm supports. May also be mounted on optional M-3 Tilting Base.

Travel

Standard electrode: x-axis, 37 mm (fine, 10 mm); y-axis, 20 mm; z-axis, 25 mm. Additional electrode: x-axis, 7 mm; y-axis, 10 mm.

Specifications

Travel Range: X-axis Fine	10mm
Travel Range: X-axis	37mm
Travel Range: Y-axis	20mm
Travel Range: Z-axis	25mm
Resolution: X-axis Fine	10µm
Resolution: X-axis	100µm
Resolution: Y-axis	100µm
Resolution: Z-axis	100µm
Shipping Weight:	3 lbs. (1.4 kg)
