Perfusion Pencils
Liquid switching times in milliseconds without moving sewer pipes.
Perfusion Pencil® Multi-Barrel Manifold Tip
Rapid solution change with micro-liter dead volume
No piezo or stepper motor translation. No clumsy rotating valves.
Single-cell and patch delivery
For mounting on any micromanipulator.
Vacuum cross-contamination prevention
Use one tube to vacuum the tip volume clear between solution changes.
Solid construction
Easy to connect and clean.
Pencil Tip Cross Section
Options for 4, 8 or 16 micro-bore tubes into 1 outflow
Removable Tip
Select either 100, 250 or a 360 micron removable delivery tip. Higher flow rates or small 100 micron tip may require pressurized delivery.
100 Micron Removable Tip
Flow rates (+/- 0.05):
Gravity = 0
2 psi = 0.07 ml/min
8 psi = 0.25 ml/min
250 Micron Removable Tip
Flow rates (+/- 0.05):
Gravity = 0.35 ml/min
2 psi = 1.66 ml/min
8 psi = 5.16 ml/min

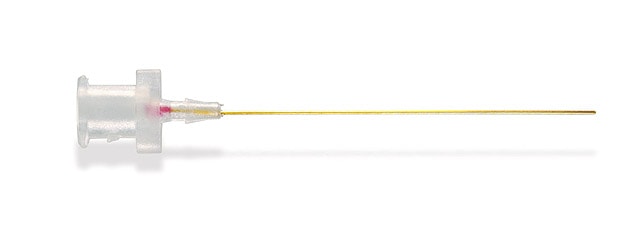

360 Micron Removable Tip
Flow rates (+/- 0.05):
Gravity = 1.15 ml/min
2 psi = 3.98 ml/min
8 psi = 10.66 ml/min
04-16-100
Perfusion Pencil® + 100µm Removable Tip [16 chan. manifold], with luer lock inflow fittings
04-16-360
Perfusion Pencil® + 360µm Removable Tip [16 chan. manifold], with luer lock inflow fittings
04-04-100
Perfusion Pencil® + 100µm Removable Tip [4 chan. manifold], with luer lock inflow fittings
04-04-250
Perfusion Pencil® + 250µm Removable Tip [4 chan. manifold], with luer lock inflow fittings
04-04-360
Perfusion Pencil® + 360µm Removable Tip [4 chan. manifold], with luer lock inflow fittings
04-08-100
Perfusion Pencil® + 100µm Removable Tip [8 chan. manifold], with luer lock inflow fittings
04-08-250
Perfusion Pencil® + 250µm Removable Tip [8 chan. manifold], with luer lock inflow fittings
04-08-360
Perfusion Pencil® + 360µm Removable Tip [8 chan. manifold], with luer lock inflow fittings
