MCJ1 Bioreactor
MechanoCulture MCJ1 – 6 specimen tension stimulation
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 4 images available to view - click to enlarge and scroll through the product gallery.
Brochure MCJ1
/ Download as PDF
Mechanoculture MCJ1 for up to 6 specimen tension stimulation
A game changer for structural tissue engineering

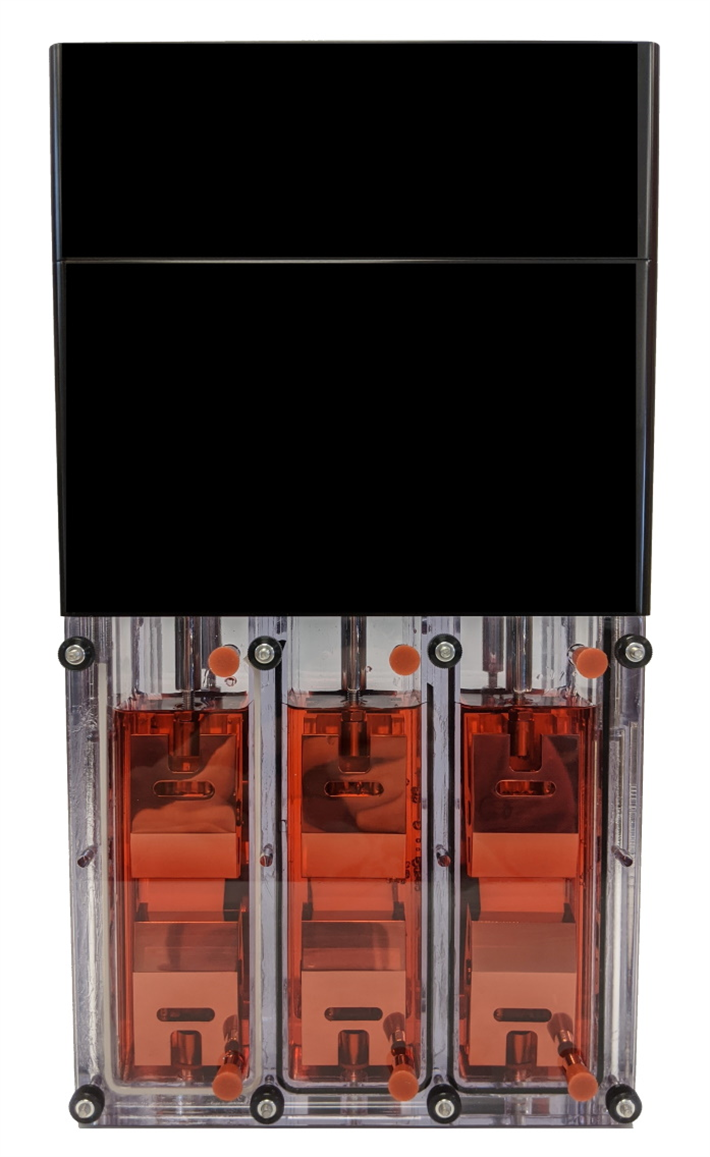

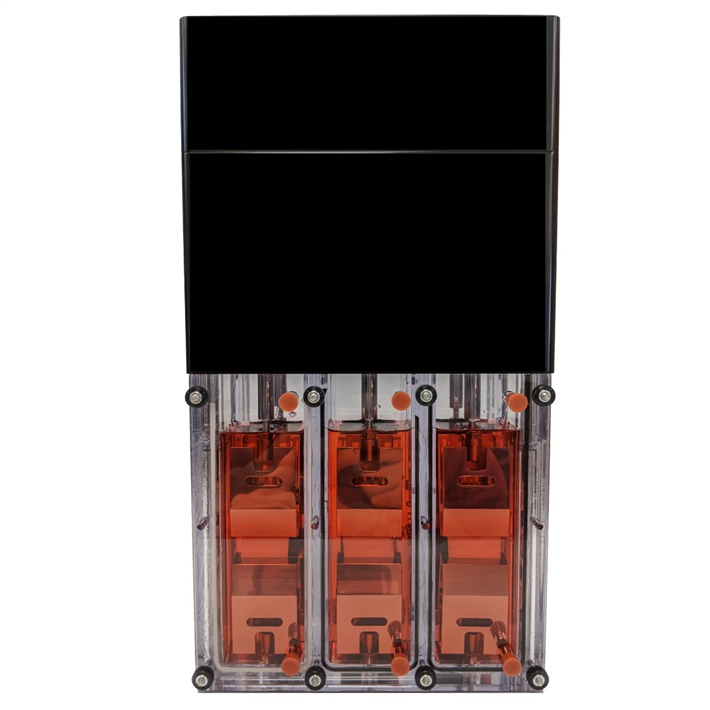

The MCJ1 Mechanoculture is capable of running 6 cyclic mechanical stimulation tests on a variety of tissues, scaffolds, and constructs. Each test chamber is equipped with it’s own actuator and force sensor running an independent test protocol. During the test, users can visually observe the specimens through the transparent chambers and measure changes in specimen stiffness. After the test, the specimens can be removed for further macro- and micro-scale analysis.
Key Features
- 6 independently-programmed test protocols
- 6 force/displacement data outputs with onboard data storage
- Load cell options: 10N, 20N, 50N, 100N
- 25mm actuator travel with grip separation up to 55mm
- Spring-closure specimen grips with adjustable gripping force
- Ports for fluid exchange in each well
- Autoclavable chambers
- Fluid-cooled incubator-compatible design
- PC-independent operation
- Software for specifying simple, cyclic, and intermittent stimulation protocols
Videos
MCJ1 Introduction
Options

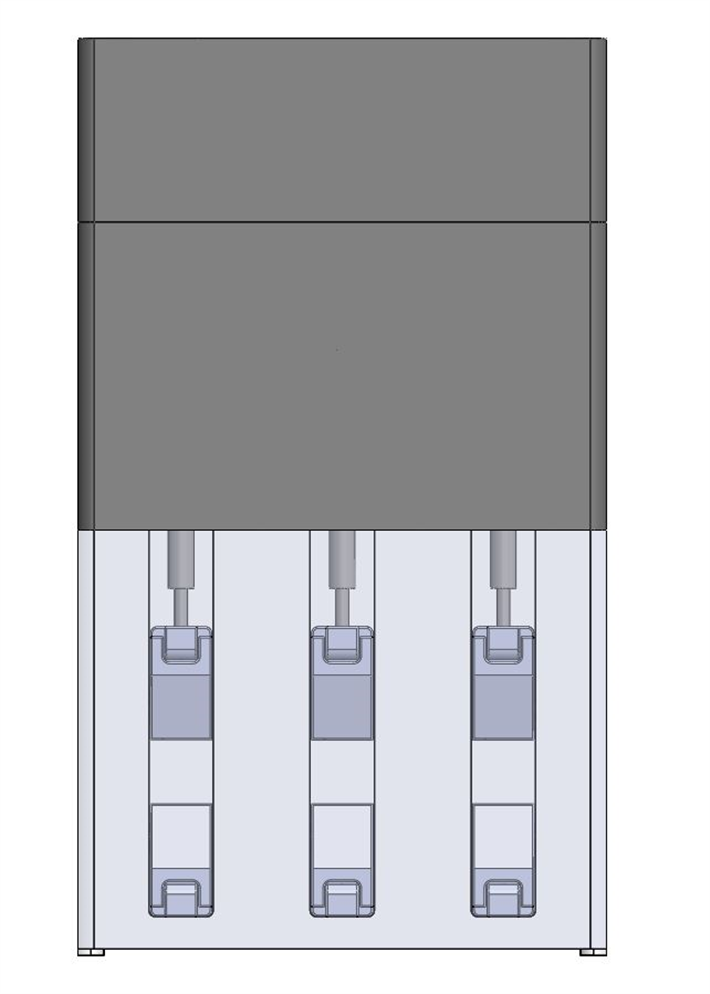

The size of culture wells can be customized to support the width and extended length of the specimens being studied. For narrow specimens, the chamber volume can be reduced to less than 20mL. For specimens up to 40mm wide with an extended length of 55mm, the chamber volume can be increased to 150mL.

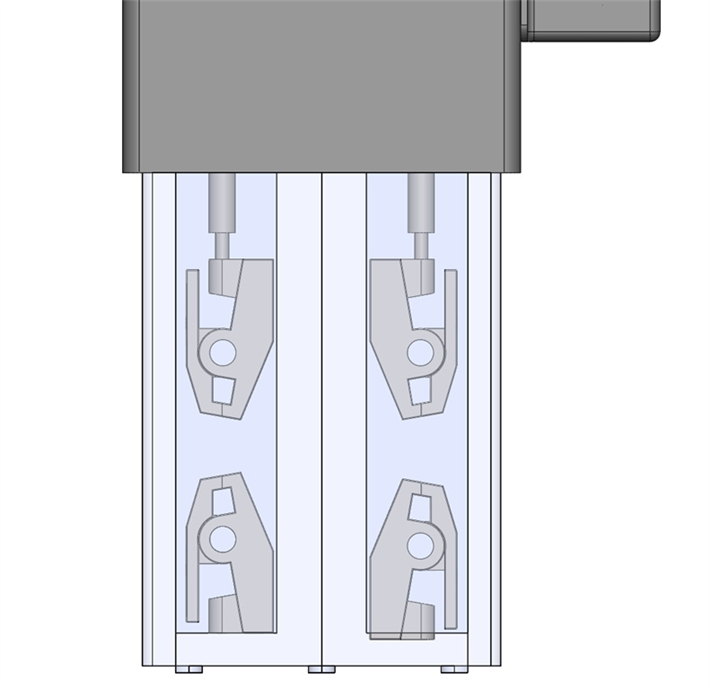

Specimen Gripping
To securely grip the specimen without causing damage, the grips must have a suitable clamping surface and apply a consistent clamping force throughout the test.
Standard specimen grips have smooth clamping surfaces with squared front and back edges. Clamps with serrated, rough, and customized gripping surfaces are also available.
For most applications, a spring-closure grip preferred to apply a repeatable clamping force that does not significantly change with specimen thickness or deformation. Grips are available with spring stiffnesses that can deliver up to 150N of clamping force. Grip springs can be changed in the field as needed to successfully test a range of specimens. Screw-closure grips are also available.
| Grip Style | L1 | M1 | S1 | S2 |
| Close Mechanism | Spring | Spring | Spring | Screw |
| Max Clamping Force (N) | 120 | 55 | 20 | 150 |
| Grip Width (mm) | 40 | 19 | 12 | 10 |
| Chamber Volume (mL) | 150 | 60 | 30 | 20 |
The chambers, grips and associated screws, seals, and other components are made from corrosion-resistant materials that can be autoclave-sterilized.
Specifications
| Dimensions | 16.5 X 11.5 X 30 cm |
| Weight | 7 kg |
| Stimulation Mode | Customizable tension |
| Number of Wells | 6 |
| Force Capacity | 100 N |
| Available Load Cells | 10, 20, 50 and 100N |
| Force Accuracy | 0.2% of load cell capacity |
| Maximum Stretch Displacement | 25.4 mm |
| Maximum Grip Seperation | 55 mm |
| Maximum Velocity | 4 mm/s |
| Maximum Cycle Frequency | 2 Hz |
