74030

Isolated, Low Noise Bioamplifer Chassis

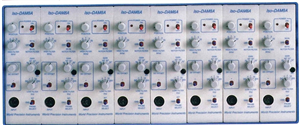

Photo illustrates a complete amplifier system and is shown with the 74030 chassis and eight ISO-DAM8A (74020) amplifier modules.

Overview
Specifications
Accessories
Citations
Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Chassis for the isolated, low noise bio-amplifer

Photo illustrates a complete amplifier system and is shown with the 74030 chassis and eight ISO-DAM8A (74020) amplifier modules. When configuring your ISDB system:

Order a chassis and power supply enclosure (the item on this page)
Select up to 8 modules (ISO-DAM8A or BRIDGE8)
Order blank panels (74050) to fill empty slots

Benefits

Chassis accepts combination of bioamplifiers and transducer amplifiers
Flexible channel count (1–8) allows expandability
Notch filter targets AC line noise sources
Variable gain output amplitude
Wide ±10V output range

Applications

Amplifying biopotentials using metal microelectrodes
Brain slice field potentials
EAG (Electroantennogram)
ERG (Electroretinogram)

The ISO-DAM8A is a compact modular standard rack-mountable DC amplifier system. Each channel is electrically isolated from the others and from ground. No current can flow from the input terminals and electrodes. The instrument is intrinsically safe and cannot cause any electrical stimulus or shock to the preparation. In addition, ground loop noise is minimized.

Filters Included with the Amplifier

Systems can be purchased with one, two, three or up to eight preamplifier modules or mixed with Bridge8 transducer amplifier modules. You can then select:

An appropriate low pass filter setting, gain and offset on the channel amplifier panel.
Notch filter added to reduce line frequency interference.
Optional headstage preamplifier (10x gain) allows low noise extracellular (DC) recording with Iso-DAM8A and adds greater signal bandwidth than a shielded cable of the same length.

The Iso-DAM8A amplifier and headstage configuration is optimally suited for use with our metal microelectrodes and can be easily configured for many applications. Each amplifier channel has a coaxial (BNC) connector located on the rear panel.

Configuring Your ISDB System

The ISDB chassis (74030) holds up to eight modules and includes a power supply. You may include any combination of BRIDGE8 Transducer Amplifier modules or ISO-DAM8A single channel modules (74020). If you choose fewer than eight modules, you need to order the ISDB blank panels (74050) to fill the empty slots in the chassis. ISO-DAM8A bioampliers include an 8-pin DIN connector with shielded, unterminated 5' cable. Please specify line voltage when ordering.

When configuring your ISDB system:

Order a chassis and power supply enclosure (74030)
Select up to 8 modules (BRIDGE8)
Order blank panels (74050) to fill empty slots
74020 is a DC amplifier

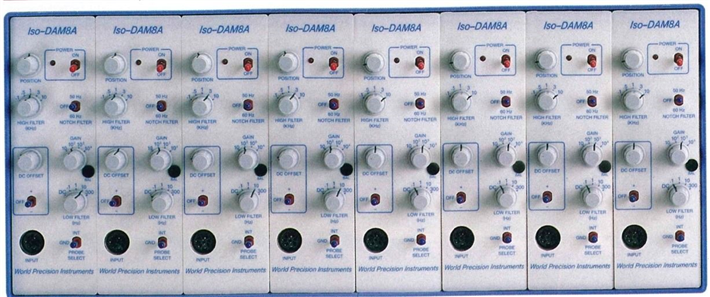

Complete eight channel amplifier system with 74030 chassis showing eight 74020 (ISODAM8A) modules installed
*Also available for BRIDGE8 transducer amplifier modules and blank panels (74050).
