Standard tip Profile

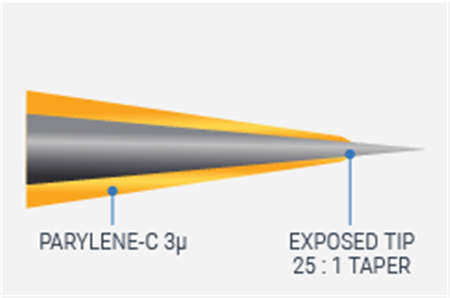

Our standard tip profile features a sharp yet robust point that offers versatile performance and an effective balance between penetration and durability.

Pt/Ir - Standard Tip - (75 µm X 2")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2003X.XA3 Assorted box	2"	0.081 mm	2-3 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2003X.XA3 Assorted box	2"	0.081 mm	2-3 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI20030.1A3	2"	0.081 mm	2-3 µm	Standard Tip	0.01 meg	MultiUnit & ERP recording & Stim.
PI20030.5A3	2"	0.081 mm	2-3 µm	Standard Tip	0.05 meg	MultiUnit & ERP recording & Stim.
PI20030.1A3	2"	0.081 mm	2-3 µm	Standard Tip	0.1 meg	MultiUnit & ERP recording & Stim.
PI20030.5A3	2"	0.081 mm	2-3 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI20031.0A3	2"	0.081 mm	1-2 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI20031.5A3	2"	0.081 mm	1-2 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI20032.0A3	2"	0.081 mm	1-2 µm	Standard Tip	2.0 meg	Greater Selectivity & Micro. Stim.
PI20032.5A3	2"	0.081 mm	1-2 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI20033.0A3	2"	0.081 mm	1-2 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells
PI20035.0A3	2"	0.081 mm	1-2 µm	Standard Tip	5.0 meg	Greater Selectivity - Small Cells

Pt/Ir - Standard Tip - with Polyimide Tubing - (75 µm X 2")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2PT3X.XA3 Assorted box	2"	0.126 mm	2-3 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2PT3X.XA3 Assorted box	2"	0.126 mm	2-3 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI2PT30.01A3	2"	0.126 mm	2-3 µm	Standard Tip	0.01 meg	MultiUnit & ERP recording & Stim.
PI2PT30.05A3	2"	0.126 mm	2-3 µm	Standard Tip	0.05 meg	MultiUnit & ERP recording & Stim.
PI2PT30.1A3	2"	0.126 mm	2-3 µm	Standard Tip	0.1 meg	MultiUnit & ERP recording & Stim.
PI2PT30.5A3	2"	0.126 mm	2-3 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI2PT31.0A3	2"	0.126 mm	1-2 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI2PT31.5A3	2"	0.126 mm	1-2 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI2PT32.0A3	2"	0.126 mm	1-2 µm	Standard Tip	2.0 meg	Greater Selectivity & Micro. Stim.
PI2PT32.5A3	2"	0.126 mm	1-2 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI2PT33.0A3	51mm	0.126 mm	1-2 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells
PI2PT35.0A3	51mm	0.126 mm	1-2 µm	Standard Tip	5.0 meg	Greater Selectivity - Small Cells

Pt/Ir - Standard Tip - (125 µm X 2")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2003X.XA5 Assorted box	2"	0.127 mm	2-3 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2003X.XA5 Assorted box	2"	0.127 mm	2-3 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI20030.01A5	2"	0.127 mm	2-3 µm	Standard Tip	0.01 meg	Multiunit & ERP rec. and stim.
PI20030.05A5	2"	0.127 mm	2-3 µm	Standard Tip	0.05 meg	Multiunit & ERP rec. and stim.
PI20030.1A5	2"	0.127 mm	2-3 µm	Standard Tip	0.1 meg	Multiunit & ERP rec. and stim.
PI20030.5A5	2"	0.127 mm	2-3 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI20031.0A5	2"	0.127 mm	2-3 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI20031.5A5	2"	0.127 mm	2-3 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI20032.0A5	2"	0.127 mm	2-3 µm	Standard Tip	2.0 meg	Greater Selectivity & Micro. Stim.
PI20032.5A5	2"	0.127 mm	2-3 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI20033.0A5	2"	0.127 mm	2-3 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells
PI20035.0A5	2"	0.127 mm	2-3 µm	Standard Tip	5.0 meg	Greater Selectivity - Small Cells

Pt/Ir - Standard Tip - (125 µm X 3") Pt/Ir - Standard Tip - with Polyimide Tubing - (125 µm X 2")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2PT3X.XA5 Assorted box	2"	0.216 mm	2-3 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2PT3X.XA5 Assorted box	2"	0.216 mm	2-3 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI2PT30.01A5	2"	0.216 mm	2-3 µm	Standard Tip	0.01 meg	Multiunit & ERP rec. and stim.
PI2PT30.05A5	2"	0.216 mm	2-3 µm	Standard Tip	0.05 meg	Multiunit & ERP rec. and stim.
PI2PT30.1A5	2"	0.216 mm	2-3 µm	Standard Tip	0.1 meg	Multiunit & ERP rec. and stim.
PI2PT30.5A5	2"	0.216 mm	2-3 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI2PT31.0A5	2"	0.216 mm	2-3 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI2PT31.5A5	2"	0.216 mm	2-3 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI2PT32.0A5	2"	0.216 mm	2-3 µm	Standard Tip	2.0 meg	Greater Selectivity & Micro. Stim.
PI2PT32.5A5	2"	0.216 mm	2-3 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI2PT33.0A5	2"	0.216 mm	2-3 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells
PI2PT35.0A5	2"	0.216 mm	2-3 µm	Standard Tip	5.0 meg	Greater Selectivity - Small Cells

Pt/Ir - Standard Tip - (125 µm X 3")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2003X.XA5 Assorted box	3"	0.127 mm	1-2 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2003X.XA5 Assorted box	3"	0.127 mm	1-2 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI30030.01A5	3"	0.127 mm	1-2 µm	Standard Tip	0.01 meg	Multiunit & ERP rec. and stim.
PI30030.050A5	3"	0.127 mm	1-2 µm	Standard Tip	0.05 meg	Multiunit & ERP rec. and stim.
PI30030.1A5	3"	0.127 mm	1-2 µm	Standard Tip	0.1 meg	Multiunit & ERP rec. and stim.
PI30030.5A5	3"	0.127 mm	1-2 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI30031.0A5	3"	0.127 mm	1 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI30031.5A5	3"	0.127 mm	1 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI30032.0A5	3"	0.127 mm	1 µm	Standard Tip	2.0 meg	Single & multiunit rec. & stim.
PI30032.5A5	3"	0.127 mm	1 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI30033.0A5	3"	0.127 mm	1 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells
PI30033.0A5	76mm	0.127 mm	1 µm	Standard Tip	5.0 meg	Greater Selectivity - Small Cells

Pt/Ir - Standard Tip - with Polyimide Tubing - (75 µm X 2")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2PT3X.XA5 Assorted box	3"	0.216 mm	1-2 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2PT3X.XA5 Assorted box	3"	0.216 mm	1-2 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI3PT30.01A5	3"	0.216 mm	1-2 µm	Standard Tip	0.01 meg	Multiunit & ERP rec. and stim.
PI3PT30.05A5	3"	0.216 mm	1-2 µm	Standard Tip	0.05 meg	Multiunit & ERP rec. and stim.
PI3PT30.1A5	3"	0.216 mm	1-2 µm	Standard Tip	0.1 meg	Multiunit & ERP rec. and stim.
PI3PT30.5A5	3"	0.216 mm	1-2 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI3PT31.0A5	3"	0.216 mm	1 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI3PT31.5A5	3"	0.216 mm	1 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI3PT32.0A5	3"	0.216 mm	1 µm	Standard Tip	2.0 meg	Greater Selectivity & Micro. Stim.
PI3PT32.5A5	3"	0.216 mm	1 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI3PT33.0A5	3"	0.216 mm	1 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells
PI3PT35.0A5	3"	0.216 mm	1 µm	Standard Tip	5.0 meg	Greater Selectivity - Small Cells

Pt/Ir - Standard Tip - (225 µm X 2")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2003X.XA10 Assorted box	2"	0.231 mm	2-3 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2003X.XA10 Assorted box	2"	0.231 mm	2-3 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI20030.01A10	2"	0.231 mm	2-3 µm	Standard Tip	0.01 meg	MultiUnit & ERP recording & Stim.
PI20030.05A10	2"	0.231 mm	2-3 µm	Standard Tip	0.05 meg	MultiUnit & ERP recording & Stim.
PI20030.1A10	2"	0.231 mm	2-3 µm	Standard Tip	0.1 meg	MultiUnit & ERP recording & Stim.
PI20030.5A10	2"	0.231 mm	2-3 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI20031.0A10	2"	0.231 mm	1-2 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI20031.5A10	2"	0.231 mm	1-2 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI20032.0A10	2"	0.231 mm	1-2 µm	Standard Tip	2.0 meg	Greater Selectivity & Micro. Stim.
PI20032.5A10	2"	0.231 mm	1-2 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI20033.0A10	2"	0.231 mm	1-2 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells

Pt/Ir - Standard Tip - with Polyimide Tubing - (225 µm X 2")

ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (m?)	Applications
PI2PT3X.XA10 Assorted box	2"	0.370 mm	1-2 µm	Standard Tip	0.01 to 0.1 meg	General purpose stimulation
PI2PT3X.XA10 Assorted box	2"	0.370 mm	1-2 µm	Standard Tip	0.1 to 2 meg assorted	General purpose recording
PI2PT30.01A10	2"	0.370 mm	2-3 µm	Standard Tip	0.01 meg	MultiUnit & ERP recording & Stim.
PI2PT30.05A10	2"	0.370 mm	2-3 µm	Standard Tip	0.05 meg	MultiUnit & ERP recording & Stim.
PI2PT30.1A10	2"	0.370 mm	2-3 µm	Standard Tip	0.1 meg	MultiUnit & ERP recording & Stim.
PI2PT30.5A10	2"	0.370 mm	2-3 µm	Standard Tip	0.5 meg	Single & multiunit rec. & stim.
PI2PT31.0A10	2"	0.370 mm	1-2 µm	Standard Tip	1.0 meg	Single & multiunit rec. & stim.
PI2PT31.5A10	2"	0.370 mm	1-2 µm	Standard Tip	1.5 meg	Single & multiunit rec. & stim.
PI2PT32.0A10	2"	0.370 mm	1-2 µm	Standard Tip	2.0 meg	Greater Selectivity & Micro. Stim.
PI2PT32.5A10	2"	0.370 mm	1-2 µm	Standard Tip	2.5 meg	Greater Selectivity - Small Cells
PI2PT33.0A10	2"	0.370 mm	1-2 µm	Standard Tip	3.0 meg	Greater Selectivity - Small Cells
