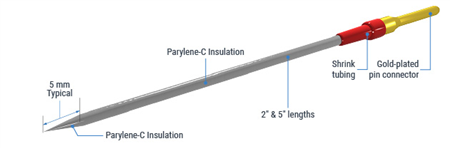

Macro Electrodes

The larger diameter Macro Electrodes are available in Platinum/Iridium and Tungsten.

• The Platinum/Iridium models have a shank diameter of 231 µm, and the Tungsten shank diameter is 256 µm.
• They have very large tip exposure with tip impedance values between 2.5 to 20 k?.
• Are excellent for stimulation and making lesions.
• Larger tip exposures can be specified for electroporation studies as a custom option





Macro Electrodes - Tungsten
ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (MΩ)	Metal Type
LF301G	3"	0.256 mm	3-4 µm	Standard Tip	10.0 meg	Tungsten
LF501G	5"	0.256 mm	3-4 µm	Standard Tip	10.0 meg	Tungsten



Macro Electrodes - Stainless Steel
ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (MΩ)	Metal Type
MS301G	3"	0.256 mm	3-4 µm	Standard Tip	15.0 meg	Stainless Steel
MS501G	5"	0.256 mm	3-4 µm	Standard Tip	15.0 meg	Stainless Steel



Macro Electrodes - Platinum/Iridium
ITEM	Length	Shaft Diameter	Tip Diameter (µm)	Tip Profile	Impedance (MΩ)	Metal Type
PI201G	2"	0.256 mm	3-4 µm	Standard Tip	7.0 meg	Platinum/Iridium
