CEAX-200

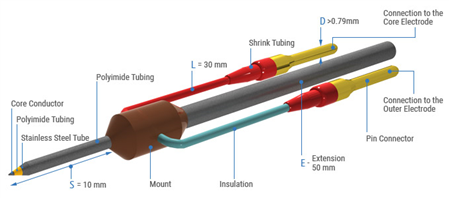

The CEAX-200 features the same tip as our CEA-200 probe, but in a form factor appropriate for chronic implantation. The CEAX-200 has a much shorter length and includes a rigid removable extension rod that can be easily gripped and then clipped off after the headcap is hardened to create a low-profile implant.
As in the CEA-200, many features are fully customizable by special order, including shaft length, flexible wire lengths, connector types, extension rod length, and other features.
Tip Specifications
Contact us for your custom configuration
1.png)
PICEAX10-200
CEAX-200 tapered concentric electrode
- Length S: 10 mm
- Dimensions: W 695 µm, X 300 µm, Y <400 µm
- Tip Diameter: 3-5 µm
- Tip Profile: Standard
- Outer Polymide: Yes
- Extension: 50 mm
1.png)
PICEAX3-200
CEAX-200 tapered concentric electrode
- Length S: 10 mm
- Dimensions: W 400 µm, X 126 µm, Y <300 µm
- Tip Diameter: 2-3 µm
- Tip Profile: Standard
- Outer Polymide: Yes
- Extension: 50 mm
1.png)
PICEAX5-200
CEAX-200 tapered concentric electrode
- Length S: 10 mm
- Dimensions: W 505 µm, X 218 µm, Y <300 µm
- Tip Diameter: 2-3 µm
- Tip Profile: Standard
- Outer Polymide: Yes
- Extension: 50 mm
1.png)
SSCEAX4-200
CEAX-200 tapered concentric electrode
- Length S: 10 mm
- Dimensions: W 400 µm, X 126 µm, Y <300 µm
- Tip Diameter: 2-3 µm
- Tip Profile: Standard
- Outer Polymide: Yes
- Extension: 50 mm
1.png)
WECEAX3-200
CEAX-200 tapered concentric electrode
- Length S: 10 mm
- Dimensions: W 400 µm, X 126 µm, Y <300 µm
- Tip Diameter: 2-3 µm
- Tip Profile: Standard
- Outer Polymide: Yes
- Extension: 50 mm
1.png)
WECEAX5-200
CEAX-200 tapered concentric electrode
- Length S: 10 mm
- Dimensions: W 505 µm, X 126 µm, Y <300 µm
- Tip Diameter: 2-3 µm
- Tip Profile: Standard
- Outer Polymide: Yes
- Extension: 50 mm
