CEA-200

CEA-200

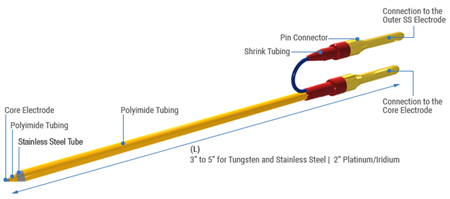

The CEA-200 tapered concentric electrode is ideal for localized stimulation or population recording in fixed preparations or acute animal experiments. They feature a long, fixed shaft that allows for easy gripping and manipulation, and a sharp durable tip capable of penetrating tough tissue.

Many features are fully customizable by special order, including shaft length, flexible wire length, connector type, and other features. Contact us to learn how our engineers can prepare an electrode ideal for your research.


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

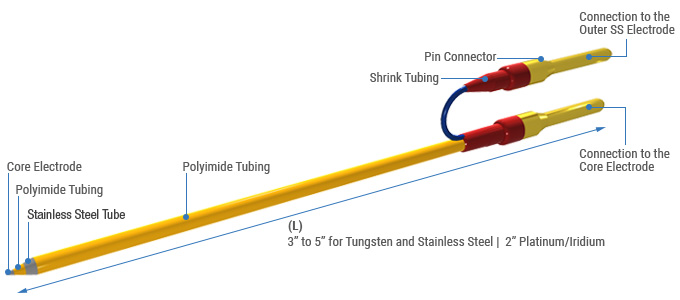

The CEA-200 tapered concentric electrode is ideal for localized stimulation or population recording in fixed preparations or acute animal experiments. They feature a long, fixed shaft that allows for easy gripping and manipulation, and a sharp durable tip capable of penetrating tough tissue.

Many features are fully customizable by special order, including shaft length, flexible wire length, connector type, and other features. Contact us to learn how our engineers can prepare an electrode ideal for your research.

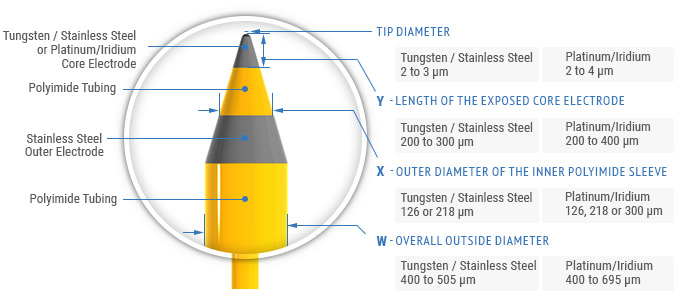

Tip Specifications


Tungsten CEA-200
ITEM Length (L) W (µm) X (µm) Y (µm) Tip Diameter (µm) Tip Profile Outer Polyimide
WE3CEA3-200 3" 400 126 <300 2-3 Standard Yes
WE3CEA5-200 3" 505 218 <300 2-3 Standard Yes
WE5CEA5-200 5" 505 218 <300 2-3 Standard Yes
Stainless Steel CEA-200
ITEM Length (L) W (µm) X (µm) Y (µm) Tip Diameter (µm) Tip Profile Outer Polyimide
SS3CEA4-200 3" 410 140 <300 2-3 Standard Yes
SS5CEA4-200 5" 410 140 <300 2-3 Standard Yes
Platinum Iridium CEA-200
ITEM Length (L) W (µm) X (µm) Y (µm) Tip Diameter (µm) Tip Profile Outer Polyimide
PI2CEA3-200 2" 400 126 <300 2-3 Standard Yes
PI2CEA5-200 2" 505 218 <300 2-3 Standard Yes
PI2CEA10-200 2" 695 300 <400 3-4 Standard Yes


Contact us for your custom configuration
