CEA-200-SS

CEA-200-SS

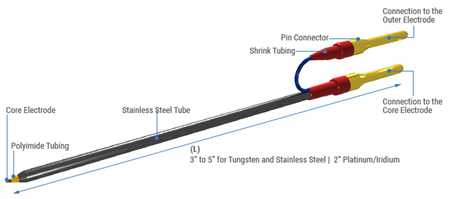

The CEA-200-SS Concentric electrodes with exposed metal shield are excellent for shield macro recording of a large number of neural elements, nerves or neurons, simultaneously; as opposed to single unit recording that intended to record from one or just a few neural elements. The CEA-200-SS is ideal for chronic implantation.

Compared to the stepped "Rhodes" style tips of our NE and SNE Concentric models, the tips our CEA models are precision-ground to a sharp point.

CEA-200-SS


Tip Specifications

CEA-200-SS Tip

Tungsten CEA-200-SS
ITEM Length (L) W (µm) X (µm) Y (µm) Tip Diameter (µm) Tip Profile Outer Polyimide
WE3CEA3-200-SS 3" 350 126 <300 2-3 Standard Yes
WE3CEA5-200-SS 3" 450 218 <300 2-3 Standard Yes
WE5CEA5-200-SS 5" 450 218 <300 2-3 Standard Yes
Stainless Steel CEA-200-SS
ITEM Length (L) W (µm) X (µm) Y (µm) Tip Diameter (µm) Tip Profile Outer Polyimide
SS3CEA4-200-SS 3" 350 140 <300 2-3 Standard Yes
SS5CEA4-200-SS 5" 350 140 <300 2-3 Standard Yes
Platinum Iridium CEA-200-SS
ITEM Length (L) W (µm) X (µm) Y (µm) Tip Diameter (µm) Tip Profile Outer Polyimide
PI2CEA3-200-SS 2" 350 126 <400 2-3 Standard Yes
PI2CEA5-200-SS 2" 450 218 <400 2-3 Standard Yes
PI2CEA10-200-SS 2" 630 300 <400 3-4 Standard Yes


Contact us for your custom configuration


Choose Quantity
PI2CEA10-200-SS

PI2CEA10-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 2"
  • Dimensions: W 630 µm, X 300 µm, Y <400 µm
  • Tip Diameter: 3-4 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes


Choose Quantity
PI2CEA3-200-SS

PI2CEA3-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 2"
  • Dimensions: W 350 µm, X 126 µm, Y <400 µm
  • Tip Diameter: 2-3 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes


Choose Quantity
PI2CEA5-200-SS

PI2CEA5-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 2"
  • Dimensions: W 450 µm, X 218 µm, Y <400 µm
  • Tip Diameter: 2-3 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes


Choose Quantity
SS3CEA4-200-SS

SS3CEA4-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 3"
  • Dimensions: W 350 µm, X 140 µm, Y <300 µm
  • Tip Diameter: 2-3 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes


Choose Quantity
SS5CEA4-200-SS

SS5CEA4-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 5"
  • Dimensions: W 350 µm, X 140 µm, Y <300 µm
  • Tip Diameter: 2-3 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes


Choose Quantity
WE3CEA3-200-SS

WE3CEA3-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 3"
  • Dimensions: W 350 µm, X 126 µm, Y <300 µm
  • Tip Diameter: 2-3 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes


Choose Quantity
WE3CEA5-200-SS

WE3CEA5-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 3"
  • Dimensions: W 450 µm, X 218 µm, Y <300 µm
  • Tip Diameter: 2-3 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes


Choose Quantity
WE5CEA5-200-SS

WE5CEA5-200-SS

 CEA-200-SS tapered concentric electrode

  • Length: 5"
  • Dimensions: W 450 µm, X 218 µm, Y <300 µm
  • Tip Diameter: 2-3 µm
  • Tip Profile: Standard
  • Outer Polymide: Yes
