SNEX-100

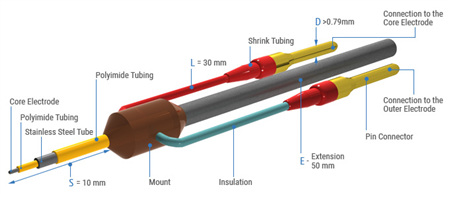

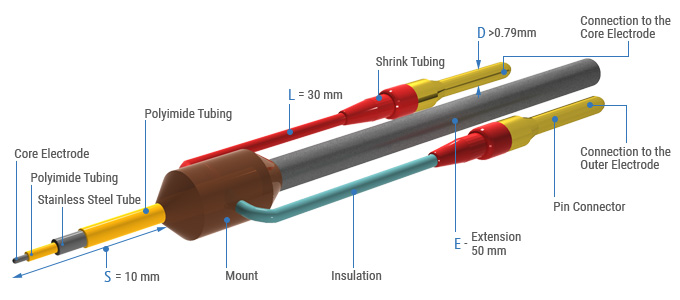

The SNEX-100 is designed to replicate the Peter Rhodes-produced SNEX-100 concentric, and features the same length, thickness, and tip dimensions. The SNEX-100 features the same tip as our SNE-100 probe, but in a form factor appropriate for chronic implantation. The SNEX-100 has a much shorter length and includes a rigid removable extension rod that can be easily gripped and then clipped off after the headcap is hardened to create a low-profile implant. Featuring a shaft diameter considerably thinner than the NEX-100, the SNEX-100 is ideal for chronic implantation into targets where implant size is a critical concern.
As in the SNE-100, many features are fully customizable by special order, including shaft length, flexible wire lengths, connector types, extension rod length, and other features.
Tip Specifications
| Stainless Steel SNEX-100 Concentric Bipolar Electrodes with Extension |
||||||||
|---|---|---|---|---|---|---|---|---|
| ITEM | S (mm) | Z (µm) | X (µm) | Y (µm) | Tip Diameter (µm) | Tip Profile | Outer Polyimide | E (mm) |
| SS-SNEX-100 | 10 | 411 | 140 | 250 | 100 | Rhodes | Yes | 50 |
Contact us for your custom configuration
PI-SNEX-100
PI-SNEX-100 rhodes concentric electrode
- Length S: 10 mm
- Dimensions: Z 411 µm, X 140 µm, Y <250 µm
- Tip Diameter: 100 µm
- Tip Profile: Rhodes
- Outer Polymide: Yes
- Extension: 50 mm
SS-SNEX-100
SS-SNEX-100 rhodes concentric electrode
- Length S: 10 mm
- Dimensions: Z 411 µm, X 140 µm, Y <250 µm
- Tip Diameter: 100 µm
- Tip Profile: Rhodes
- Outer Polymide: Yes
- Extension: 50 mm
