NEX-100
The NEX-100 features the same tip as our NE-100 probe, but in a form factor appropriate for chronic implantation.

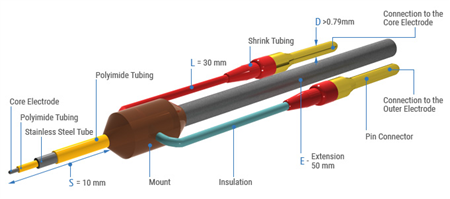

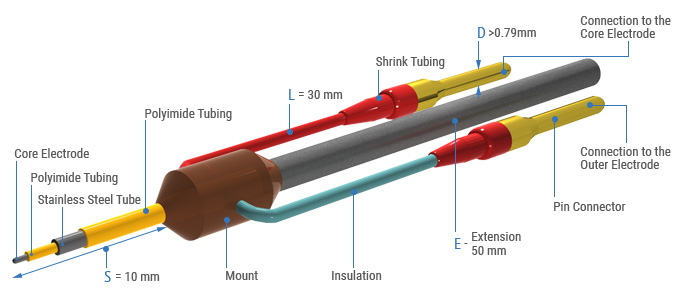

The NEX-100 is designed to replicate the Peter Rhodes-produced NEX-100 concentric, and features the same length, thickness, and tip dimensions. The NEX-100 features the same tip as our NE-100 probe, but in a form factor appropriate for chronic implantation. The NEX-100 has a much shorter length and includes a rigid removable extension rod that can be easily gripped and then clipped off after the headcap is hardened to create a low-profile implant.
As in the NE-100, many features are fully customizable by special order, including shaft length, flexible wire lengths, connector types, extension rod length, and other features.
Tip Specifications
Contact us for your custom configuration
PI-NEX-100
PI-NEX-100 rhodes concentric electrode
- Length S: 80 mm
- Dimensions: Z 625 µm, X 305 µm, Y <500 µm
- Tip Diameter: 225 µm
- Tip Profile: Rhodes
- Outer Polymide: Yes
- Extension: 50 mm
SS-NEX-100
SS-NEX-100 rhodes concentric electrode
- Length S: 10 mm
- Dimensions: Z 625 µm, X 305 µm, Y <500 µm
- Tip Diameter: 225 µm
- Tip Profile: Rhodes
- Outer Polymide: Yes
- Extension: 50 mm
