NE-100

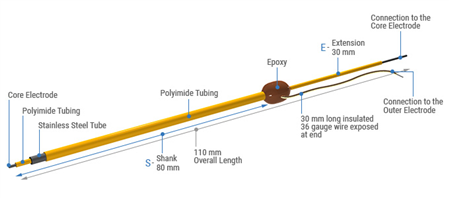

The NE-100 is designed to replicate the Peter Rhodes-produced NE-100 concentric, and features the same length, thickness, and tip dimensions. These probes feature a stepped tip with well-defined element lengths, allowing surface area to be easily determined for charge density calculations. As in the CEA-200, the NE-100 is ideal for localized stimulation or population recording in fixed preparations for acute animal experiments.
Many features are fully customizable by special order, including shaft length, flexible wire length, connector type, and other features. Contact us to learn how our engineers can prepare an electrode ideal for your research.
Tip Specifications
| Stainless Steel NE-100 | ||||||||
|---|---|---|---|---|---|---|---|---|
| ITEM | S (mm) | Z (µm) | X (µm) | Y (µm) | Tip Diameter (µm) | Tip Profile | Outer Polyimide | E (mm) |
| SS-NE-100 | 80 | 625 | 305 | 500 | 225 | Rhodes | Yes | 30 |
Contact us for your custom configuration
PI-NE-100
PI-NE-100 rhodes concentric electrode
- Length S: 80 mm
- Dimensions: Z 625 µm, X 305 µm, Y <500 µm
- Tip Diameter: 225 µm
- Tip Profile: Rhodes
- Outer Polymide: Yes
- Extension: 30 mm
SS-NE-100
SS-NE-100 rhodes concentric electrode
- Length S: 80 mm
- Dimensions: Z 625 µm, X 305 µm, Y <500 µm
- Tip Diameter: 225 µm
- Tip Profile: Rhodes
- Outer Polymide: Yes
- Extension: 30 mm
