Extra Fine Tip

Extra Fine Tip

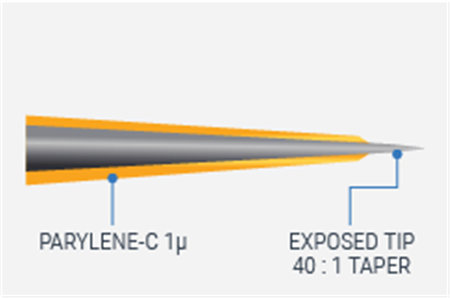

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.





Stereotrodes - Tungsten - Extra Fine Tip (75 µm X 3")

ITEMLengthOutside DiameterTip SeparationTip ProfileImpedance (MΩ)Applications
WE3ST10.1F33"0.216 mm75 µmExtra Fine0.1 megMultiunit & ERP recording & stim.
WE3ST10.5F33"0.216 mm75 µmExtra Fine0.5 megSingle & multiunit rec. & stim.
WE3ST11.0F33"0.216 mm75 µmExtra Fine1.0 megSingle & multiunit rec. & stim.
WE3ST11.5F33"0.216 mm75 µmExtra Fine1.5 megSingle & multiunit rec. & stim.
WE3ST12.0F33"0.216 mm75 µmExtra Fine2.0 megGreater selectivity & micro. stim.
WE3ST12.5F33"0.216 mm75 µmExtra Fine2.5 megGreater selectivity & micro. stim.
WE3ST13.0F33"0.216 mm75 µmExtra Fine3.0 megGreater selectivity & micro. stim.
WE3ST15.0F33"0.216 mm75 µmExtra Fine5.0 megSmall Cell Recording





Stereotrodes - Tungsten - Extra Fine Tip (125 µm X 3")

ITEMLengthOutside DiameterTip SeparationTip ProfileImpedance (MΩ)Applications
WE3ST10.1F53"0.356 mm125 µmExtra Fine0.1 megMultiunit & ERP recording & stim.
WE3ST10.5F53"0.356 mm125 µmExtra Fine0.5 megSingle & multiunit rec. & stim.
WE3ST11.0F53"0.356 mm125 µmExtra Fine1.0 megSingle & multiunit rec. & stim.
WE3ST11.5F53"0.356 mm125 µmExtra Fine1.5 megSingle & multiunit rec. & stim.
WE3ST12.0F53"0.356 mm125 µmExtra Fine2.0 megGreater selectivity & micro. stim.
WE3ST12.5F53"0.356 mm125 µmExtra Fine2.5 megGreater selectivity & micro. stim.
WE3ST13.0F53"0.356 mm125 µmExtra Fine3.0 megGreater selectivity & micro. stim.
WE3ST15.0F53"0.356 mm125 µmExtra Fine5.0 megSmall Cell Recording


Choose Quantity
WE3ST10.1F3

WE3ST10.1F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 0.1 meg
  • Applications: MultiUnit & ERP recording & Stim.


Choose Quantity
WE3ST10.1F5

WE3ST10.1F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 0.1 meg
  • Applications: Multiunit & ERP recording & stim.


Choose Quantity
WE3ST10.5F3

WE3ST10.5F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 0.5 meg
  • Applications: Single & multiunit rec. & stim.


Choose Quantity
WE3ST10.5F5

WE3ST10.5F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 0.5 meg
  • Applications: Single & multiunit rec. & stim.


Choose Quantity
WE3ST11.0F3

WE3ST11.0F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 1.0 meg
  • Applications: Single & multiunit rec. & stim.


Choose Quantity
WE3ST11.0F5

WE3ST11.0F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 1.0 meg
  • Applications: Single & multiunit rec. & stim.


Choose Quantity
WE3ST11.5F3

WE3ST11.5F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 1.5 meg
  • Applications: Single & multiunit rec. & stim.


Choose Quantity
WE3ST11.5F5

WE3ST11.5F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 1.5 meg
  • Applications: Single & multiunit rec. & stim.


Choose Quantity
WE3ST12.0F3

WE3ST12.0F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 2.0 meg
  • Applications: Greater selectivity & micro. stim.


Choose Quantity
WE3ST12.0F5

WE3ST12.0F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 2.0 meg
  • Applications: Greater selectivity & micro. stim.


Choose Quantity
WE3ST12.5F3

WE3ST12.5F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 2.5 meg
  • Applications: Greater selectivity & micro. stim.


Choose Quantity
WE3ST12.5F5

WE3ST12.5F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 2.5 meg
  • Applications: Greater selectivity & micro. stim.


Choose Quantity
WE3ST13.0F3

WE3ST13.0F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 3.0 meg
  • Applications: Greater selectivity & micro. stim.


Choose Quantity
WE3ST13.0F5

WE3ST13.0F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 3.0 meg
  • Applications: Greater selectivity & micro. stim.


Choose Quantity
WE3ST15.0F3

WE3ST15.0F3

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.216 mm
  • Tip Separation: 75 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 5.0 meg
  • Applications: Greater selectivity & micro. stim.


Choose Quantity
WE3ST15.0F5

WE3ST15.0F5

Our extra-fine tip profile features a significantly sharper taper as well as a thinner insulation layer.

  • Length: 3"
  • Outside Diameter: 0.356 mm
  • Tip Separation: 125 µm
  • Tip Profile: Extra Fine
  • Impedance (MΩ): 5.0 meg
  • Applications: Small Cell Recording
