A Comparative Time Study Of The EVOM™ Auto Versus The REMS

A Comparative Time Study Of The EVOM™ Auto Versus The REMS

World Precision Instruments' (WPI) legacy Robotic Epithelial Measurement System (REMS) and the new advanced, upgraded version of REMS, EVOM™ Auto, are high-throughput, automated transepithelial/transendothelial electrical resistance (TEER) measurement systems. These robotic systems, combined with EVOM™ technology, expedite TEER measurements.

A 96-well plate can be read within a few minutes using an automated TEER measurement system versus using a manual TEER measurement system, which can take up to 90 minutes to read a single 96-well plate. Manual systems require a user to move the electrode from one well to another and perform the rinsing in between, if needed. (Rinsing of the electrode while reading through a number of samples helps to prevent sample cross-contamination.) As automated systems measurements and rinsing are controlled by robotics, manual handling time is eliminated. Additionally, automated systems offer better measurement accuracy, due to the elimination of human errors associated with electrode handling.

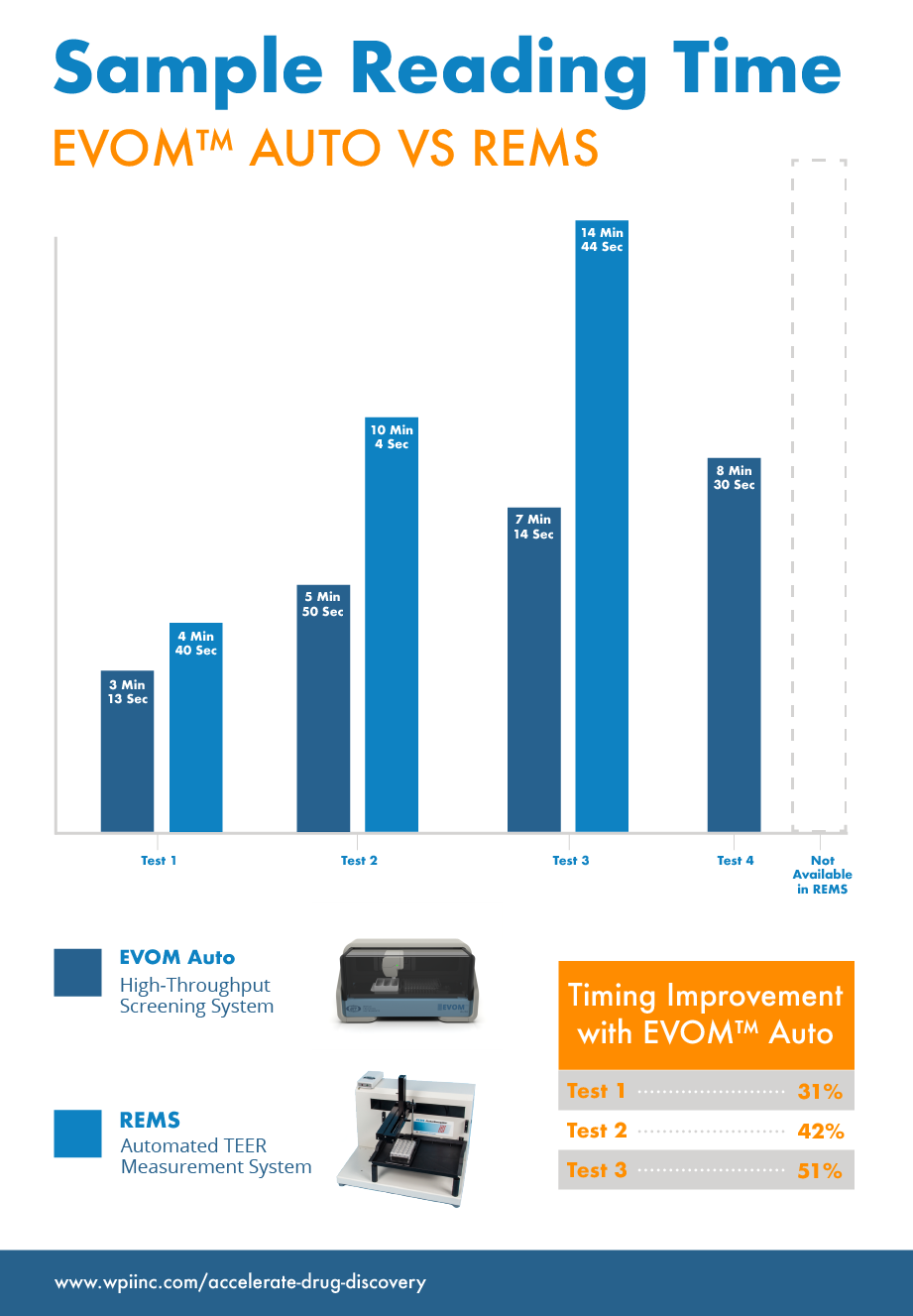

When comparing the EVOM™ Auto with the REMS system in efficiencies, the EVOM™ Auto comes with an array of eight electrodes versus the REMS single electrode. The table below shows the times savings you can achieve when using the new EVOM™ Auto versus the REMS system.

comparison chartRun Time with No Rinsing (Test 1)

To read a 96-well plate with no rinsing between samples, a REMS takes  4.67 minutes, and an EVOM™ Auto only 3.22 minutes.* EVOM™ Auto improves measurement timing 31% over REMS when no rinse option is used.

Run Time with 1 and 2 Electrode Rinses (Tests 2 & 3)

Similarly, when the electrodes are rinsed once or twice, the REMS takes 10.07 minutes and 14.73 minutes, respectively. The EVOM™ Auto takes 5.83 minutes and 7.23 minutes, respectively, to execute the same protocol.* When compared with the REMS, EVOM™ Auto offers 42% quicker sampling with the one rinse station option (Test 2) and 51% with a two rinse station option (Test 3).

Run Time with 3 Electrode Rinses (Tests 4)

When running a protocol with three rinse stations between measurements, EVOM™ Auto takes 8.5 minutes.* REMS only offers two rinse stations and could not be compared in this trial.

Multiple rinse option is desirable to disinfect the electrode in one station after reading a sample, and then using the other stations to stabilize and equilibrate the electrode before measuring the next sample. Overall, EVOM™ Auto offers significantly improved timing and rinsing options for a better TEER measurement experience in HTS platforms.

*All sample readings and rinse well dips were 1 second in duration.



 Download the Paper - A Comparative Time Study Of The EVOM™ Auto Versus The REMS






Choose Quantity
EVA-MT-03-01

EVA-MT-03-01

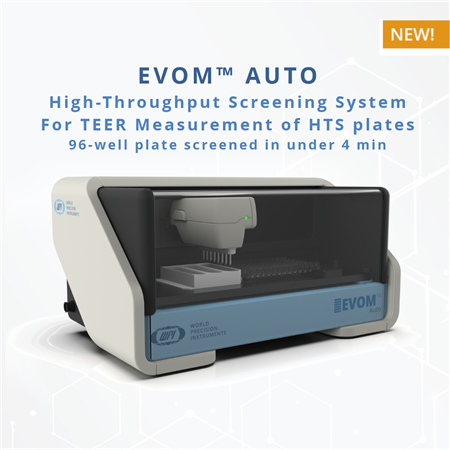

EVOM Auto For TEER Measurement in 96 HTS Plate

System includes:

  • EVOM™ Auto (TEER Measurement System includes the Autosampler
  • HTS Electrode Array for 96 HTS Plates
  • Interface Unit and Cable
  • Control iPad with software


Choose Quantity
EVA-MT-03-02

EVA-MT-03-02

EVOM Auto For TEER Measurement in Corning 24 HTS Plates

System includes:

  • EVOM™ Auto (TEER Measurement System includes the Autosampler
  • HTS Electrode Array for Corning 24 HTS Plates
  • Interface Unit and Cable
  • Control iPad with software


Choose Quantity
EVA-MT-03-03

EVA-MT-03-03

EVOM Auto For TEER Measurement in Millipore 24 HTS Plates

System includes:

  • EVOM™ Auto (TEER Measurement System includes the Autosampler
  • HTS Electrode Array for Millipore 24 HTS Plates
  • Interface Unit and Cable
  • Control iPad with software
