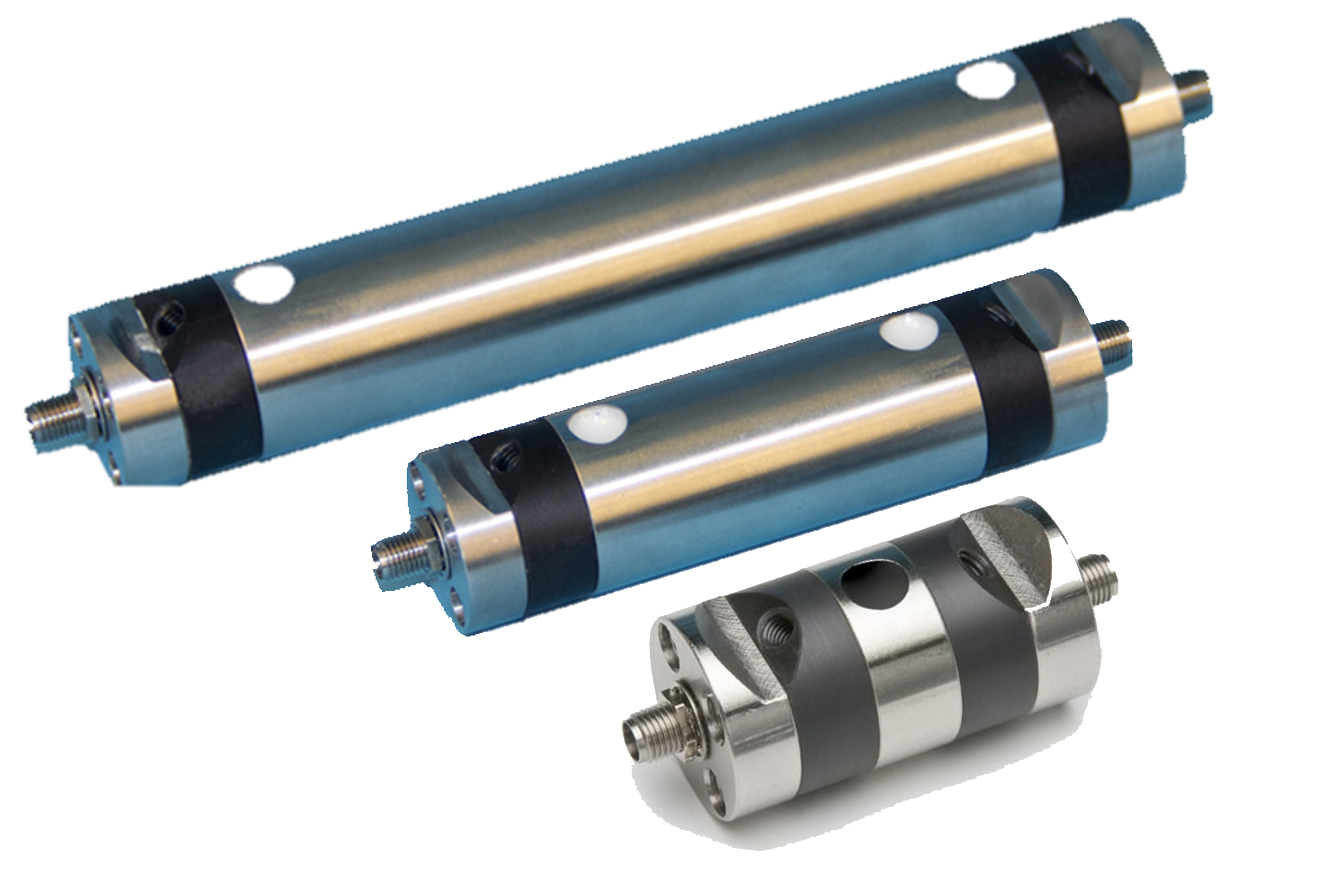

LWCC-M Series

Fiber Optic low volume flow cell UV, VIS, NIR absorbance Fits 500 and 600 µm fibers DNA, RNA and protein quantification Colorimetric nutrient and trace metal analysis Drug discovery and dissolution testing

LWCC-M Series Brochure

LWCC-M Series Instruction Manual

Benefits

• High efficiency coupling
• Low refractive index offset
• Fits TIDAS systems and other fiber-coupled spectroscopy equipment

Details

The LWCC-M series is a MicroLWCC fiber optic low volume flow cell for UV/VIS/NIR absorbance analysis. Based on WPI’s established liquid core waveguide technology, the analyte solution functions as the core of a fluid filled light waveguide. Wetted parts in the sample cell light path are PEEK, fused silica and PTFE. Optical fibers are used to transport light to and from the sample cell. The cell can be used in biochemistry for DNA, RNA & protein quantification, colorimetric nutrient and trace metal analysis, drug discovery and dissolution testing, process control, and HPLC analysis.

Selection Table

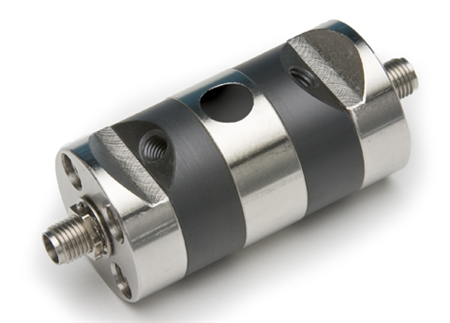

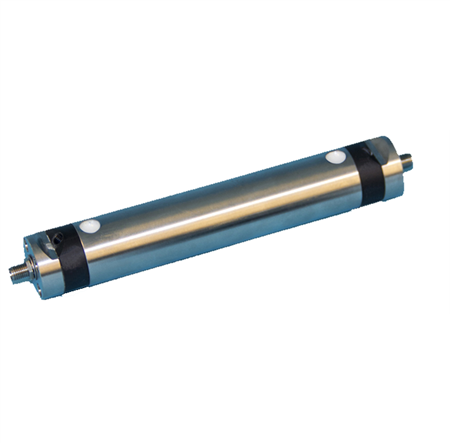

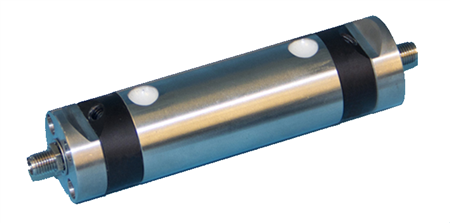

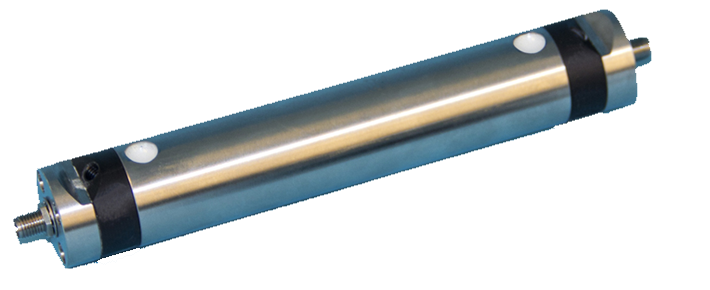

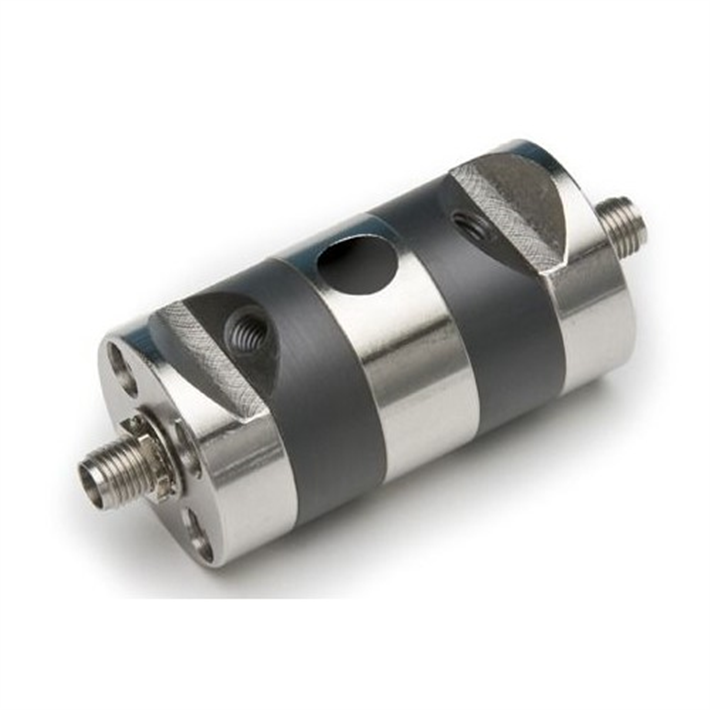

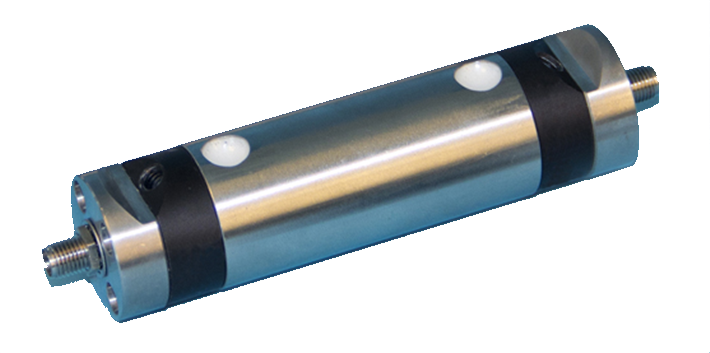

	LWCC-M-10	LWCC-M-50	LWCC-M-100
Optical Pathlength	10 mm	50 mm	100 mm
Internal Volume	2.4 μL	12 µL	24µL
Refractive Index@ 280nm *	< 7 mAU	<15 mAU	<30 mAU
Transmission @ 254nm **	25%	20%	15%
Transmission @ 500nm **	40%	35%	30%
Wavelength Range	200-1000 nm
Fiber Connection [μm]	600 (SMA)
Maximum Pressure	1000 PSI
Wetted Materials	PEEK, Fused Silica, PTFE

* Measured using ASTM E 685-93, includes intrinsic solvent absorbance

** Reference: Two 500μm fiber, butt-connected

WPI Patents: 5,444,807; 5,570,447; 5,604,587; 6,603,556; 6,385,380
