Aladdin Programmable Peristaltic Pumps 9000 Series

Aladdin Programmable Peristaltic Pumps provide accurate and precise pumping and dispensing with convenience and versatility.

The Aladdin 9000 Series peristaltic pumps are equipped to be used in many settings from the small home based businesses to the large factory floor. Applications range from continuous flow to measured dispenses. The pump can be integrated into existing production lines or simply used stand alone.

The Aladdin 9000 Series is fully programmable and can be operated manually or with a PC through a RS-232 communication port. PC cable and software offered as accessories.

Pump from a reservoir through replaceable continuous tubing Measured dispenses for production filling of bottles Fluid only comes into contact with the continuous tubing - not the pump Continuous Pumping. Up to 1500 mL/min (model AL-9010) Dispenses and Withdraws. Calibration function to improve precision Slow Down and Anti-Drip modes improve control of dispensing Optionally operates from a foot switch or external sensor Fully programmable with Computer interface for more advanced applications

Aladdin Peristaltic Pump 9000 Series Instruction Manual

Features:

• Dispense and withdrawal pumping

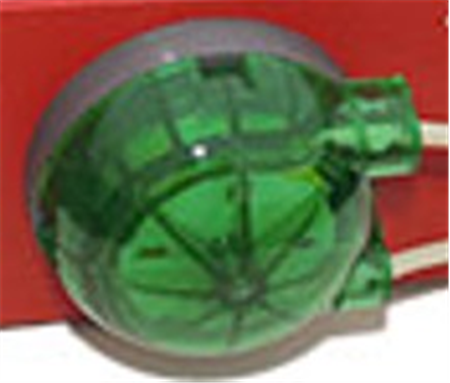

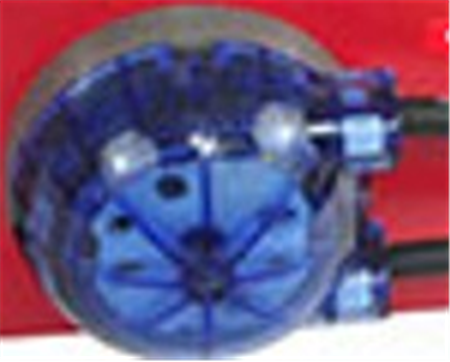

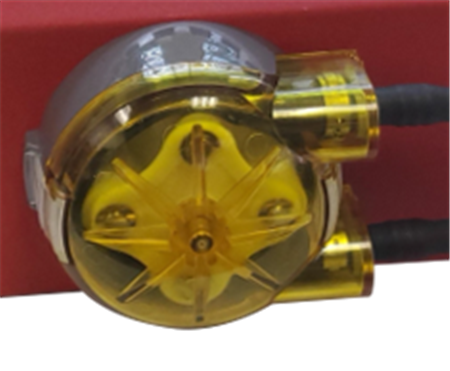

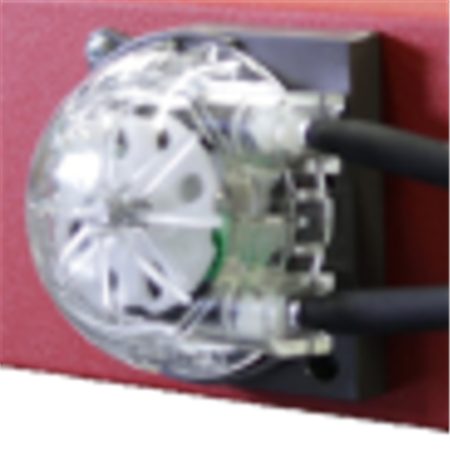

• Quick change pumping heads to quickly switch between fluids
• Learn and Repeat™ mode to improve dispense productivity - Quickly teach the pump the volume of a bottle or container. Then immediately fill all your bottles or containers to the same volume
• Slow down mode to improve accuracy of dispenses
• Anti-Drip mode to stop drips after a dispense cycle
• Power Failure Mode: Restarts the Pumping Program after a power interruption
• Programmable dispense volumes. Store and select from up to 40 Dispenses
• Selectable volume units of mL or oz
• Selectable pumping rate units of mL/min, mL/sec, oz/min, oz/sec, or dispense a volume over a set time
• Programming mode for complex pumping applications and interaction with external devices
• Foot Switch control available
• RS-232 bi-directional control for complete control from a PC. Network up to 100 pumps and other devices
• Digital logic input: TTL I/O with software filtered control inputs to eliminate glitches and ringing on the control inputs. Configurable TTL operational trigger for foot switches and other devices
• Audible alarm
• Easy-to-use keypad interface
• Non-volatile memory of all operating parameters and pumping program

Specifications:

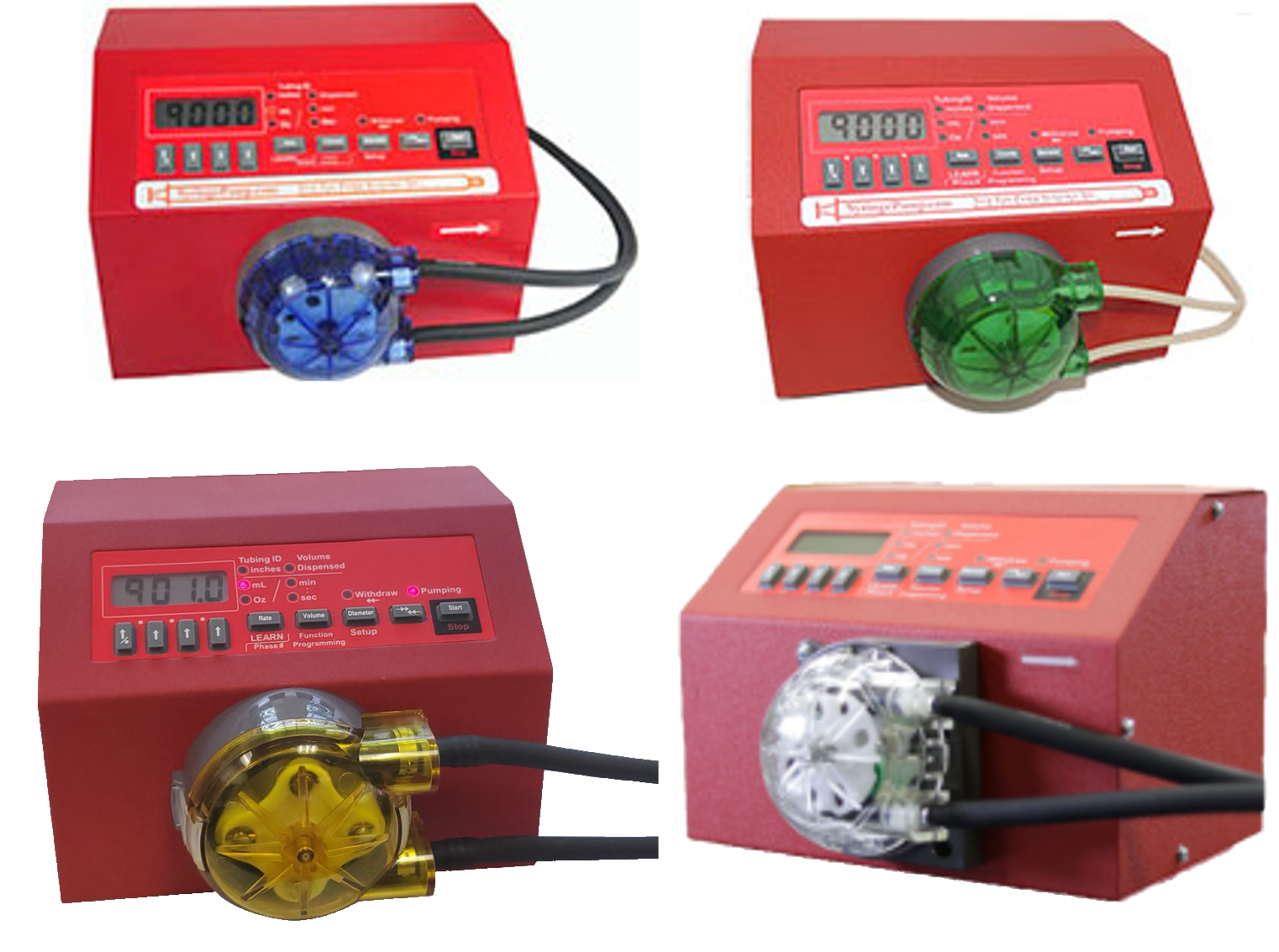

Available in four models

Mechanical & Electrical

Number of pump channels: 1

Motor type: Step motor

Motor steps per revolution: 200

Microstepping: 1/8 to 1/1 depending on motor speed

Power Supply Type: 24V DC 1A country and power source specific

Dimensions: 7 ¾” x 5 1/4” x 5 3/4” High (19.7 cm x 13.3 cm x 14.6 cm)

Weight: 2.1 kg

Operational

Maximum speed: 372 rpm

Minimum speed: 0.0168 rpm

Number of Program Phases: 40

RS-232 pump network: 100 pumps maximum

RS-232 selectable baud rates: 300, 1200, 2400, 9600, 19200
