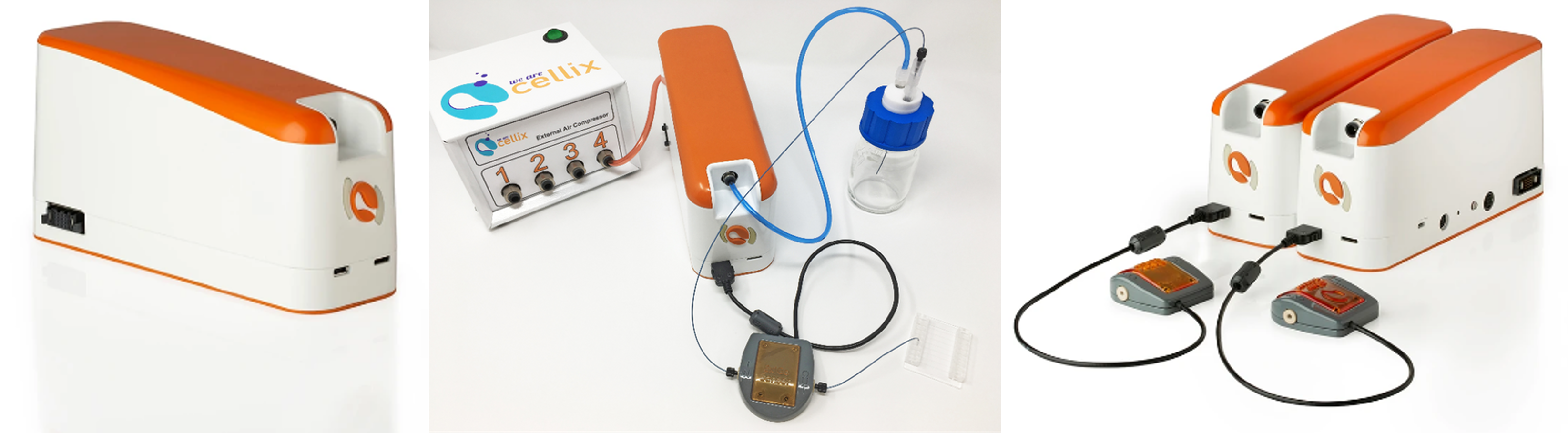

UniGo Pulse-Free Microfluidic Pressure Pump
UniGo Pump series is a microfluidic pressure pump controlled by SmartFlo software that can be run from a PC. Connect up to 4 UniGo pumps together with independent programming of each pump's flow profile.
UniGo Pressure Pump Instruction Manual
Overview
The UniGo™ Microfluidic Pump is a precision, microfluidic, single-channel pressure pump for a variety of microfluidic applications, where accurate and stable flow rate delivery is required. The pressure pump component is based on controlled air injection. The UniGo pump requires a plug-and-play flow sensor for active feedback and increased flow control. SmartFlo Application executed on a PC via a LabView based interface communicates with up to 4 UniGo Microfluidic Pumps racked together allowing simultaneous control and independent programming of each pump’s flow profile.
Note: a flow sensor must be used with each UniGo pump.
- PULSE-FREE down to µL/min with flow sensor
- PROGRAMMABLE flow profiles with any combination of constant, ramp, sine and step
- EASY INTEGRATION with your own software, including LabVIEW, C++ and Python
- FAST RESPONSE and fast settling time
- FLOW RATES: 1µL/min - 1mL/min
- INPUT PRESSURE: up to 10 bar or 145 PSI - external compressor or vacuum pump required
- CLOSED-LOOP FEEDBACK: Flow sensors provide active feedback and precise flow control
- MODULAR: up to 4 UniGo pressure pumps connected together with independent programming of each pump's flow profile. Or you can mix-and-match with ExiGo syringe pumps

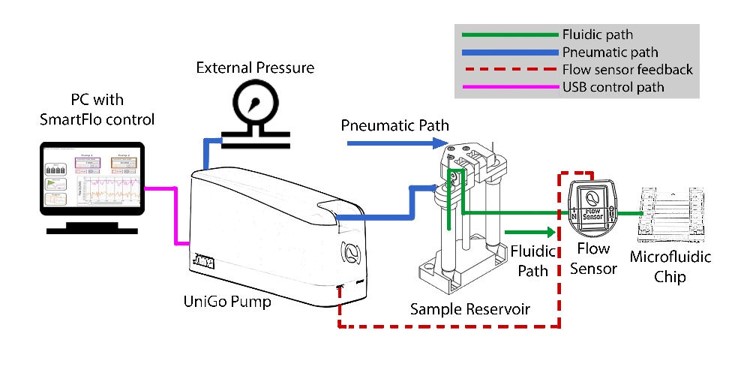

An UniGo Syringe Pump setup will look like this:

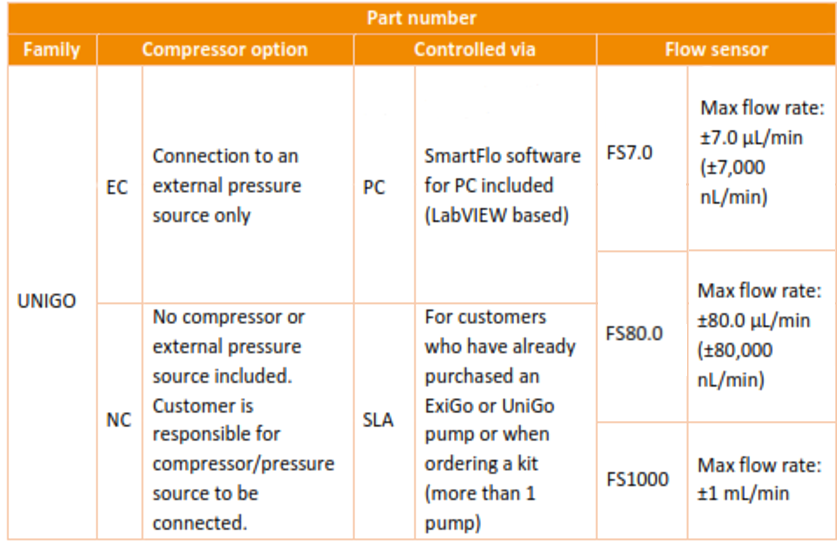

To select the UniGo pump configuration you need follow the following selection chart
- Select whether you need an external pressure source included or you already have your own
- Choose whether you want to control the UniGo via a PC or you are adding an additional model (SLA)
- Select the flow sensor based on the flow rate required
Technical Specifications
| Input Pressure | Up to 10 bar or 145PSI or vacuum -0.9bar(1) |
| Volumetric Flow Rates | 7 μL/min to 1 mL/min |
| Flow Direction | Unidirectional (Push or Pull) |
| Pulse-free flow rate for microfluidic applications |
7 μL/min - 80 μL/min (± 120 nL/min)(2) 10 μL/min - 1 mL/min (± 2 μL/min)(3) |
| Flow feedback options | Pressure-flow combined or Pressure only |
| Fast response | <50 ms |
| External Trigger | 2 inputs and 2 outputs of external trigger for operation with external units and software |
| Software Control | SmartFlo App running on iPad mini or PC |
| Dimensions | 225 mm (L) x 69 mm (W) x 122 mm (H) |
| Weight of pump | 1.3 Kg |
| Power Requirement | 110/220V - 50/60Hz | 60W |
(1) External compressor or vacuum required.
(2) Using a 80µL/min sensor (FS80.0)
(3) Using a 1mL/min sensor (FS-1000)
Applications
- Droplet Generation: high throughput droplet micro-reactor generation
- Hydrodynamic flow focusing
- Organ-on-chip experimental set-ups
- Volatile Organic Compound (VOC) experimental set-ups
- Thrombosis / Platelet Adhesion and Aggregation shear flow experiments
- Shear based cell rolling, adhesion and transmigration assays on ligand-coated surface or on endothelial cells.
- Precise mixing of soluable compounds in microchannels
- Bacterial biofilm formation on solid surfaces

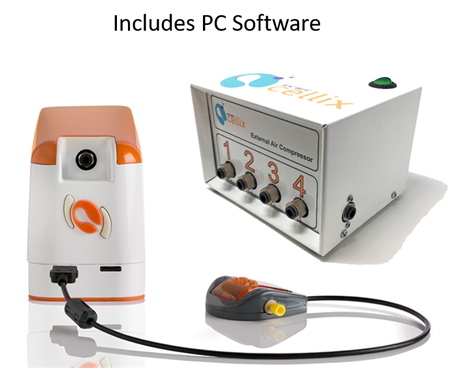

UNIGO-EC-PC-FS7.0
UniGo Fluidic Pump System With Compressor And 7.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x External compressor
- 1 x SmartFlo for PC
- 1 x flow sensor (7.0 µl/min)
- 1 x tubing kit; power supply and cables
UNIGO-EC-PC-FS80.0
UniGo Fluidic Pump System With Compressor And 80.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x External compressor
- 1 x SmartFlo for PC
- 1 x flow sensor (80.0 µl/min)
- 1 x tubing kit; power supply and cables.
UNIGO-EC-PC-FS1000
UniGo Fluidic Pump System With Compressor And 1 ml/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x External compressor
- 1 x SmartFlo for PC
- 1 x flow sensor (1ml/min)
- 1 x tubing kit; power supply and cables.

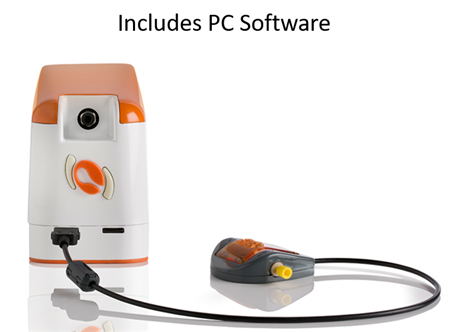

UNIGO-NC-PC-FS7.0
UniGo Fluidic Pump With 7.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x SmartFlo for PC
- 1 x flow sensor (7.0 µl/min)
- 1 x tubing kit; power supply and cables
No compressor included - requires external air supply
UNIGO-NC-PC-FS80.0
UniGo Fluidic Pump With 80.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x SmartFlo for PC
- 1 x flow sensor (80.0 µl/min)
- 1 x tubing kit; power supply and cables
No compressor included - requires external air supply
UNIGO-NC-PC-FS1000
UniGo Fluidic Pump With 1.0 ml/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x SmartFlo for PC
- 1 x flow sensor (1.0 ml/min)
- 1 x tubing kit; power supply and cables
No compressor included - requires external air supply
UNIGO-EC-SLA-FS7.0
UniGo Fluidic Pump System With Compressor And 7.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x External compressor
- 1 x flow sensor (7.0 µl/min)
- 1 x tubing kit; power supply and cables.
UNIGO-EC-SLA-FS80.0
UniGo Fluidic Pump System With Compressor And 80.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x External compressor
- 1 x flow sensor (80.0 µl/min)
- 1 x tubing kit; power supply and cables.

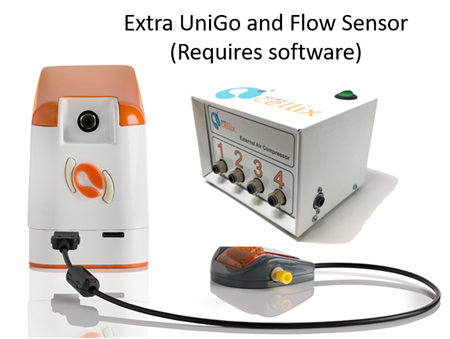

UNIGO-EC-SLA-FS1000
UniGo Fluidic Pump System With Compressor And 1.0 ml/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x External compressor
- 1 x flow sensor (1.0 ml/min)
- 1 x tubing kit; power supply and cables.

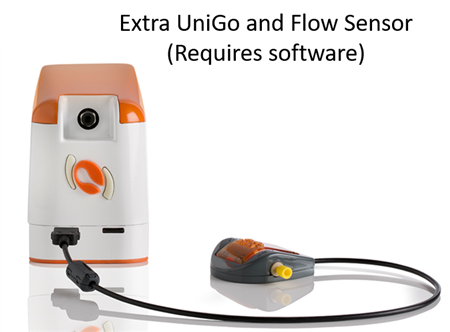

UNIGO-NC-SLA-FS7.0
UniGo Fluidic Pump With 7.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x flow sensor (7.0 µl/min)
- 1 x tubing kit; power supply and cables
No compressor included - requires external air supply
UNIGO-NC-SLA-FS80.0
UniGo Fluidic Pump With 80.0 µl/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x flow sensor (80.0 µl/min)
- 1 x tubing kit; power supply and cables
No compressor included - requires external air supply
UNIGO-NC-SLA-FS1000
1 x UniGo pump; no compressor included; 1 x flow sensor (1ml/min); 1 x tubing kit; power supply and cables.
UniGo Fluidic Pump With 1.0 ml/min Flow Sensor
Includes:
- 1 x UniGo pump
- 1 x flow sensor (1.0 ml/min)
- 1 x tubing kit; power supply and cables
No compressor included - requires external air supply

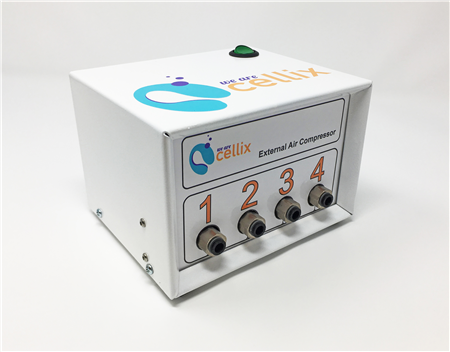

EC
External Compressor for UniGo or 4U pumps.
Pressure Range: Up to 1.8 bar
The compressor is connected via pneumatic tubing to the UniGo or 4U pressure pump.
