Micro Syringe Pump For Stereotaxic Injection
The range of micro syringe pump systems below have been specifically designed for stereotaxic injection. Capable of delivering injections from picoliter to milliliter volume. Choose stereotaxic pump options with either manual or digital control. Our advanced smart controllers can control up to four stereotaxic injection pumps.
Applications
- Microinjection
- Neuroscience
- Microfluidics
- Micro delivery of biochemical agents or dyes
- Intravitreal Injection (with RPE-KIT)
- Intraoccular Injection (with IO-KIT)
Stereotaxic Injectors
| Order code | Description |
| UMP3 | UltraMicroPump3 ONLY (without controller) |

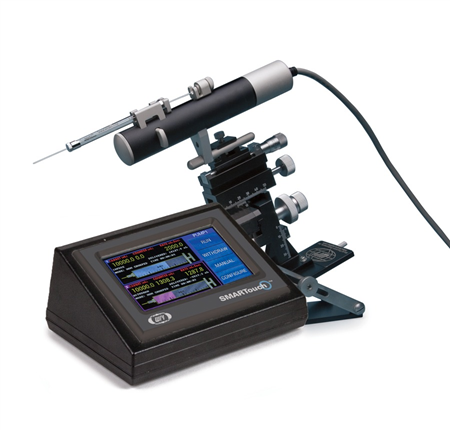

| UMP3T-1 | UltraMicroPump3 (one) and SMARTouch Controller |
| UMP3T-2 | UltraMicroPump3 (two) and SMARTouch Controller |

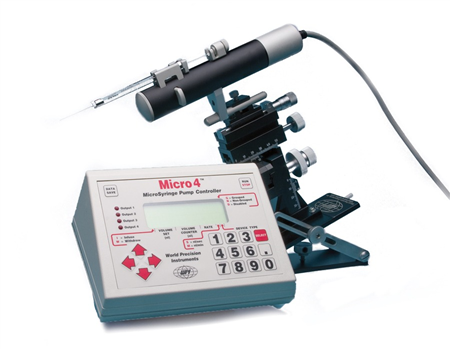

| UMP3-3 | UltraMicroPump3 (three) and Micro4 Controller |
| UMP3-4 | UltraMicroPump3 (four) and Micro4 Controller |
| DMP | Manual Microsyringe Pump with Digital Display |
| MMP | Manual Microsyringe Pump |
| NANOLITER2020 | Nanoliter2020 (one) and SMARTouch Controller |
Accessories For Stereotaxic Injectors
| Order code | Description |
| NANOFIL | NanoFil 10 µL Syringe |
| NANOFIL-100 | NanoFil 100 µL Syringe |
| IO-KIT | Intraocular Injection Kit |
| RPE-KIT | Retinal Pigment Epithelium Kit |
| SILFLEX-2 | SilFlex flexible Tubing for Nanofil, 35cm long 2/pk |
| NanoFil Syringes, NanoFil Needles & Accessories | |
| MMP-KIT | Replacement Injection Assembly Parts Kit for MMP |
| 13142 | Footswitch For MICRO2T Controller |
| 503301 | Extension Cable For UMP3 |
| 300630 | Replacement Mounting Bar, 4.3” For UMP3 |
| 65085 | Replacement Mounting Bar Locking Nut For UMP3 |
| 65141 | Replacement Plunger Retaining Screw For UMP3 |
| MICRO2T | SMARTouch Controller ONLY, Two-Channel |
| 15867 | Footswitch For SYS-MICRO4 Controller |
| SYS-MICRO4 | MICRO4 Controller ONLY, Four-Channel |
Nanoliter2020 Injector
Precise nanoliter-volume injections using glass with intuitive SMARTouch™ cont...

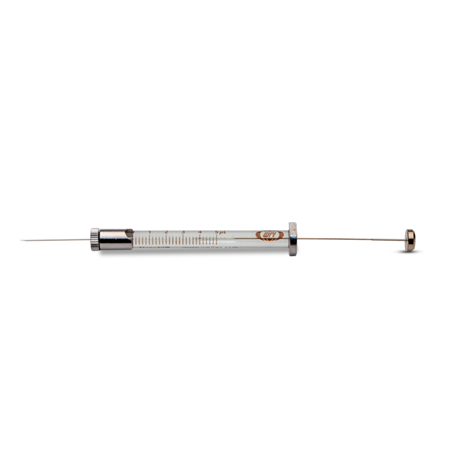

NANOFIL-5
NanoFil 5 µL Syringe
- Includes (1) NF26BV 26 gauge needle
- Syringe Type: Gas-tight
- Syringe Volume 5 µL
- Plunger Stroke Length 30mm (Syringe Barrel 0.46mm ID, 6.40mm OD)
- Syringe Body: Borosilicate glass, Stainless Steel, PTFE
- Recommended Cleaning: Plunge with bleach or 70-90% EtOH + DI Water
Use with NanoFil Injection Needles (sold separately).

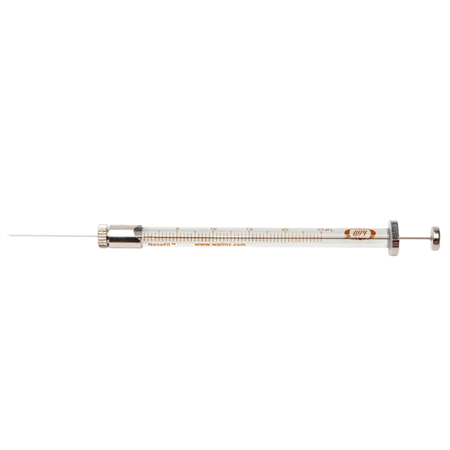

NANOFIL-25
NanoFil 25 µL Syringe
- Includes (1) NF26BV 26 gauge needle
- Syringe Type: Gas-tight
- Syringe Volume 25 µL
- Plunger Stroke Length 60mm (Syringe Barrel 0.73mm ID, 6.50mm OD)
- Syringe Body: Borosilicate glass, Stainless Steel, PTFE
- Recommended Cleaning: Plunge with bleach or 70-90% EtOH + DI Water
Use with NanoFil Injection Needles (sold separately).

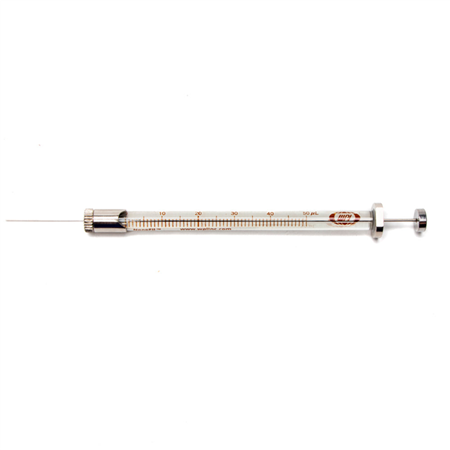

NANOFIL-50
NanoFil 50 µL Syringe
- Includes (1) NF26BV 26 gauge needle
- Syringe Type: Gas-tight
- Syringe Volume 50 µL
- Plunger Stroke Length 60mm (Syringe Barrel 1.03mm ID, 6.50mm OD)
- Syringe Body: Borosilicate glass, Stainless Steel, PTFE
- Recommended Cleaning: Plunge with bleach or 70-90% EtOH + DI Water
Use with NanoFil Injection Needles (sold separately).

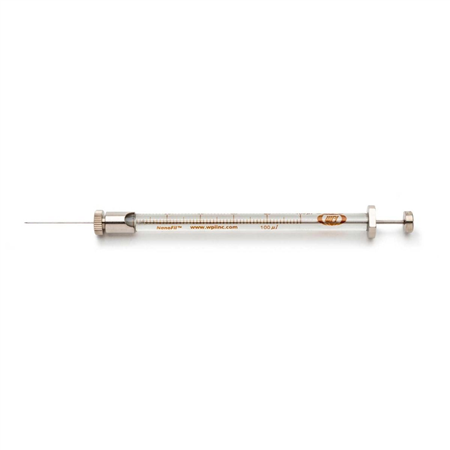

NANOFIL-100
NanoFil 100 µL Syringe
- Includes (1) NF26BV 26 gauge needle
- Syringe Type: Gas-tight
- Syringe Volume 100 µL
- Plunger Stroke Length 60mm (Syringe Barrel 1.46mm ID, 7.75mm OD)
- Syringe Body: Borosilicate glass, Stainless Steel, PTFE
- Recommended Cleaning: Plunge with bleach or 70-90% EtOH + DI Water
Use with NanoFil Injection Needles (sold separately).
15867
Footswitch for SYS-Micro4 Controller. Hands-free activation of microinjection pump.
13142
Foot Switch for the MICRO2T, MICRO-ePORE and EVOM3 (13142)
503301
Extension Cable for DLS100 and UMP3, 3m Length
- 10' (3m) cable length
- For use with DLS100 and UMP3
300630
Replacement Mounting Bar, 4.3” for UMP3
MICRO2T
SMARTouch Controller ONLY, Two-Channel
- Graphic display with SMARTouch™ touch screen controller for "intelligent", easy to use interface controlling up to four microliter syringe pumps
- Splash proof touch screen
- User configurable mounting bar
- Dual mode motor drive
- Compatible with all UMP, UMP2 and UMP3 micro syringe pumps
- Optional foot switch available
- 5 digit display
SYS-MICRO4
MICRO4 Controller ONLY, Four-Channel
- Connect up to four channels
- Compatible with all UMP, UMP2 and UMP3 micro syringe pumps
- Easy-to-use interface
- Set parameters on membrane keypad
- Optional foot switch available
