COLCAM-HD1080P

COLCAM-HD1080P

Color CMOS Video Camera 1920x1080p


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

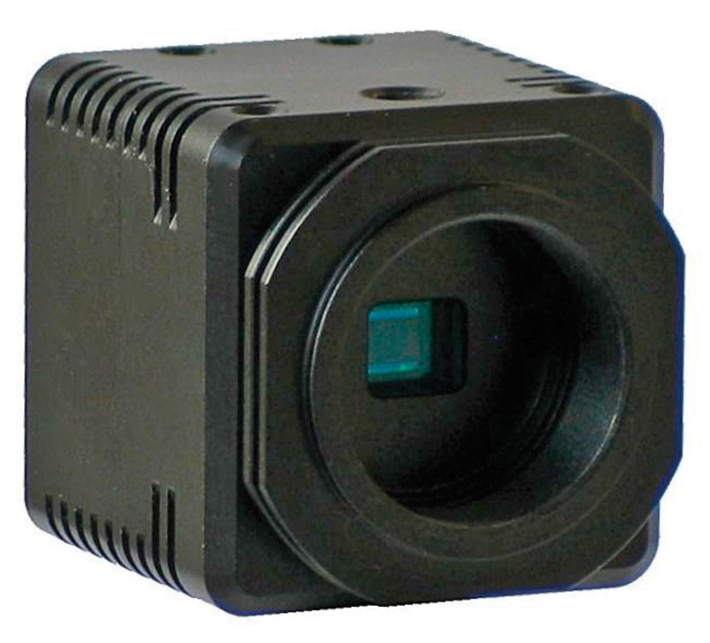

COLCAM-HD1080P

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Microscope to Camera Configuration chart
/ Download as PDF

  • 1080p (1920x1080) HD resolution
  • 16:9 Aspect ration, 1:1, so scaling
  • S1/2.8" 230 Megapixel CMOS sensor
  • DVI signal output via HDMI cable
  • Improved design with better light sensitivity
  • Low cost alternative with outstanding image quality
  • Available in “C” Mount

CMOS-based camera that outputs a true HD 1080p or 720p at 60fps in the 16x9 format. It also features the capability to program individual DSP profiles accessed via remote hand held controller.

The camera comes with:

  • 3m HDMI cable
  • C capability (C-mount ring)
  • Power supply

Camera to Microscope Configurations:

Please see Camera to Microscope Connection Table PDF.

Specifications

Imager 1/2.8" 230 Mega pixel CMOS (SONY: IMX136), Rolling Shutter
HD Active Picture Element 1920 (H) x 1080 (V)
Chip Size 6.4mm diagonal
Minimum Scene Illumination TBD
Sync System Internal
Video Output DVI 1.0 conformity 1080P RGB, 1080P60,1080P59.94, 1080P50, 1080P30,1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
Shutter Speed Autor or selectable via the UART Communication
Gain AGC or Fixed gain, selectable via the UART communication
Gamma Presets or manual gamma; selectable via the UART communication
White Balance Auto / Manual / Push-to-set; Selectable via the UART communication
Pixel Blemish Collection Up to 64 pixel blemish static collection
Power 12VDC
Dimensions 40 (W) x 40 (H) x 45.8 (D) mm
Optical Filter IR cut filter included
Lens Mount C Mount
Video Output HDMI Connector
 Weight TBD
RoHS RoHS compliant
