MT-75
Gantry Style Micromanipulator Stands- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview

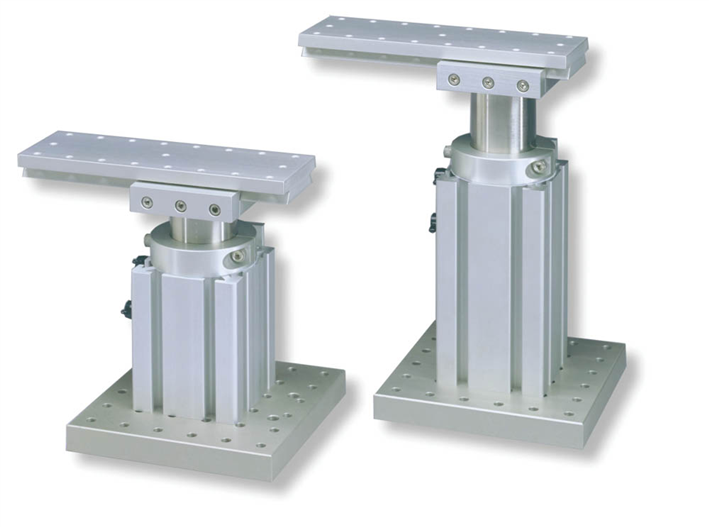

There are 1 images available to view - click to enlarge and scroll through the product gallery.
Features
- Adjustable vertical and horizontal axes
- Up to 360 degrees of rotation
- Suitable for upright and inverted microscopes
- Quick lock mechanism allows for easy positioning
- Solid construction provides stable mounting
- Optional linear slide provides smooth and easy movement for pipette replacement
For ultimate flexibility in positioning micromanipulators or other devices adjacent to your microscope, look to the MT-75 series stands. These unique gantry systems offer adjustable vertical and horizontal axes and up to 360 degrees of rotation. Your manipulator or other device will mount to the 3/4in thick aluminum cantilever which is dovetailed for secure positioning. The cantilever assembly is mounted on a heavy 2in diameter stainless steel post. The post is supported within the same extruded aluminum tower used in our MT-70 stands. The tower can be center mounted or edge mounted to the base-plate for an additional degree of positioning freedom.
Vertical positioning is achieved with an aluminum collar which securely locks onto the steel post to fix the height of the system. The MT-75 is suitable for use with most inverted microscopes, and can be adjusted from a minimum height of 8 5/8in to a maximum height of 12 1/2in. The MT-75S is suitable for most upright scopes, and can be adjusted from 6 5/8in to 9 1/2in. These systems are very stiff, deflecting approximately 2µm per 25mm rise with a 1.5 kg load at the end of the cantilever.
A quick lock mechanism allows easy unlocking and rotation of the post/cantilever assembly up to 320 degrees, then rotation back to the same positive stop position and locking in place (e.g. insertion and removal of microelectrodes from headstages). Remove the positive stop and you have a full 360 degree rotation. A Teflon washer contributes to the smooth rotation of the system.
The solid aluminum baseplate has through-holes on 1 inch (25mm) centers for mounting onto tables. The cantilever has eighteen 1 inch spaced 10-32 holes along the edges. The MT-75/LS manipulator mount provides additional flexibility of movement. In multiple manipulator setups, rotational movement for pipette replacement is often not possible. Using a long linear rail, the manipulator can be quickly and smoothly moved to a location where there is easy access to the pipette for replacement. After replacement, the manipulator can be slid back into a fixed stop that defines the working position.
The linear slide system can also be added to existing MT-75 stands by ordering the MT-7004 linear slide cantilever alone.
NOTE: Not currently for sale to our customers in Germany and Italy - contact us for information
Specifications
TECHNICAL SPECIFICATIONS
Dimensions of Baseplate
6 in x 6 in x .75 in | 153 mm x153 mm x 19 mm
Dimensions of Cantilever
2.5 in x 8 in x .75 in | 64 mm x 204 mm x 19 mm
Total Stand Height
MT-75
Adjustable 8 5/8 in to 12 1/2 in | 220 mm to 319 mm
MT-75S
Adjustable 6 5/8 in to 9 1/2 in | 169 mm to 242 mm
Weight
MT-75
11 lb 7 oz | 5.2 kg
MT-75S
9 lb 14 oz | 4.5 kg
MT-75 SERIES
Catalog Number and Description
MT-75
Standard gantry stand 8.7 to 13.4 in (22.1 to 33.9 cm)
MT-75S1
Short gantry stand 6.7 to 9.6 in (16.9 to 24.4 cm)
MT-75T
Tall gantry stand 10.7 to 15.4 in (27.1 to 39.1 cm)
MT-75XT
Extra tall gantry stand 14.71 to 18.50 in (37.4 to 47 cm)
MT-75/LS1
Standard gantry stand with linear slide
MT-75S/LS1
Short gantry stand with linear slide
MT-75T/LS
Tall gantry stand with linear slide
MT-75XT/LS
Extra tall gantry stand with linear slide
