MT-2000
Motorized X-Y Translator for Fixed-Stage Microscopes- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
Features
- 22mm of travel in X & Y
- 40nm resolution displayed in submicrons (MP-285)
- 62.5nm resolution displayed in microns (MPC-200)
- Highly stable for experiments intolerant of drift
- Easy to read vacuum fluorescent display
- Adjustable speed and resolution allows optimization for your experimental setup
- Programmable robotics for complex motion sequences (MP-285)
- Continuous display of axes positions
- Convenient Home function allows microscope to be quickly repositioned

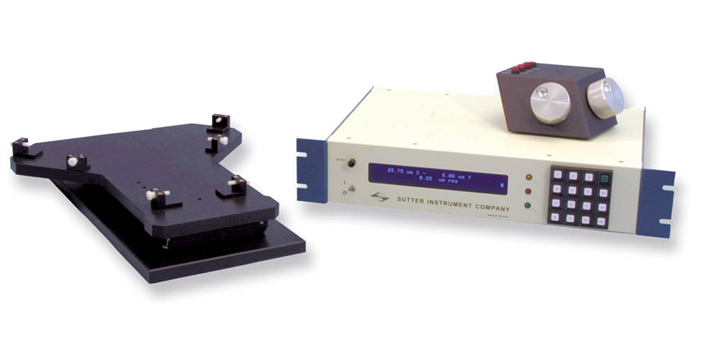

The MT-2000/MT-2078 is a motorized microscope translator system including multiple platforms for manipulators and specimen. Two general styles are available. In the classic design (MT-2000), an independent stand, the MT-75 is used for each manipulator and a similar stand, the MT-150 holds the tissue chamber. A new style (MT-2078) uses a single large, fixed stage, the MT-78-FS, to support multiple manipulators and the sample. The classic MT-2000 features free-standing columns that provide rock solid mounting for the tissue recording chamber and multiple micromanipulators. Many prefer this methodology as it maximizes working room for adjusting the microscope and changing pipettes. Furthermore, the independent stand design minimizes movement-related cross talk between manipulators. The MT-2078 single stage has the advantage that it is easy to add additional manipulators and other devices into the design as the manipulator/chamber support is one large platform.
The core of the MT-2000/MT-2078 system is the MT-800 stepper-motor driven X-Y translation table. The motors can be driven by two-axis versions of either the popular MP-285 manipulator controller or the dual manipulator controller MPC-200-ROE. A two-axis rotary optical encoder (ROE) accepts user input to the motorized translator and can be placed in any convenient location in your setup. Either controller gives the user smooth, high-resolution manual control of motion. The MP-285 controller offers extensive on-board robotic functionality and a serial computer interface for PC control. The MPC-200-ROE controller offers a USB computer interface for PC control. Systems using the MP-285 controller are called MT-2000 or MT-2078 while systems using the MPC-200-ROE controller are designated MT-2200 or MT-2278.
Our controller design has allowed Sutter to easily add a focus drive to the MT-2000/MT-2200/MT-2078/MT-2278 systems. The Sutter focus drive employs a direct-coupled stepper motor for lock-step focus movement and adjustable end of travel sensors to limit the travel of the microscope objective to a safe range for the setup. In the focus drive version, MT2000/FD, the ROE input device has inputs for X, Y and Z focus.
MT-800 motorized translators are currently available for the Olympus BX-51WI, Nikon FN-1, Zeiss Axioskop 2 FS and the Leica DMLFS. Focus drives are available for the Olympus BX51WI. Other microscopes can be supported. MT-75, MT-150 and MT-78 stands and stages are compatible with all scopes.
NOTE: Not currently for sale to our customers in Germany and Italy - contact us for information
Specifications
TECHNICAL SPECIFICATIONS
Baseplate Dimensions
8 in x 15.25 in x 2.25 in | 200 mm x 375 mm x 55 mm
Maximum Travel
22 mm
Minimal Microstep Size
50nm (MP-285 controller)
78-125nm (MPC-200 controller)
Minimal Display Resolution
50nm (MP-285 controller)
1 micron (MPC-200 controller)
Maximum Load
110 lbs | 50 kg
Weight
35 lbs | 16 kg
Mechanical Controller
11 lbs | 4.5 kg
RoHS Compliant
MT-2000 COMPLETE SYSTEM w/ MT-75 MANIPULATOR STANDS and MP-285 CONTROLLER
Includes the MT-800 motorized X-Y translator, MP-285 controller and ROE, MT-150 chamber column, two MT-75 micromanipulator columns (without linear slide), cables and manual
Catalog Number and Description
MT-2000/Y511
Complete system for the Olympus BX51WI
MT-2000/Y51/FD1,2
Complete system for the Olympus BX51WI with focus drive
MT-2000/Z251
Complete system for the Zeiss Axioskop 2 FS
MT-2000/Z451
Complete system for the Zeiss Axio Examiner
MT-2000/N651
Complete system for the Nikon FN1
MT-2000/L301
Complete system for the Leica DMLFS
MT-2000/L351
Complete system for the Leica DM6000 FS
MT-2200 COMPLETE SYSTEM w/ MT-75 MANIPULATOR STANDS and MPC-200 CONTROLLER
Includes the MT-800 motorized X-Y translator, MPC-200 controller and ROE, MT-150 chamber column, two MT-75 micromanipulator columns (without linear slide), cables and manual
Catalog Number and Description
MT-2200/Y511
Complete system for the Olympus BX51WI
MT-2200/Y51/FD1,2
Complete system for the Olympus BX51WI with focus drive
MT-2200/Z251
Complete system for the Zeiss Axioskop 2 FS
MT-2200/Z451
Complete system for the Zeiss Axio Examiner
MT-2200/N651
Complete system for the Nikon FN1
MT-2200/L301
Complete system for the Leica DMLFS
MT-2200/L351
Complete system for the Leica DM6000 FS
1 Please specify chamber type when ordering
2 Please contact Sutter for availability of focus drive on other microscope makes & models
MT-2078 COMPLETE SYSTEM w/ MT-78-FS FIXED STAGE PLATFORM and MP-285 CONTROLLER
Includes the MT-800 motorized X-Y translator, MP-285 controller and ROE, MT-150 chamber column, two MT-78-FS fixed stage platform, cables and manual
Catalog Number and Description
MT-2078/Y511
Complete system for the Olympus BX51WI
MT-2078/Y51/FD1,2
Complete system for the Olympus BX51WI with focus drive
MT-2078/Z251
Complete system for the Zeiss Axioskop 2 FS
MT-2078/Z451
Complete system for the Zeiss Axio Examiner
MT-2078/N651
Complete system for the Nikon FN1
MT-2078/L301
Complete system for the Leica DMLFS
MT-2078/L351
Complete system for the Leica DM6000 FS
MT-2278 COMPLETE SYSTEM w/ MT-78 FIXED STAGE PLATFORM and MPC-200 CONTROLLER
Includes the MT-800 motorized X-Y translator, MPC-200 controller and ROE, MT-78-FS fixed stage platform, cables and manual
Catalog Number and Description
MT-2278/Y511
Complete system for the Olympus BX51WI
MT-2278/Y51/FD1,2
Complete system for the Olympus BX51WI with focus drive
MT-2278/Z251
Complete system for the Zeiss Axioskop 2 FS
MT-2278/Z451
Complete system for the Zeiss Axio Examiner
MT-2278/N651
Complete system for the Nikon FN1
MT-2278/L301
Complete system for the Leica DMLFS
MT-2278/L351
Complete system for the Leica DM6000 FS
1 Please specify chamber type when ordering
2 Please contact Sutter for availability of focus drive on other microscope makes and models
