Replacement Tips for Reusable Rapid Biopsy Punch

Replacement tips for reusable punch
Designed for heavy, numerous and precise sampling operations up to 2000 punches
Tip composition: Stainless steel 440C with heat treatment HRC 58 hardness

Options

Order code	Descriptions	Variance ±0.06	I.D.(mm)	Shaft O.D.(mm)	Shaft Wall (mm)	Cutting Edge Wall (mm)	Lumen Length	Lumen void in ml

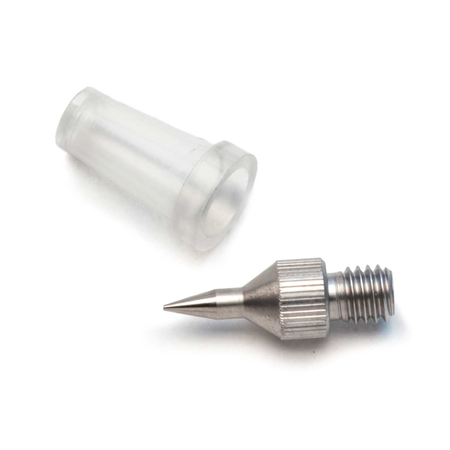

504640	Replacement Tip for Rapid Punch size 0.5 mm	0.5	0.5	3.2	1.3	0.001	4.76	0.934

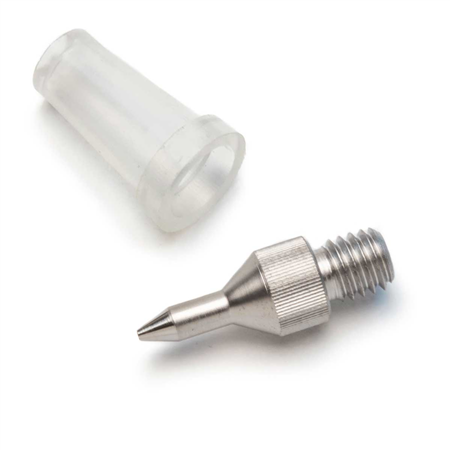

504641	Replacement Tip for Rapid Punch size 1.0 mm	1	1	3.2	1.1	0.001	5.74	4.506

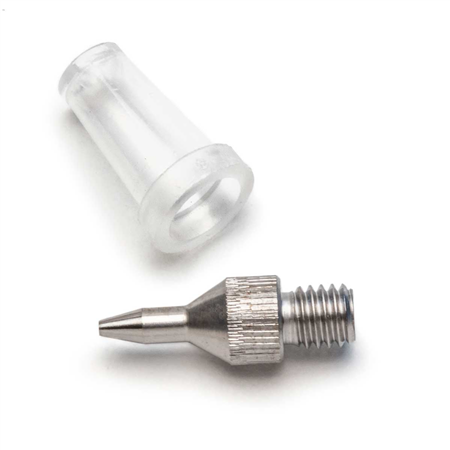

504642	Replacement Tip for Rapid Punch size 1.2 mm	1.2	1.2	3.2	1.05	0.001	5.21	5.889

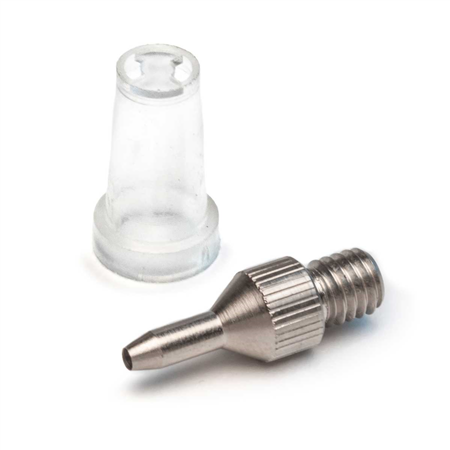

504643	Replacement Tip for Rapid Punch size 2.0 mm	2	2	3.2	0.65	0.001	4.83	15.16

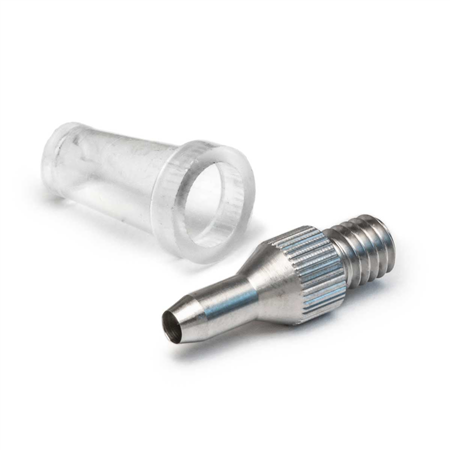

504644	Replacement Tip for Rapid Punch size 3.0 mm	3	3	3.2	0.62	0.001	5.93	41.89

Surgical Instrument Care and Handling Instructions

Using the biopsy punches

REFERENCES;

Al Nahas, K., Cama, J., Schaich, M., Hammond, K., Deshpande, S., Dekker, C., … Keyser, U. F. (2019). A microfluidic platform for the characterisation of membrane active antimicrobials. Lab on a Chip, 19(5), 837–844. https://doi.org/10.1039/C8LC00932E

Ionescu, A., Zahavi, E. E., Gradus, T., Ben-Yaakov, K., & Perlson, E. (2016). Compartmental microfluidic system for studying muscle–neuron communication and neuromuscular junction maintenance. European Journal of Cell Biology, 95(2), 69–88. https://doi.org/10.1016/j.ejcb.2015.11.004
