Specialty Wire
WPI offers a variety of precious metals and wire.
The table below compares the specifications of the various wires. The following hints are offered to help you understand the part number codes and choose the wire you need:
- Micro coaxial cables (MAXxxxx) are ideal for microelectrode fabrication and construction of similar research tools. The dual shielding eliminates electrical interference caused by radio frequencies (RF), electrostatic and microphonics (e.g., bending and vibration). Available with single or dual (twin) conductors.
- Thermocouple wire is for temperature monitoring. TCK3050 has a chromel/alumel pair, for use in inert or oxidizing atmosphere at 1500-1800 °F.
- Teflon-coated stainless steel (type 304) wire (SSTxxxx) is available in 25-ft and 50-ft lengths. The Teflon coating is 4µm thick.
- Carbon wire (C3005) is a single 30µm fiber of electrochemically activated carbon. This fiber is especially useful in micro-electrochemical experiments.

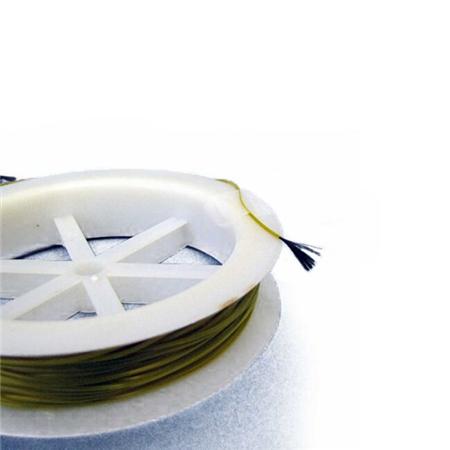

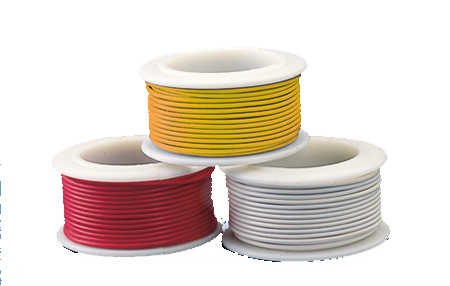

- Carbon filament wire (CPVCxxxx) is made of 3,000 microscopic carbon strands in a colored PVC jacket. 45.8 ohms/foot.
- Copper ultra-fine wire (CU7T44G) is made of seven individually insulated 44 AWG (50µm) conductors twisted together. Total diameter with insulation is 200µm. Resistance: 2.9Ω/m for all seven wires together. Dry dielectric strength: 1500V DC.
- Platinum/iridium wire — uncoated (PTxxxx) and Teflon-coated (PTTxxxx) — is an alloy of 90% platinum and 10% iridium, giving excellent tensile strength and corrosion resistance. Uncoated pure platinum wire (PTPxxx) is 99.95% pure.
- Indium wire (IN1003) is 99.99% pure, with a melting point of 156.4°C.

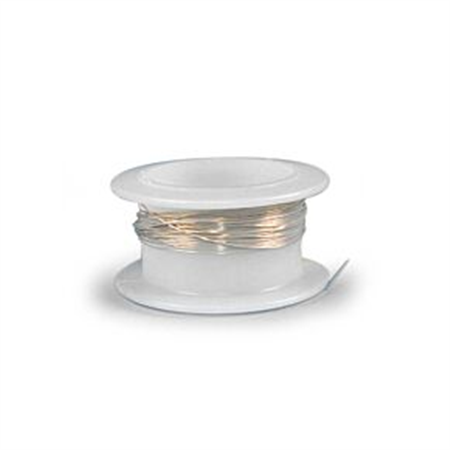

- Annealed silver wire (AGWxxxx), 99.99% pure, is available in five diameters; three of those sizes are also available with a Teflon coating (AGTxxxx).

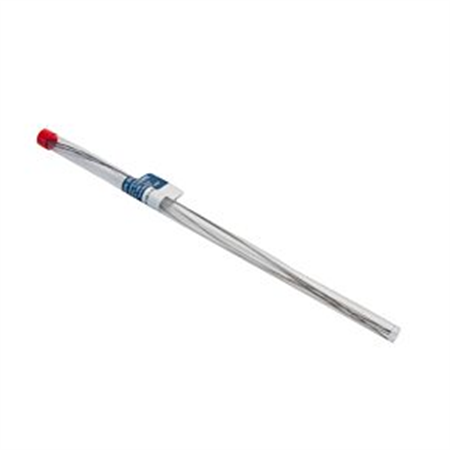

- Tungsten wire (TGWxxxx), available in three diameters, is 99.95% pure.

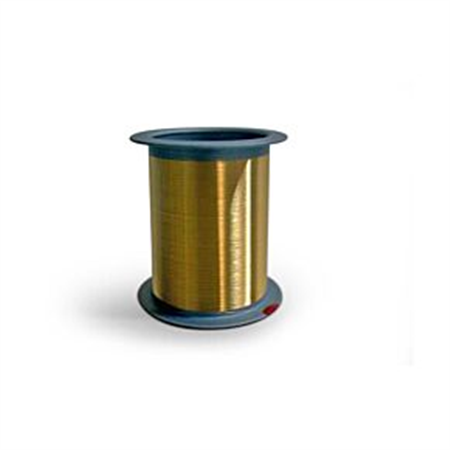

-Gold wire (AUWxxxx) is 99.99% pure.

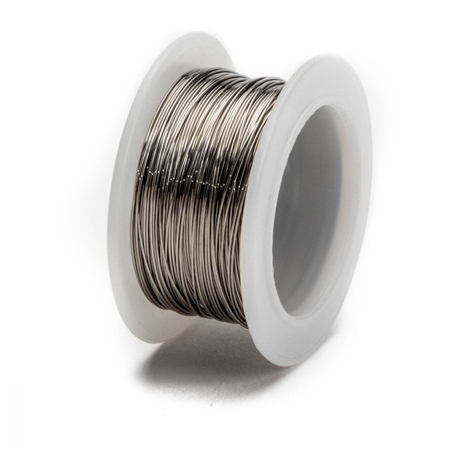

- Stainless steel wire (SSxxxxx) is type 316.
| Order code | Metal | Coating | AWG* | Diameter | Precut Length |
|---|---|---|---|---|---|
| AGT0510 | Silver | Teflon | 36 | 0.005 in. (0.125 mm)1 |
10 ft (3 m) |
| AGT0525 | Silver | Teflon | 36 | 0.005 in. (0.125 mm)1 |
25 ft (7.6 m) |
| AGT05100 | Silver | Teflon | 36 | 0.005 in. (0.125 mm)1 |
100 ft (30 m) |
| AGT1010 | Silver | Teflon | 30 | 0.010 in. (0.25 mm)1 |
10 ft (3 m) |
| AGT1025 | Silver | Teflon | 30 | 0.010 in. (0.25 mm)1 |
25 ft (7.6 m) |
| AGT10100 | Silver | Teflon | 30 | 0.010 in. (0.25 mm)1 |
100 ft (30 m) |
| AGT1510 | Silver | Teflon | 26-27 | 0.015 in. (0.38 mm)1 |
10 ft (3 m) |
| AGT1530 | Silver | Teflon | 26-27 | 0.015 in. (0.38 mm)1 |
30 ft (9.1 m) |
| AGW0510 | Silver | — | 36 | 0.005 in. (0.125 mm) |
10 ft (3 m) |
| AGW0530 | Silver | — | 36 | 0.005 in. (0.125 mm) |
30 ft (9.1 m) |
| AGW1010 | Silver | — | 30 | 0.010 in. (0.25 mm) |
10 ft (3 m) |
| AGW1030 | Silver | — | 30 | 0.010 in. (0.25 mm) |
30 ft (9.1 m) |
| AGW1510 | Silver | — | 26-27 | 0.015 in. (0.38 mm) |
10 ft (3 m) |
| AGW1530 | Silver | — | 26-27 | 0.015 in. (0.38 mm) |
30 ft (9.1 m) |
| AGW2010 | Silver | — | 24 | 0.020 in. (0.5 mm) |
10 ft (3 m) |
| AGW2030 | Silver | — | 24 | 0.020 in. (0.5 mm) |
30 ft (9.1 m) |
| AGW4010 | Silver | — | 18 | 0.040 in. (1.0 mm) |
10 ft (3 m) |
| AUW0170 | Gold | — | 50 | 0.001 in. (0.025 mm) |
70 ft (21 m) |
| AUW201 | Gold | — | 24 | 0.020 in. (0.5 mm) |
1 ft (30 cm) |
| C3005 | Carbon | — | 49 | 0.0012 in. (30 µm) |
5 ft (1.5 m) |
| CPVC4050Y | Carbon (46Ω/ft) | PVC (yellow) | 18 | 0.040 in. (1.0 mm) |
50 ft (15.2 m) |
| CPVC4050G | Carbon (46Ω/ft) | PVC (green) | 18 | 0.040 in. (1.0 mm) |
50 ft (15.2 m) |
| CPVC4050R | Carbon (46Ω/ft) | PVC (red) | 18 | 0.040 in. (1.0 mm) |
50 ft (15.2 m) |
| CPVC4050W | Carbon (46Ω/ft) | PVC (white) | 18 | 0.040 in. (1.0 mm) |
50 ft (15.2 m) |
| CU7T44G | Copper Alloy | Nylon/Polyurethane | 30 | 0.010 in. (0.20 mm) |
16.5 ft (5 m) |
| IN1003 | Indium | — | 30 | 0.01 in. (0.25 mm) |
3 ft (91 cm) |
| PT1002 | Platinum / Iridium | — | 30 | 0.010 in. (0.25 mm) |
2 ft (51 cm) |
| PT0402 | Platinum / Iridium | — | 38 | 0.004 in. (0.102 mm) |
2 ft (51 cm) |
| PT0203 | Platinum / Iridium | — | 44 | 0.002 in. (0.051 mm) |
3 ft (91 cm) |
| PT0110 | Platinum / Iridium | — | 50 | 0.001 in. (0.025 mm) |
10 ft (3 m) |
| PTP101 | Platinum | — | 30 | 0.010 in. (0.25 mm) |
1 ft (30 cm) |
| PTP201 | Platinum | — | 24 | 0.020 in. (0.5 mm) |
1 ft (30 cm) |
| PTP401 | Platinum | — | 18 | 0.039 in. (1.0 mm) |
1 ft (30 cm) |
| PTP406 | Platinum | — | 18 | 0.039 in. (1.0 mm) |
0.5 ft (15.2 cm) |
| PTT0502 | Platinum / Iridium | Teflon | 36 | 0.005 in. (0.125 mm)1 |
2 ft (51 cm) |
| PTT0402 | Platinum / Iridium | Teflon | 38 | 0.004 in. (0.102 mm)1 |
2 ft (51 cm) |
| PTT0203 | Platinum / Iridium | Teflon | 44 | 0.002 in. (0.051 mm)1 |
3 ft (91 cm) |
| PTT0110 | Platinum / Iridium | Teflon | 50 | 0.001 in. (0.025 mm)1 |
10 ft (3 m) |
| SS31614 | Stainless Steel | — | 27 | 0.014 in. (0.36 mm) |
30 ft (9.1 m) |
| SST30407-25 | Stainless Steel | Teflon | 33 | 0.007 in. (0.18 mm)3 |
25 ft (7.6 m) |
| SST30407-50 | Stainless Steel | Teflon | 33 | 0.007 in. (0.18 mm)3 | 50 ft (15.2 m) |
| TCK3050 | Thermocouple (Chromel + Alumel) |
Glass braid | 30 | 50 ft (15.2 m) |
|
| TGW0325 | Tungsten | — | 40 | 0.003 in. (0.075 mm) |
25 ft (7.6 m) |
| TGW0515 | Tungsten | — | 36 | 0.005 in. (0.125 mm) |
15 ft (4.6 m) |
| TGW1510 | Tungsten | — | 26-27 | 0.015 in. (0.38 mm) |
10 ft (3 m) |
| MAX3820 | Tinned Cu Alloy | Coaxial | 0.0173 in. (0.44 mm) |
20 ft (6 m)4 |
|
| MAX4020 | Tinned Cu Alloy | Twin Coaxial | 0.0158x0.024 in. (0.4x0.61mm) |
20 ft (6 m)5 |
*Brown & Sharpe
1 Plus 0.002 in. for Teflon coating
3 Teflon adds 0.00015 in. (4 μm) to diameter
4 Impedance: 50 ohm; capacitance: 95 pF/m; resistance: 5 ohm/m
5 Impedance: 100 ohm; capacitance: 54 pF/m; resistance: 1.9 ohm/m
AGT0510
SILVER: 36 AWG, 0.005 in. (0.125 mm) Diameter, 10 ft (3 m) long, Teflon coated
AGT05100
SILVER: 36 AWG, 0.005 in. (0.125 mm) Diameter, 100 ft (30 m) long, Teflon coated
AGT0525
SILVER: 36 AWG, 0.005 in. (0.125 mm) Diameter, 25 ft (7.6 m) long, Teflon coated
AGT1010
SILVER: 30 AWG, 0.010 in. (0.25 mm) Diameter, 10 ft (3 m) long, Teflon coated
AGT10100
SILVER: 30 AWG, 0.010 in. (0.25 mm) Diameter, 100 ft (30 m) long, Teflon coated
AGT1025
SILVER: 30 AWG, 0.010 in. (0.25 mm) Diameter, 25 ft (7.6 m) long, Teflon coated
AGT1510
SILVER: 26-27 AWG, 0.015 in. (0.38 mm) Diameter, 10 ft (3 m) long, Teflon coated
AGT1530
SILVER: 26-27 AWG, 0.015 in. (0.38 mm) Diameter, 30 ft (9.1 m) long, Teflon coated
AGW0510
SILVER:36 AWG; 0.005 in. (0.125 mm) Diameter; 10 ft (3 m) long
AGW0530
SILVER: 36 AWG; 0.005 in. (0.125 mm) Diameter; 30 ft (9.1 m) long
AGW1010
SILVER: 30 AWG; 0.010 in. (0.25 mm) Diameter; 10 ft (3 m) long
AGW1030
SILVER: 30 AWG; 0.010 in. (0.25 mm) Diameter; 30 ft (9.1 m) long
AGW1510
SILVER: 26-27 AWG; 0.015 in. (0.38 mm) Diameter; 10 ft (3 m) long
AGW1530
SILVER: 26-27 AWG; 0.015 in. (0.38 mm) Diameter; 30 ft (9.1 m) long
AGW2010
SILVER: 24 AWG; 0.020 in. (0.5 mm) Diameter; 10 ft (3 m) long
AGW2030
SILVER: 24 AWG; 0.020 in. (0.5 mm) Diameter; 30 ft (9.1 m) long
AGW4010
SILVER: 18 AWG; 0.040 in. (1.0 mm) Diameter; 10 ft (3 m) long (10 pieces of 30cm)
AUW201
GOLD: 24 AWG, 0.020 in. (0.5 mm) Diameter, 1 ft (30 cm) long
CPVC4050G
CARBON: 18 AWG, 0.040 in. (1.0 mm) Diameter, 50 ft (15 m) long. Carbon filament wire is made of 3,000 microscopic carbon strands in a green PVC jacket. 45.8 ohms/foot.
CPVC4050R
CARBON: 18 AWG, 0.040 in. (1.0 mm) Diameter, 50 ft (15 m) long. Carbon filament wire is made of 3,000 microscopic carbon strands in a red PVC jacket. 45.8 ohms/foot.
CPVC4050W
CARBON: 18 AWG, 0.040 in. (1.0 mm) Diameter, 50 ft (15 m) long. Carbon filament wire is made of 3,000 microscopic carbon strands in a white PVC jacket. 45.8 ohms/foot.
CPVC4050Y
CARBON: 18 AWG, 0.040 in. (1.0 mm) Diameter, 50 ft (15 m) long. Carbon filament wire is made of 3,000 microscopic carbon strands in a yellow PVC jacket. 45.8 ohms/foot.
PT0110
PLATIN/IRIDIUM: 50 AWG, 0.001 in. (0.025 mm) Diameter, 10 ft (3 m) long. Uncoated Platinum/iridium wire is an alloy of 90% platinum and 10% iridium, giving excellent tensile strength and corrosion resistance.
PT0203
PLATIN/IRIDIUM: 44 AWG, 0.002 in. (0.051 mm) Diameter, 3 ft (91 cm) long. Uncoated Platinum/iridium wire is an alloy of 90% platinum and 10% iridium, giving excellent tensile strength and corrosion resistance.
PT0402
PLATIN/IRIDIUM: 38 AWG, 0.004 in. (0.102 mm) Diameter, 2 ft (61 cm) long. Uncoated Platinum/iridium wire is an alloy of 90% platinum and 10% iridium, giving excellent tensile strength and corrosion resistance.
PTP101
PLATIN: 30 AWG, 0.010 in. (0.25 mm) Diameter, 1 ft (0.30 cm) long, uncoated.
PTP201
PLATIN: 24 AWG, 0.020 in. (0.5 mm) Diameter, 1 ft (0.30 cm) long, uncoated.
PTP401
PLATIN: 18 AWG, 0.039 in. (1.0 mm) Diameter, 1 ft (30 cm) long, uncoated.
PTP406
PLATIN: 18 AWG, 0.039 in. (1.0 mm) Diameter, 0.5 ft (15 cm) long, uncoated.
PTT0110
PLATIN/IRIDIUM: 50 AWG, 0.001 in. (0.025 mm) Diameter, 10 ft (3 m) long. Teflon-coated Platinum/iridium wire is an alloy of 90% platinum and 10% iridium, giving excellent tensile strength and corrosion resistance. Coating adds 0.002 inch to the diameter.
PTT0203
PLATIN/IRIDIUM: 44 AWG, 0.002 in. (0.051 mm) Diameter, 3 ft (91 cm) long. Teflon-coated Platinum/iridium wire is an alloy of 90% platinum and 10% iridium, giving excellent tensile strength and corrosion resistance. Coating adds 0.002 inch to the diameter.
PTT0502
PLATIN/IRIDIUM: 36 AWG, 0.005 in. (0.125 mm) Diameter, 2 ft (61 cm) long. Teflon-coated Platinum/iridium wire is an alloy of 90% platinum and 10% iridium, giving excellent tensile strength and corrosion resistance. Coating adds 0.002 inch to the diameter.
SS31605
Stainless Steel: 36 AWG, 0.005 in. (0.125 mm) Diameter, 50 ft (15.2 m) long, type 316. No coating.
SS31614
Stainless Steel 27 AWG
- 27 AWG
- 0.014 in. (0.36 mm) Diameter
- 30 ft (9.1 m) long
TGW0325
TUNGSTEN: 40 AWG, 0.003 in. (0.075 mm) diameter, 25 ft (7.6 m) long. Tungsten wire is 99.95% pure.
TGW0515
TUNGSTEN: 36 AWG, 0.005 in. (0.125 mm) diameter, 15 ft (4.6 m) long. Tungsten wire is 99.95% pure.
TGW1510
TUNGSTEN: 26-27 AWG, 0.015 in. (0.385 mm) diameter, 10 ft (3 m) long. Tungsten wire is 99.95% pure.
