Optima TXF200 Heated Circulating Bath

The Grant TXF200 series of digital heating circulating baths for sophisticated applications requiring complex programming and/or ultra-precise temperature control in the range of -15°C to 200°C.

Optima TXF200 Heated Circulating Bath

The TXF200 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.

Cooling/heating range -15°C to 200°C
Cooling achievable with optional immersion cooler (see accessory options)
Stability ±0.01ºC / Uniformity ±0.05ºC
Tank options 5L to 38L
Powerful integral pump for external fluid circulation
Large, bright full colour display with a choice of 5 languages
5 point user calibration
Low-liquid detection (float switch)
Memory capacity for 10 programs with 100 segments
‍

Relay output to enable control of an external device, typically a Grant refrigerated chiller or an external alarm.

Specifications

Dimensions (h x d x w)	342 x 172 x 141mm
Stability (DIN 12876) @70ºC	0.01±ºC
Uniformity (DIN 12876) @70ºC	0.05±ºC
Setting resolution	0.1ºC (0.01 with Labwise®)
Display	Full colour QVGA TFT
Timer function	1 minutes to 99 hours 59 minutes
No. of temperature presets	3
Re-calibration points	5
Socket for external probe (PEP, SEP)	•
Communications interface	USB, RS232
Programmable	Direct via user interface or remote via PC/ laptop 10 programs/ 100 segments
Relays	1
Safety - over temperature	Adjustable cut-out
Fluid level - float	•
Language options	EN, FR, DE, IT, ES
Alarms (can be configured to switch a relay)High and low	High and low
Heater power - 230V	1840W
Heater power - 120V	1445W
Electrical power - 230V	2000 (50-60Hz)
Electrical power - 120V	1500 (50-60Hz)
Height above tank rim	200mm
Depth below tank rim	145mm
Maximum pressure (water)	530mbar
Maximum flow (water)	22L/min (adjustable flow rate)
Pump connector 6mm bore	Fits 9mm inner diameter tubing
Pump connector 11mm bore	Fits 15mm inner diameter tubing
Weight	2.6kg

* Operation at or below ambient requires optional accessory cooling - contact us for more details

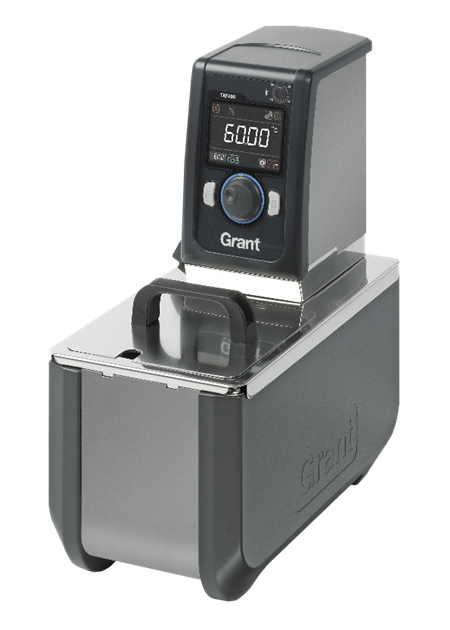

TXF200-ST5

5l stainless steel tank & TXF200 immersion thermostat, ambient +15°C to 200°C

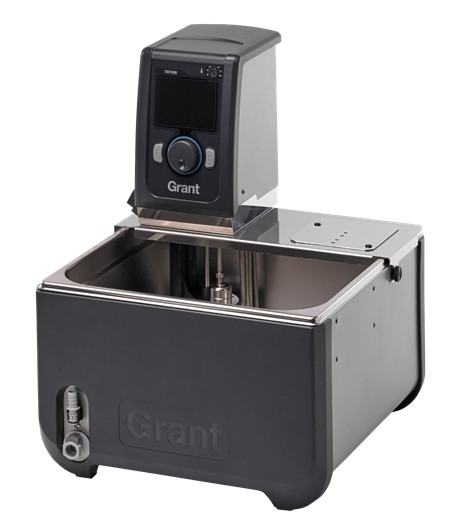

TXF200-ST12

12l stainless steel tank & TXF200 immersion thermostat, 0°C* to 200°C

TXF200-ST18

18l stainless steel tank & TXF200 immersion thermostat, 0°C* to 200°C

TXF200-ST26

26l stainless steel tank & TXF200 immersion thermostat, -15°C* to 200°C

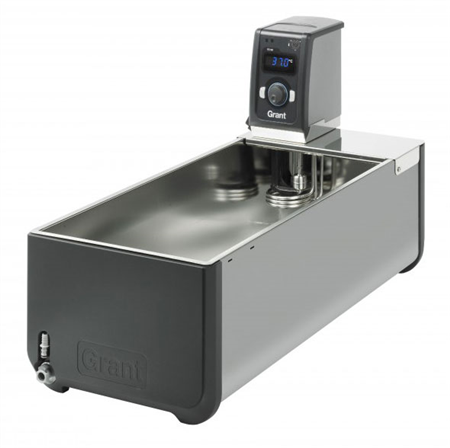

TXF200-ST38

38l stainless steel tank & TXF200 immersion thermostat, -15°C* to 200°C
