Optima TC120 Heated Circulating Bath

The Grant TC120 series of digital heating circulating baths for general applications requiring precision temperature control in the range of -15°C to 120°C.

Optima TC120 Heated Circulating Bath

The TC120 heating circulator can be used in combination with any Grant stainless steel or with a T-Clamp for independent use of virtually any vertical sided tank.

Cooling/heating range -15°C to 120°C
Cooling achievable with optional immersion cooler (see accessory options)
Stability ±0.05ºC / Uniformity ±0.1ºC
Tank options 5L to 38L
Simple, intuitive user interface: dial and two function buttons
3 programmable temperature presets
Clear, bright 4 digit LED display
Low level protection and adjustable over temperature cut out
Countdown timer with audible alarm

Specifications

Dimensions (h x d x w)	333 x 172 x 141mm
Stability (DIN 12876) @70ºC	0.05±ºC
Uniformity (DIN 12876) @70ºC	0.1±ºC
Setting resolution	0.1ºC
Display	4 digit LED
Timer function	1 minutes to 99 hours 59 minutes
No. of temperature presets	3
Re-calibration points	2
Socket for external probe (TXPEP, TXSEP)	–
Programmable	–
Relays	–
Safety – over temperature	Adjustable cut-out
Fluid level – float	•
Language options	–
Alarms (can be configured to switch a relay)	High (no relay)
Heater power – 230V	1290W
Heater power – 120V1440W	1440W
Electrical power – 230V	1400 (50-60Hz)
Electrical power – 120V	1500 (50-60Hz)
Height above tank rim	20mm
Depth below tank rim	135mm
Maximum pressure (water)	210mbar
Maximum flow (water)	16L/min
Pump connector 6mm bore	Fits 9mm inner diameter tubing
Pump connector 11mm bore	Fits 15mm inner diameter tubing
Weight	2.3kg

* Operation at or below ambient requires optional accessory cooling - contact us for more details

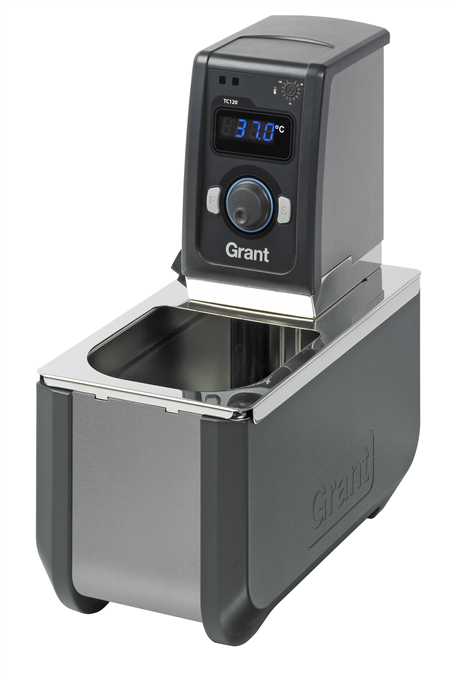

TC120-ST5

5l stainless steel tank & TC120 immersion thermostat, ambient +15°C to 120°C

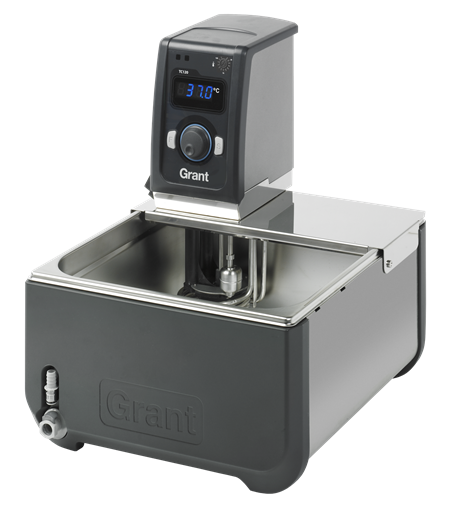

TC120-ST12

12l stainless steel tank & TC120 immersion thermostat, 0°C* to 120°C

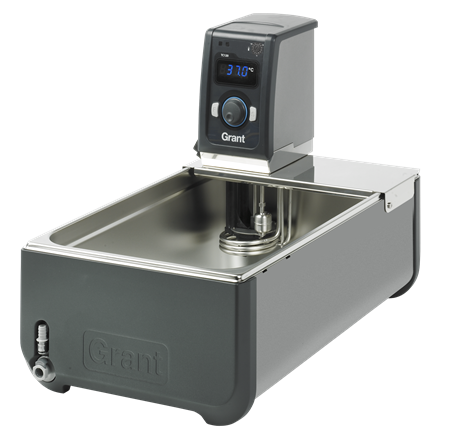

TC120-ST18

18l stainless steel tank & TC120 immersion thermostat, 0°C* to 120°C

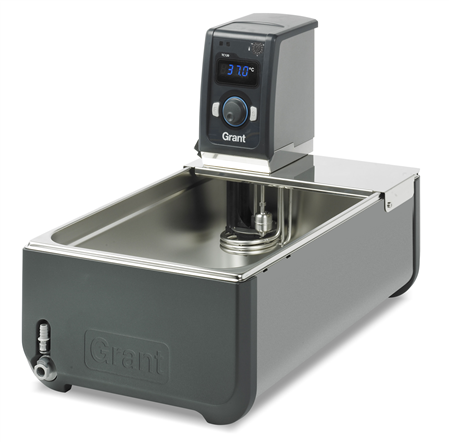

TC120-ST26

26l stainless steel tank & TC120 immersion thermostat, -15°C* to 120°C

TC120-ST38

38l stainless steel tank & TC120 immersion thermostat, -15°C* to 120°C
