Home > Products > Laboratory Supplies > Heated Circulating Baths > Optima T100 Heated Circulating Bath

Optima T100 Heated Circulating Bath

The Grant T100 series of general purpose heating circulating baths offer accurate temperate control for straightforward applications in the range of 0°C to 100°C.

The T100 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.

Cooling/heating range 0°C to 100°C
Cooling achievable with optional immersion cooler (see accessory options)
Stability ±0.05ºC / Uniformity ±0.1ºC
Tank options 5L to 38L. Custom options available upon request
3 programmable temperature pre-sets
Low liquid protection and fixed over temperature cut-out
Visual alarm – alerts you when your attention is required
Clear, bright 4 digit LED display

Specifications

Dimensions (h x d x w)	333 x 172 x 120mm
Stability (DIN 12876) @70ºC	0.05±ºC
Uniformity (DIN 12876) @70ºC	0.1±ºC
Setting resolution	0.1ºC
Display	4 digit LED
Timer function	–
No. of temperature presets	3
Re-calibration points	2
Socket for external probe (TXPEP, TXSEP)	–
Communications interface	–
Programmable	–
Relays	–
Safety – over temperature	Fixed
Fluid level – float	•
Language options	–
Alarms (can be configured to switch a relay)	–
Heater power – 230V	1290W
Heater power – 120V	1440W
Electrical power – 230V	1400 (50-60Hz)
Electrical power – 120V	1500 (50-60Hz)
Height above tank rim	200mm
Depth below tank rim	135mm
Maximum pressure (water)	–
Maximum flow (water)	–
Pump connector 6mm bore	–
Pump connector 9mm bore	–
Weight	2.1kg

* Operation at or below ambient requires optional accessory cooling - contact us for more details

T100-ST5

T100-ST5 5l stainless steel tank & immersion thermostat, ambient +15°C to 100°C

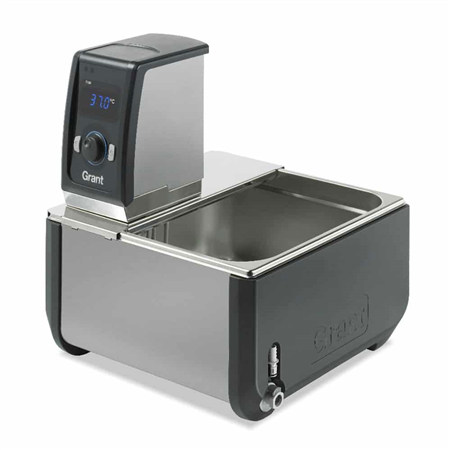

T100-ST12

T100-ST12 12l stainless steel tank & immersion thermostat, 0°C* to 100°C

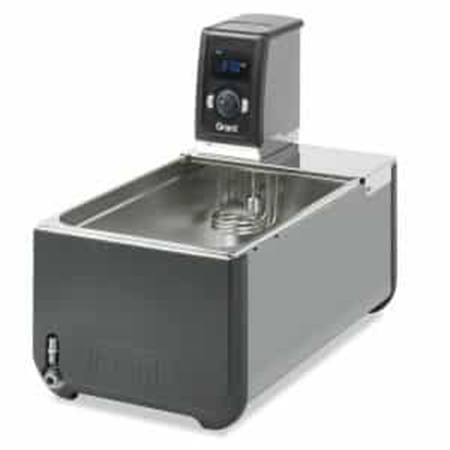

T100-ST18

T100-ST18 18l stainless steel tank & immersion thermostat, 0°C* to 100°C

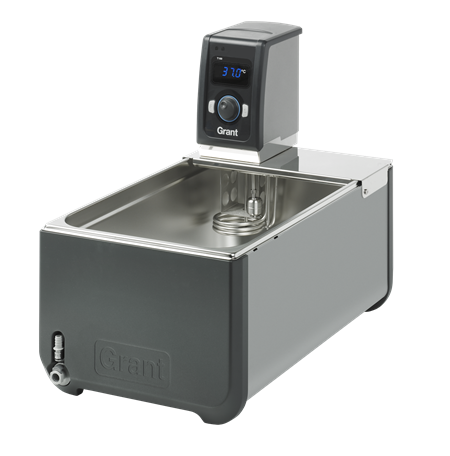

T100-ST26

T100-ST26 26l stainless steel tank & immersion thermostat, 0°C* to 100°C

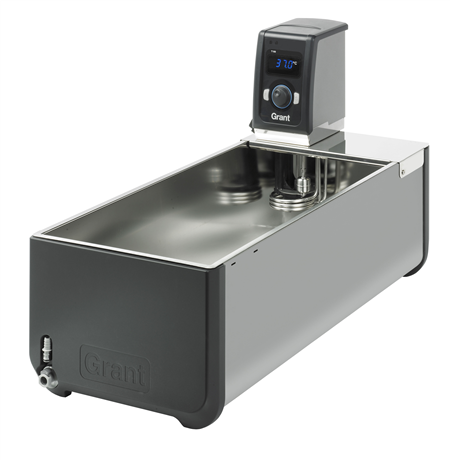

T100-ST38

T100-ST38 38l stainless steel tank & immersion thermostat, 0°C* to 100°C
