Quartz Glass

Quartz glass has great electrical and mechanical properties. It offers the lowest dielectric constant, the lowest loss factor and the highest volume resistivity making it ideal for patch clamp recording.

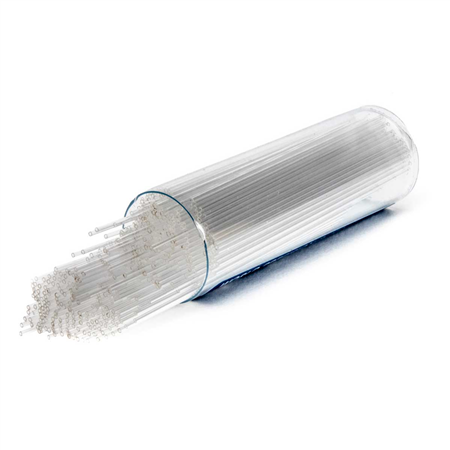

Quartz Glass Capillaries (Heraeus HSQ300)

The finest and purest glass available is quartz. It is superior to all other glasses in its mechanical, electrical and optical qualities. It has the lowest dielectric constant, the lowest loss factor and the highest volume resistivity making it ideal for patch clamp recording. Its chemical purity virtually eliminates leakage of ions** and by using quartz in single channel patch clamp recordings the lowest background noise levels have been achieved***. Due to its high melting point, it cannot be pulled on conventional pullers. However, it can be pulled easily with the Sutter CO2 laser-based P-2000/G.



Order code	Length	OD (mm)	ID (mm)	Filament	Fire Polished	Qty
Q100-30-15	15 cm	1.00 mm	0.30 mm		•	100
Q100-30-7.5	7.5 cm	1.00 mm	0.30 mm		•	100
Q100-50-10	10 cm	1.00 mm	0.50 mm		•	100
Q100-50-7.5	7.5 cm	1.00 mm	0.50 mm		•	100
QF100-50-10	10 cm	1.00 mm	0.50 mm	•		100
QF100-50-7.5	7.5 cm	1.00 mm	0.50 mm	•		100
QF100-60-10	10 cm	1.00 mm	0.60 mm	•		100
QF100-60-7.5	7.5 cm	1.00 mm	0.60 mm	•		100
Q100-70-10	10 cm	1.00 mm	0.70 mm		•	100
Q100-70-7.5	7.5 cm	1.00 mm	0.70 mm		•	100
QF100-70-10	10 cm	1.00 mm	0.70 mm	•		100
QF100-70-15	15 cm	1.00 mm	0.70 mm	•		100
QF100-70-7.5	7.5 cm	1.00 mm	0.70 mm	•		100
Q114-53-10NP	10 cm	1.14 mm	0.53 mm			100
Q120-40-7.5	7.5 cm	1.20 mm	0.40 mm		•	100
Q120-60-7.5	7.5 cm	1.20 mm	0.60 mm		•	100
QF120-60-10	10 cm	1.20 mm	0.60 mm	•		100
QF120-60-7.5	7.5 cm	1.20 mm	0.60 mm	•		100
Q120-90-10	10 cm	1.20 mm	0.90 mm		•	100
Q120-90-7.5	7.5 cm	1.20 mm	0.90 mm		•	100
QF120-90-10	10 cm	1.20 mm	0.90 mm	•		100
QT120-90-7.5	7.5 cm	1.20/0.9 mm	0.15 mm		•	50
Q150-50-7.5	7.5 cm	1.50 mm	0.50 mm		•	100
Q150-75-10	10 cm	1.50 mm	0.75 mm		•	100
Q150-75-7.5	7.5 cm	1.50 mm	0.75 mm		•	100
QF150-75-10	10 cm	1.50 mm	0.75 mm	•		100
QF150-75-7.5	7.5 cm	1.50 mm	0.75 mm	•		100
Q150-110-10	10 cm	1.50 mm	1.10 mm		•	100
Q165-115-10	10 cm	1.65 mm	1.15 mm		•	100
QR100-10	10 cm	solid	1.00 mm		•	100
QR100-15	15 cm	solid	1.00 mm		•	100
QR100-7.5	7.5 cm	solid	1.00 mm		•	100



* ASTM Designation E438-90 - April 1990

** Zuazaga C., Steinacker A. Patch-clamp recording of ion channels: Interfering effects of patch pipette glass. News in Physiological Sciences: International Union of Physiological Sciences and the American Physiological Society: 5:155-158, August 1990

*** Rae, James L., Levis Richard A. A Method for exceptionally low noise single channel recordings. Pflügers Archive; European Journal of Physiology:420:618-620, Springer-Verlag 1992

---
