Multi-Barrel Glass Capillaries
Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.
Borosilicate glass capillaries: Close dimensional tolerances assure microelectrode uniformity and reproducibility. Capillaries are available in 1, 2, 3, 5 and 7-barrel configurations, complete range of single barrel thin-wall sizes and a variety of special configurations. Capillaries with filaments contain a solid filament fused to the inner wall, which speeds filling of electrodes. Capillaries with or without inner filaments are available for making microelectrodes in a wide range of diameters.
Applications
- Microiontophoresis
- Microinjection
- Electrophysiology
- Patch clamp
- Fluid Handling
Options
| Order code | Length | Description | OD/ID (mm) | Filament | Quantity |
| 2BF100-50-10 | 10 cm | 2 barrels | 1.00/0.50 | • | 75 |
| 2BF100-75-10 | 10 cm | 2 barrels | 1.00/0.75 | • | 75 |
| 2BF150-86-10 | 10 cm | 2 barrels | 1.50/0.86 | • | 100 |
| 2BF150-86-15 | 15 cm | 2 barrels | 1.50/0.86 | • | 100 |
| 2B150F-4 | 4 in. (102mm) | 2-barrels | 1.5/0.84 | • | 100 |
| 2B150F-6 | 6 in. (152mm) | 2-barrels | 1.5/0.84 | • | 100 |
| 3B100-75-10 | 10 cm | 3 barrels | 1.00/0.75 | 75 | |
| 3BF100-50-10 | 10 cm | 3 barrels | 1.00/0.50 | • | 75 |
| 3BF100-75-10 | 10 cm | 3 barrels | 1.00/0.75 | • | 75 |
| 3BF120-69-10 | 10 cm | 3 barrels | 1.20/0.69 | • | 100 |
| 3BF120-69-15 | 15 cm | 3 barrels | 1.20/0.69 | • | 100 |
| 3B120F-4 | 4 in. (102mm) | 3-barrels | 1.2/0.68 | • | 100 |
| 3B120F-6 | 6 in. (152mm) | 3-barrels | 1.2/0.68 | • | 100 |
| 4B100-75-10 | 10 cm | 4 barrels | 1.00/0.75 | 75 | |
| 5B120F-4 | 4 in. (102mm) | 5-barrels | 1.2/0.68 | • | 65 |
| 7B100F-4 | 4 in. (102mm) | 7-barrels | 1.0/0.58 | • | 60 |
| 7B120F-4 | 4 in. (102mm) | 7-barrels | 1.2/0.68 | • | 75 |
| 7B100F-6 | 6 in. (152mm) | 7-barrels | 1.0/0.58 | • | 60 |
- OD/ID Tolerance: ±0.1 mm
- Length Tolerance: ±1 mm
- Recommended to use with Glass Handling Forceps (77020)

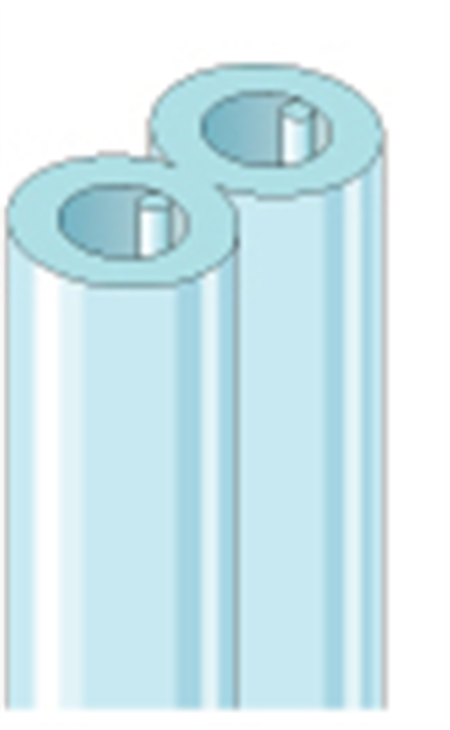

2B150F-4
Two-Barrel Capillary Glass. Length 4 in. (102 mm). 1.5/0.84 OD/ID (mm). With Filament. Pack of 100. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.
2B150F-6
Two-Barrel Capillary Glass. Length 6 in. (152 mm). 1.5/0.84 OD/ID (mm). With Filament. Pack of 100. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.

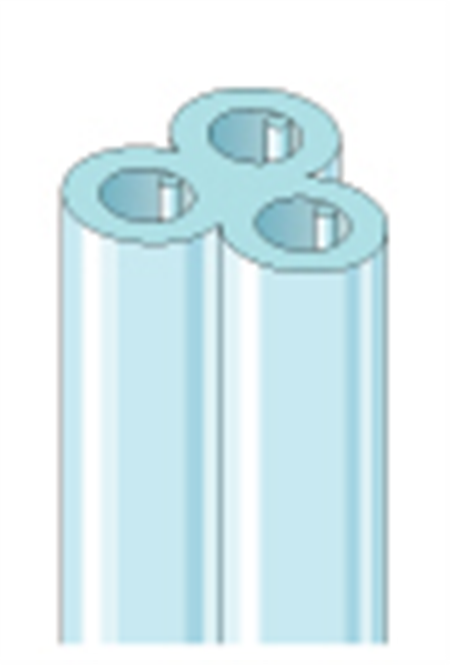

3B120F-4
Three-Barrel Capillary Glass. Length 4 in. (102 mm). 1.2/0.68 OD/ID (mm). With Filament. Pack of 100. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.
3B120F-6
Three-Barrel Capillary Glass. Length 6 in. (152 mm). 1.2/0.68 OD/ID (mm). With Filament. Pack of 100. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.

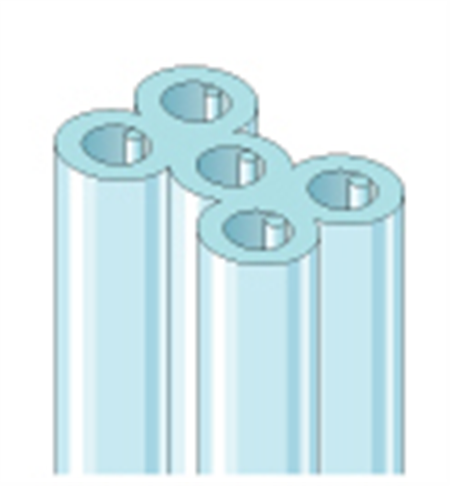

5B120F-4
Five-Barrel Capillary Glass. Length 4 in. (102 mm). 1.2/0.68 OD/ID (mm). With Filament. Pack of 65. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.
5B120F-6
Five-Barrel Capillary Glass. Length 6 in. (152 mm). 1.2/0.68 OD/ID (mm). With Filament. Pack of 65. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.

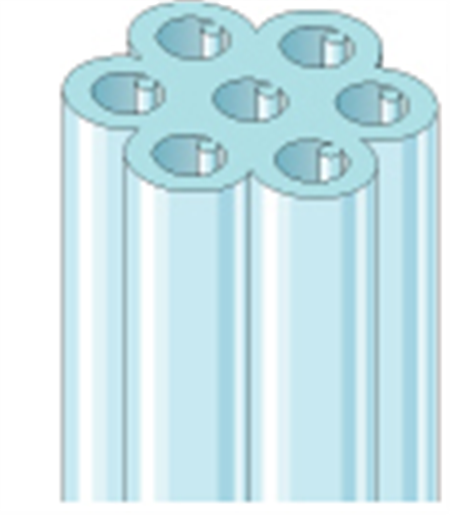

7B100F-4
Seven-Barrel Capillary Glass. Length 4 in. (102 mm). 1.0/0.58 OD/ID (mm). With Filament. Pack of 60. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.
7B100F-6
Seven-Barrel Capillary Glass. Length 6 in. (152 mm). 1.0/0.58 OD/ID (mm). With Filament. Pack of 60. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.
7B120F-4
Seven-Barrel Capillary Glass. Length 4 in. (102 mm). 1.2/0.68 OD/ID (mm). With Filament. Pack of 75. Multi-barrel configurations are designed especially for microiontophoresis. Because the capillaries are fused together during manufacture, you will not need to twist them while pulling to seal the tips together. An inner filament in each barrel makes filling easy and fast.
2BF100-50-10
Multibarrel Borosilicate Glass, with Filament: 2 barrels OD, 1.00/0.50 ID, 10 cm long, 75 units per pack
2BF100-75-10
Multibarrel Borosilicate Glass, with Filament: 2 barrels OD, 1.00/0.75 ID, 10 cm long, 75 units per pack
2BF150-86-10
Multibarrel Borosilicate Glass, with Filament: 2 barrels OD, 1.50/0.86 ID, 10 cm long, 100 units per pack
2BF150-86-15
Multibarrel Borosilicate Glass, with Filament: 2 barrels OD, 1.50/0.86 ID, 15 cm long, 100 units per pack
3B100-75-10
Multibarrel Borosilicate Glass, without Filament: 3 barrels OD, 1.00/0.75 ID, 10 cm long, 75 units per pack
3BF100-50-10
Multibarrel Borosilicate Glass, with Filament: 3 barrels OD, 1.00/0.50 ID, 10 cm long, 75 units per pack
3BF100-75-10
Multibarrel Borosilicate Glass, with Filament: 3 barrels OD, 1.00/0.75 ID, 10 cm long, 75 units per pack
3BF120-69-10
Multibarrel Borosilicate Glass, with Filament: 3 barrels OD, 1.20/0.69 ID, 10 cm long, 100 units per pack
3BF120-69-15
Multibarrel Borosilicate Glass, with Filament: 3 barrels OD, 1.20/0.69 ID, 15 cm long, 100 units per pack
4B100-75-10
Multibarrel Borosilicate Glass, without Filament: 4 barrels OD, 1.00/0.75 ID, 10 cm long, 75 units per pack
7Q033-16-10
Multibarrel Quartz Glass: 7 barrel , 1.00/[.33/.16 ea] OD/ID in mm, 10 cm long, 50 units per pack
