Ag-AgCl Half-Cells

Half Cell and reference cell electrodes for laboratory research

Reference Cells

New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

Options

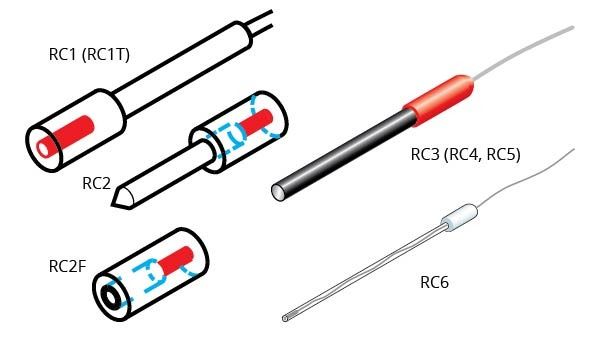

Order code	Diagram	Description
RC1		4 ft. Lead
RC1T		4 ft. Lead 2.0mm Pin
RC2		2.0mm Pin

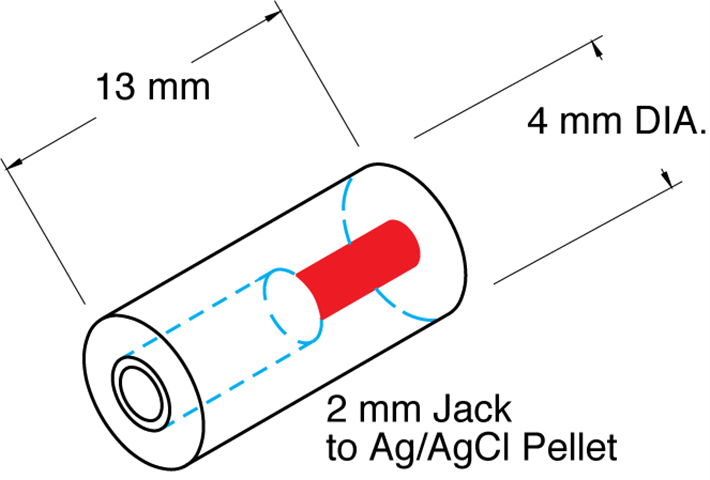

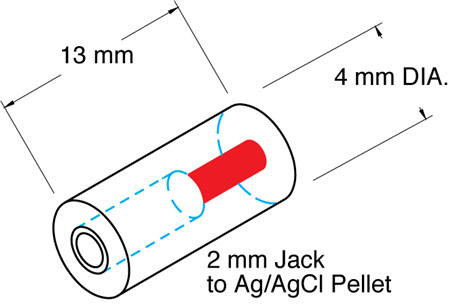

RC2F		Female connector

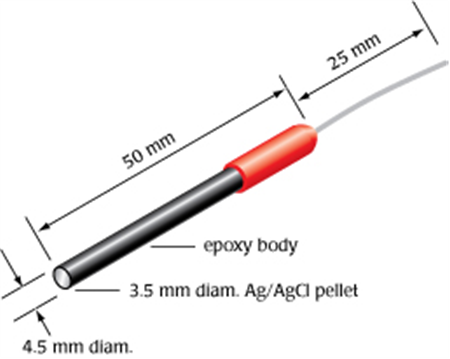

RC3		Epoxy body 4.5mm diameter 50mm long
RC6		Glass body 1.5mm diameter 50mm long

Ag/AgCl Half Cell Electrode

Silver/Silver Chloride half cells ideal for use as bath electrodes
Low resistance and high strength
Stable and well balanced in the presence of current

Options

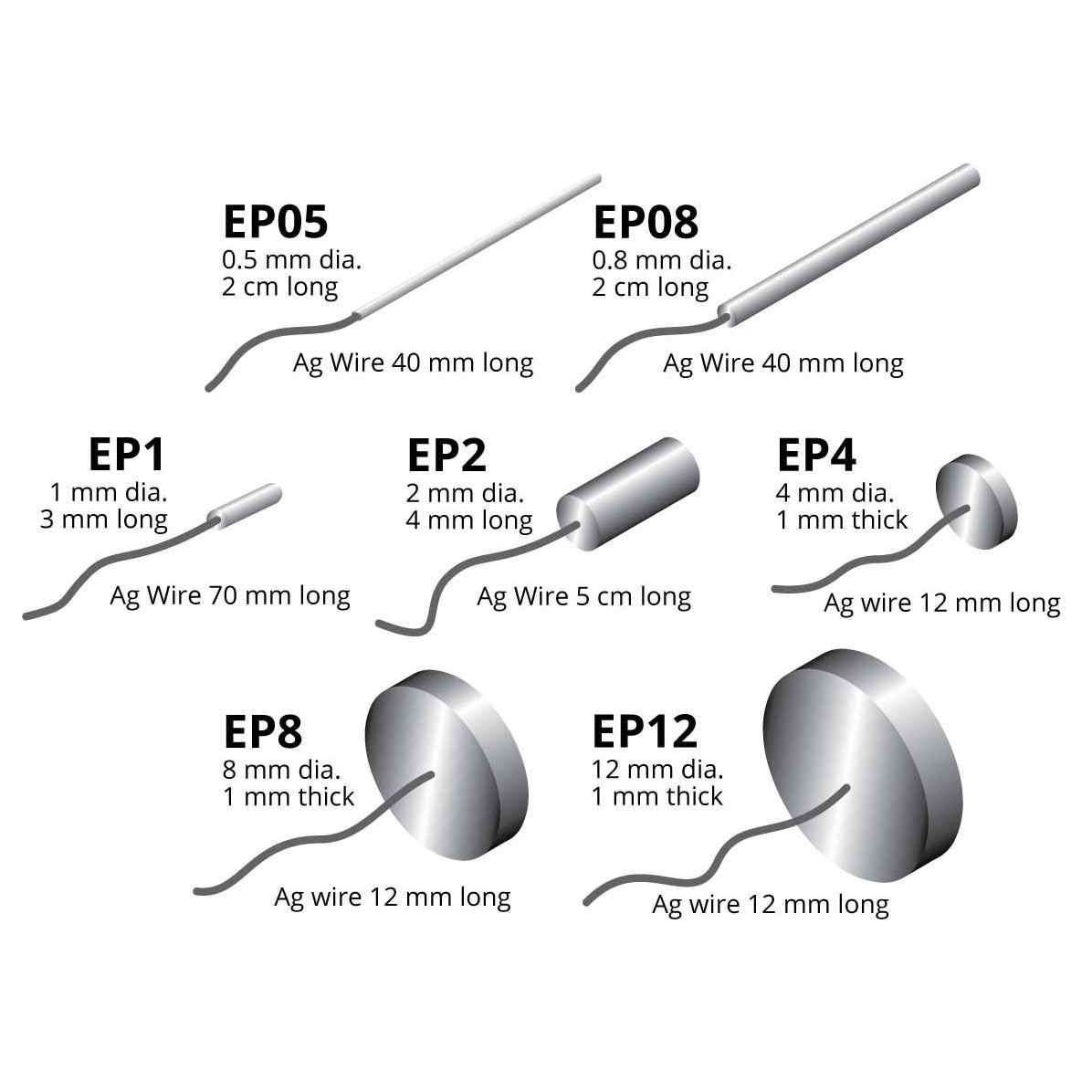

Order code	Image	Description

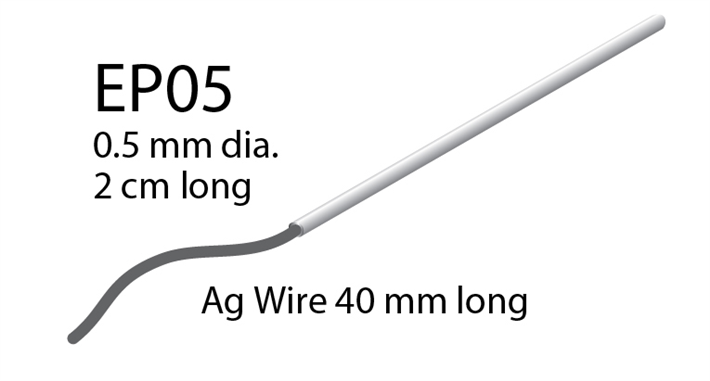

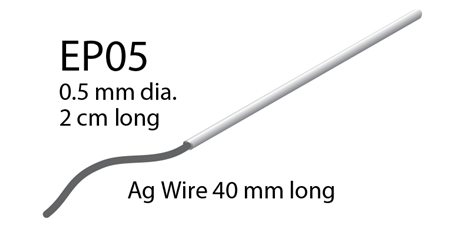

EP05		0.5mm Φ x 20mm 40mm long silver wire 0.250 μm diameter

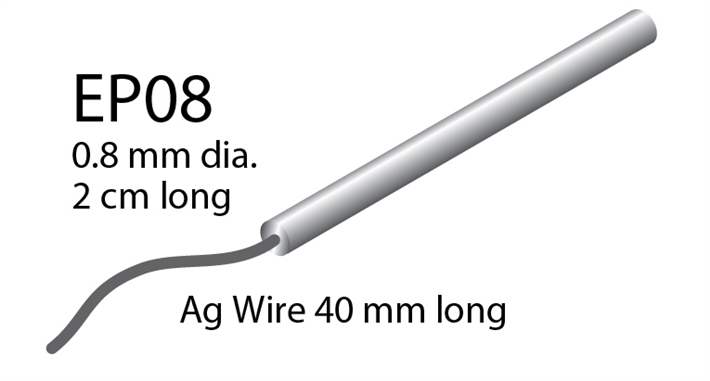

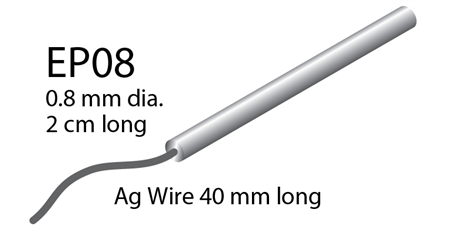

EP08		0.8mm Φ x 20mm 40mm long silver wire 0.250 μm diameter

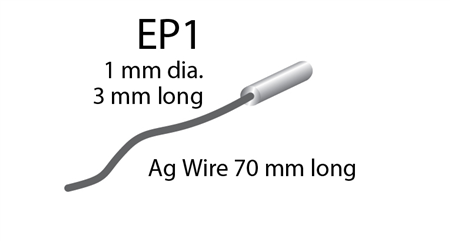

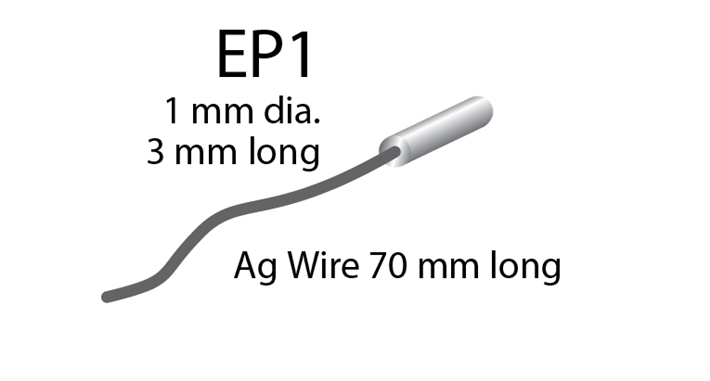

EP1		1.0mm Φ x 3mm 70mm long silver wire 0.250 μm diameter

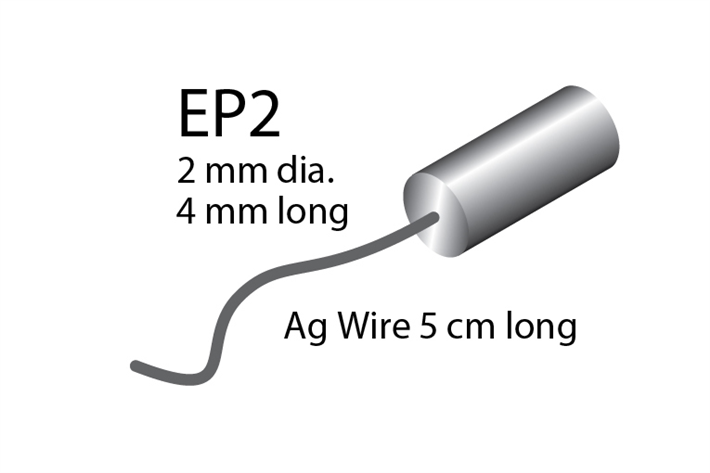

EP2		2.0mm Φ x 4mm 5cm long silver wire 0.250 μm diameter

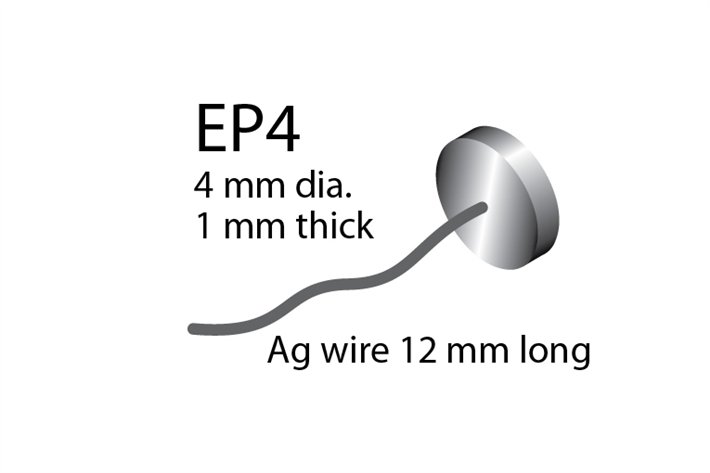

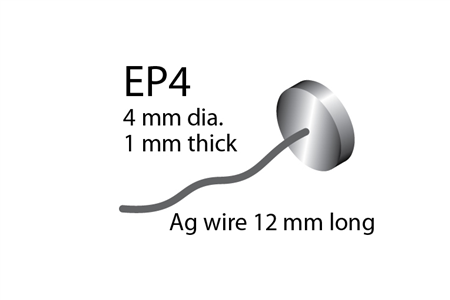

EP4		4.0mm Φ x 1mm 12mm long silver wire 0.250 μm diameter

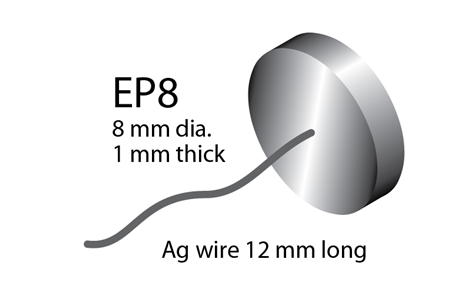

EP8		8.0mm Φ x 1mm 12mm long silver wire 0.250 μm diameter

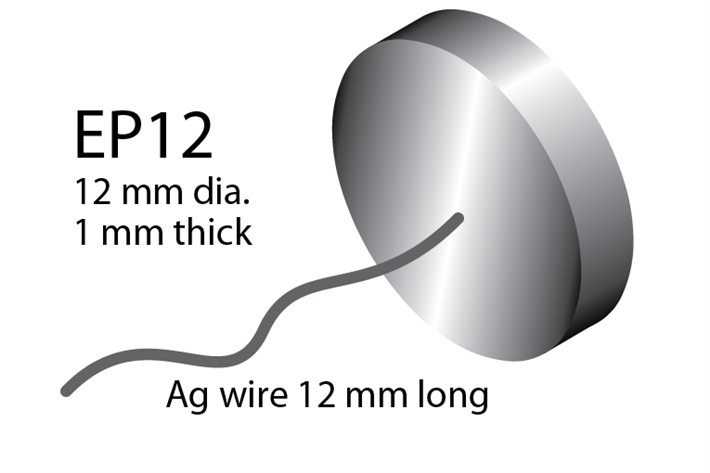

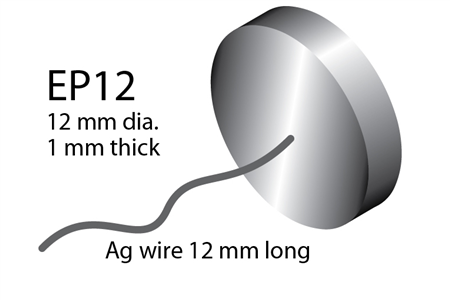

EP12		12.0mm Φ x 1mm 12mm long silver wire 0.250 μm diameter

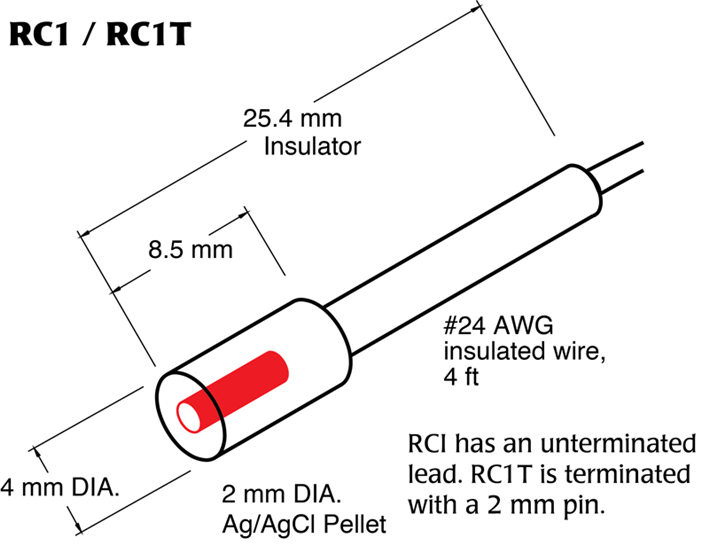

RC1

Reference Cell with 1.5 m lead. New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

RC1T

Reference Cell with 1.5 m lead, 2.0 mm pin. New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

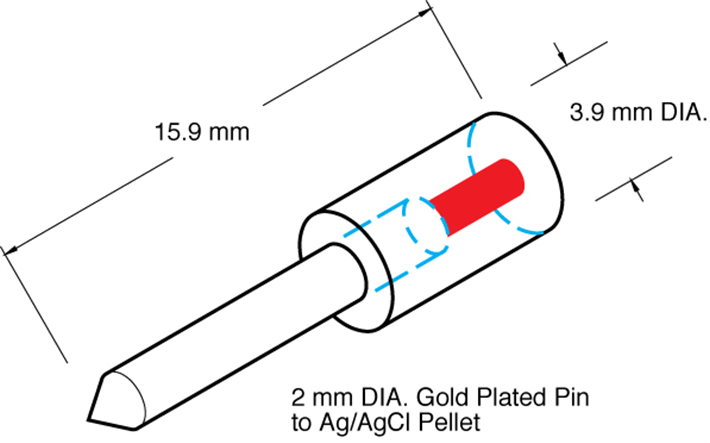

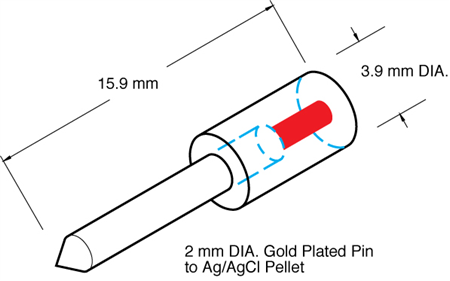

RC2

Reference Cell with 2.0 mm pin. New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

RC2F

Reference Cell with female connector. New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

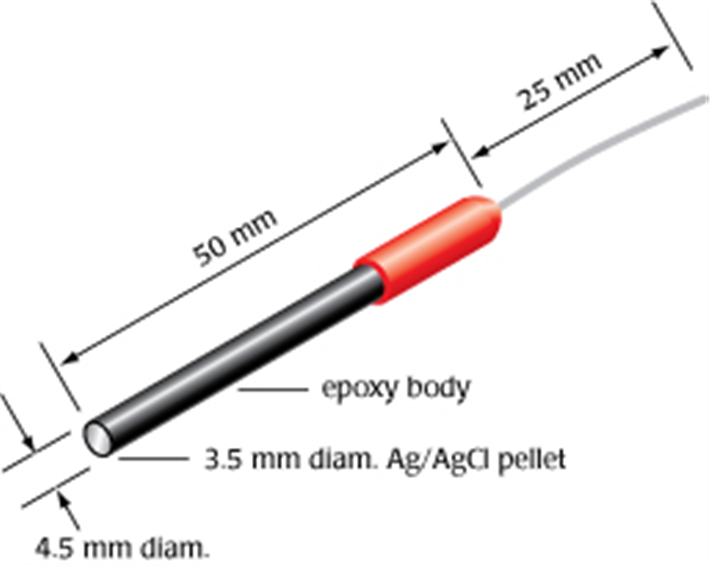

RC3

Reference Cell with Epoxy body. 4.5 mm diameter x 50 mm. New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

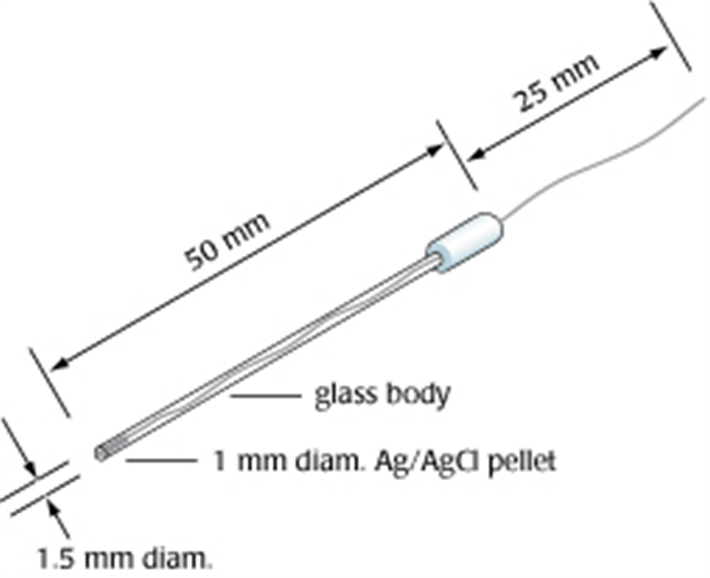

RC6

Reference Cell with Glass body. 1.5 mm diameter x 50 mm. New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.
