Ussing System
WPI's Ussing Systems offers researchers a quick. effective means of making low-resistance electrical connections to the Ussing chamber without need of long agar bridges or Calomel half cells.
xxxxD
Drain option to allow quick and complete evacuation of radioactive or toxic substances. Add "D" to part number of Chamber or Ussing System when ordering.
.png)
EK1
Ussing Electrode Kit (Includes 2 voltage, 2 current electrodes)
The Electrode ...

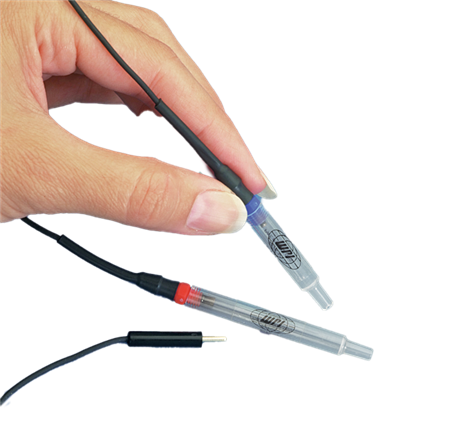

EKC
Extra Ussing Current Electrode -
Current (red) electrodes are threaded and screw securely into the end of each Luer tipped cartridge. The Luer tip then plugs securely into the Luer openings of the chamber. The cable from each electrode terminates with a 2 mm pin which may be plugged into most current clamps.
The miniature electrode-gel cartridge is a small plastic tube with a male Luer tip identical to those at the tip of hypodermic syringes. The tube may be filled with different gel materials. Agar is commonly used, but other gel materials may also be satisfactory.
- Ussing chamber current electrode
- Red tip
- 2 mm Pin
- Works with most voltage/current clamps
- Package of 1

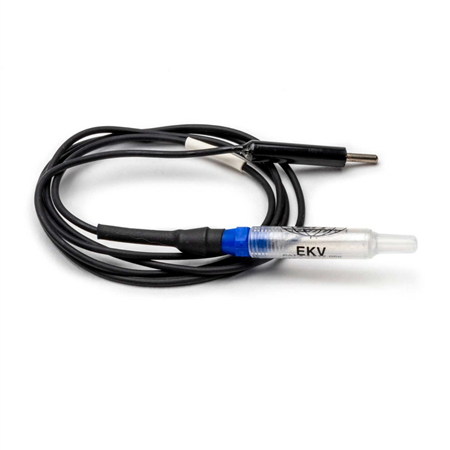

EKV
Extra Ussing Voltage Electrode -
Voltage (black) electrodes are threaded and screw securely into the end of each Luer tipped cartridge. The Luer tip then plugs securely into the Luer openings of the chamber. The cable from each electrode terminates with a 2 mm pin which may be plugged into most voltage clamps.
The miniature electrode-gel cartridge is a small plastic tube with a male Luer tip identical to those at the tip of hypodermic syringes. The tube may be filled with different gel materials. Agar is commonly used, but other gel materials may also be satisfactory.
- Ussing chamber voltage electrode
- Black tip
- 2 mm Pin
- Works with most voltage/current clamps
- Package of 1

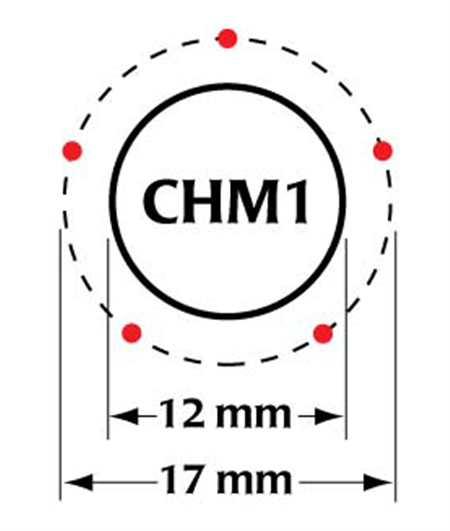

CHM1
Medium Chamber for Ussing System. Reservoir Opening: 12mm. Half-Chamber Volume: 1.0 mL. Pin Circle Diameter: 17 mm.

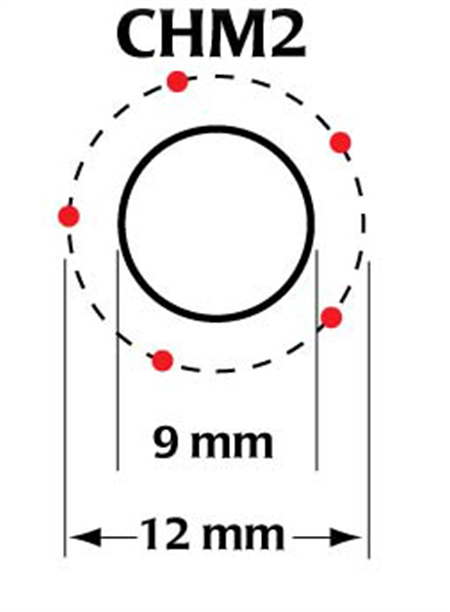

CHM2
Small Chamber for Ussing System. Reservoir Opening: 9mm. Half-Chamber Volume: 0.75 mL. Pin Circle Diameter: 12 mm.

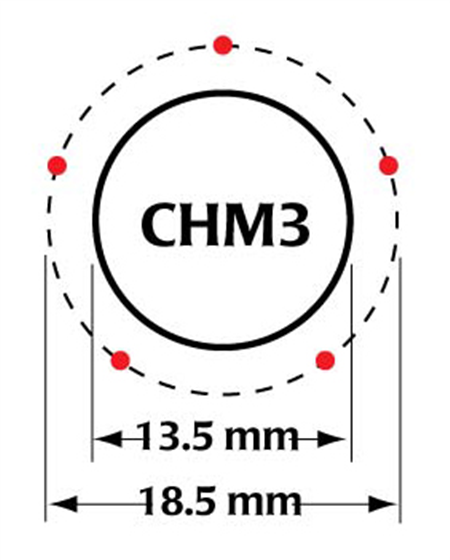

CHM3
Large Chamber for Ussing System. Reservoir Opening: 13.5mm. Half-Chamber Volume: 1.2 mL. Pin Circle Diameter: 18.5 mm.

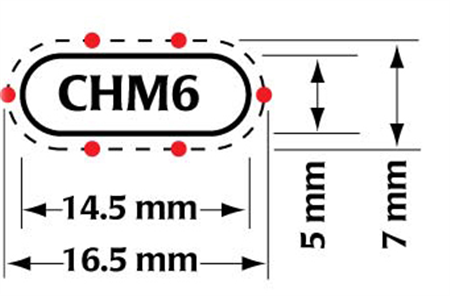

CHM6
Small Rectangular Chamber for Ussing System. Reservoir Opening: 5 x 14.5 mm. Half-Chamber Volume: 0.8 mL. Pin Circle Diameter: 7 x 16.5 mm. This small chamber with rectangular openings was designed for tubular tissue from small animals such as the mouse intestinal tract membrane.

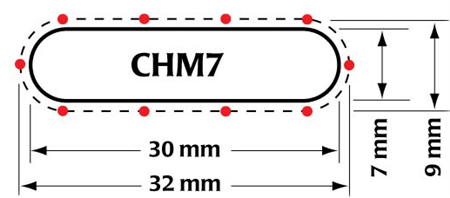

CHM7
Large Rectangular Chamber for Ussing System. Reservoir Opening: 7 x 30 mm. Half-Chamber Volume: 5.5 mL. Pin Circle Diameter: 9 x 32 mm. This small chamber with rectangular openings was designed for rat intestinal tract membrane.

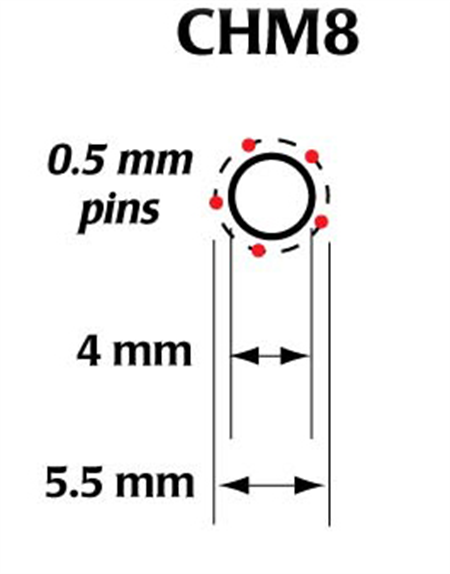

CHM8
Extra Small Chamber for Ussing System. Reservoir Opening: 4 mm. Half-Chamber Volume: 0.5 mL. Pin Circle Diameter: 5.5 mm.

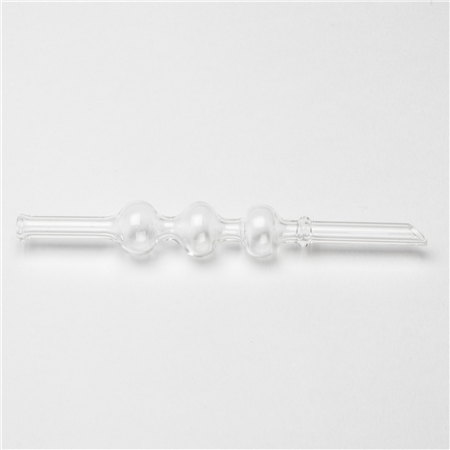

5233
Replacement Condenser for Large Glass Circulation Reservoir (#5210).

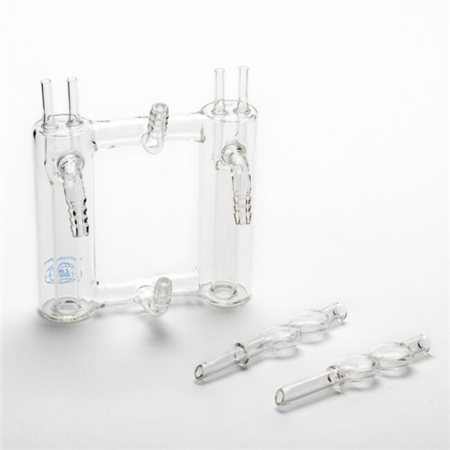

5362
Small Glass Circulation Reservoir. Hand-blown borosilicate glass, with jacketed chambers for temerature control. 5362 holds 10mL per side. This is useful when expensive chemicals are involved. Reservoir condenser caps prevent air bubbles and turbulence in fluid reservoirs.

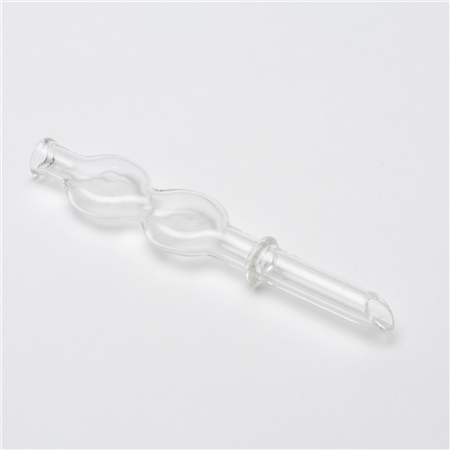

5361
Replacement Condenser for Small Glass Circulation Reservoir (#5362).

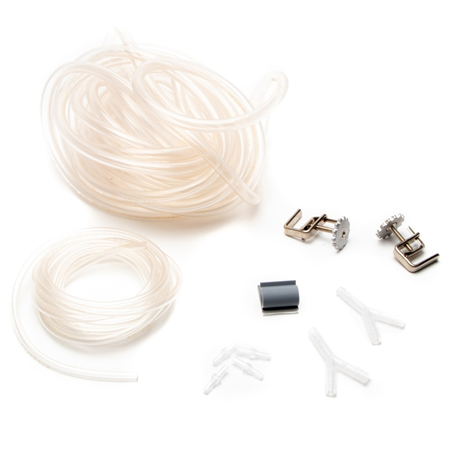

3669
Tubing Kit. Flexible hose and luer fittings.

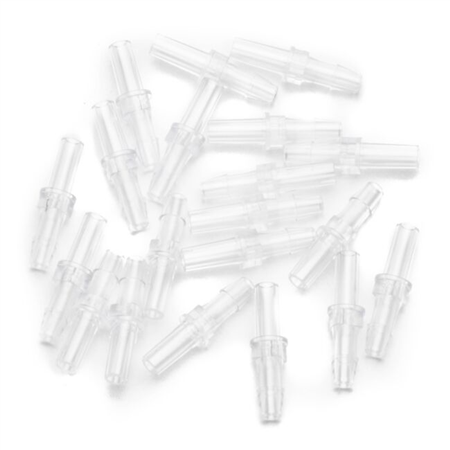

3579-20
Replacement luer fittings for tubing connections. Package of 20.

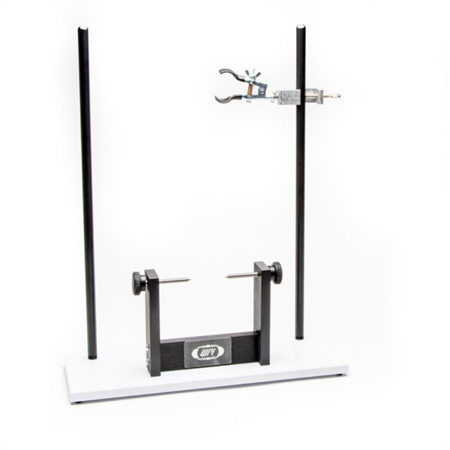

5153
Support Stand for Ussing System.
