STXF-WSKMX-SET

Overview

• For manual/motorized stage with 160 x 110mm opening

• With built-in analog flow meter for premixed gas cylinder use (5%CO2+95%Air)

• Sample temperature:30~40°C with Real-time Sample Feedback Regulation

• Includes Dish Attachments and Fixing Lids as standard (For well-plate, 35mm dish, 60mm dish, slide glass/chamber slide/chambered coverglass)



Includes:

• WSKMX Chamber
• Lens Heater
• Controller
• Attachments and Lids for 35/50/60mm dish, chamber slide/coverglass, multi-wellplate
• Feedback Sensor
• Extension Wire for Sensor
• Software STX-APP Install CD
• USB Cable
• Gas Tubes
• Power Cable

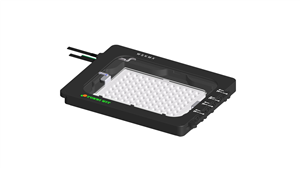

Chamber WSKMX

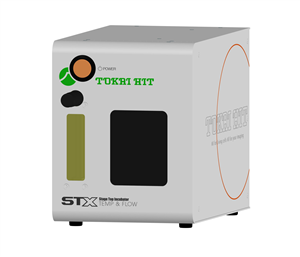

Controller STXF



Specifications

			STXG with built-in gas mixer	STXF with analogue flowmeter
Temperature	Temperature control		PID control
	Increments		0.1°C by digital switches
	Setting method		Touch Panel or PC
	Possible temperature setting range	Sample temperature	30°C~40°C
		Top Heater	10°C~65°C
		Bath Heater	10°C~50°C
		Stage Heater	10°C~50°C
		Lens Heater	10°C~45°C
	Rise time		10 minutes to reach 50°C
	Accuracy		Within ±0.3°C at each heater surface(in our terms and conditions)
	Sensor		Pt 100
Humidity	Humidification control		Forced humidification by heating Bath Unit
	Condensation prevention		Top Heater equipped with glass heater
Gas	CO2 concentration range		5%~20%
	Control method		PID control	Precision needle valve
	Accuracy		Within ±0.1%	Within±2% FS
	Gas type		100% CO2	5%CO2
	Input gas pressure		0.1Mpa~0.15MPa
	Output gas pressure		160 ml/min	75 ml/min~
				250 ml/min
Power source			100 V~240 V AC ±10% 50/60Hz
Maximum power consumption			110W	90W
