New Era Pumps
WPI partner with New Era to provide syringe pumps for an affordable solution to your sophisticated dispensing and fluid control applications.
The pumps offer the best value on the market by delivering high end features at affordable pricing.
Features include infusion and withdrawal, computer interface and advanced programming options
New Era
- Precise, reproducible flow rate control
- Easy-to-use keypad interface
- RS-232 and TTL control
- Rich command set
- Daisy chain and monitor up to 100 pumps via one PC
The New Era Syringe Pump series are the go to syringe pump for a busy laboratory. These pumps offer a broad pulse free flow range, computer interface and TTL control. Select from options including:
- Infusion pumping or Infusion/withdrawal pumping
- Multi-channel (from 1 to 12 channels)
- High pressure models
- Advanced programming options
New Era Syringe Pumps are constructed with a metal casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable.
New Era Pump Selection Table
| Description | Maximum Syringes | Standard Pump | Advanced Pump* |
|
New Era InfusionONE Syringe Pump (Infusion only)
|
1 | NE-300 | |
|
New Era SyringeONE Programmable Syringe Pump
|
1 | NE-1000 | NE-1000X |
|
New Era SyringeONE Microfluidics Programmable Syringe Pump
|
1 | NE-1002X | |
|

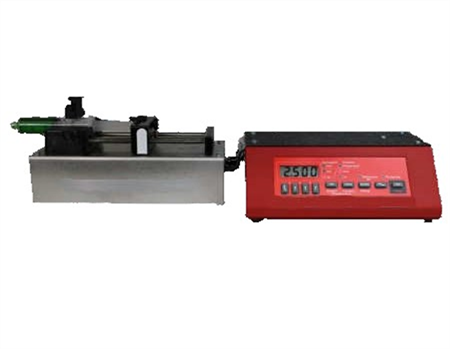

New Era SyringeONE Programmable Syringe Pump With Remote Pump Head
|
1 | NE-M500X | |
|
New Era SyringeONE:80 High Flow Programmable Syringe Pump
|
1 | NE-1050 | NE-1050X |
|
New Era SyringeONE:173 High Flow Programmable Syringe Pump
|
1 | NE-1060 | NE-1060X |
|
New Era SyringeONE:100 High Pressure Programmable Syringe Pump
|
1 | NE-1010 | NE-1010X |
|

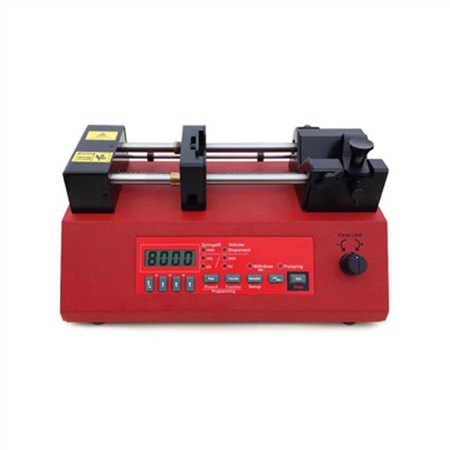

New Era SyringeONE:200 High Pressure (200 lb) Programmable Syringe Pump
|
1 | NE-8000 | NE-8000X |
|
New Era SyringeONE:200 High Pressure (200 lb) High Speed Programmable Syringe Pump
|
1 | NE-8060 | NE-8060X |
|

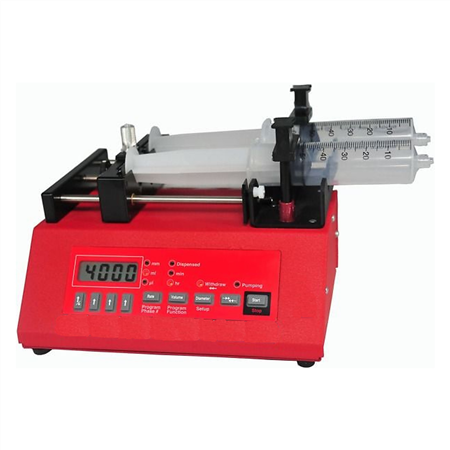

New Era SyringeTWO Programmable Double Syringe Pump - holds two syringes of up to 60 cc
|
2 | NE-4000 | NE-4000X |
|
New Era SyringeTWO Microfluidics Programmable Syringe Pump
|
2 | NE-4002X | |
|

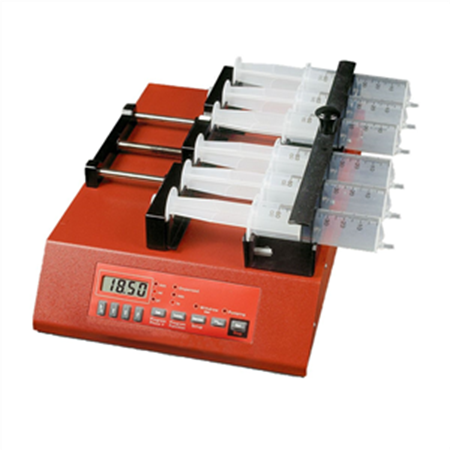

New Era SyringeSIX Programmable 6 Channel Syringe Pump - Holds 2, 4 up to 140 cc or 6 syringes of up to 60 cc
|
6 | NE-1600 | NE-1600X |
|
New Era SyringeEIGHT Programmable 8 Channel Syringe Pump - Holds 2, 4, 6 or 8 syringes of up to 10 cc
|
8 | NE-1800 | NE-1800X |
|

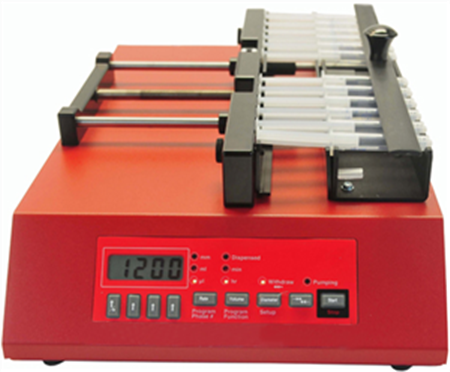

New Era SyringeTWELVE Programmable 12 Channel Syringe Pump - Holds 2, 4, 6, 8, 10 or 12 syringes of up to 3 cc
|
12 | NE-1200 | NE-1200X |
*Advanced Pump Models
New Era Advanced Syringe Pump models include all the features and performance of the New Era Syringe Pump with upgaded programming functionality including:
- Linear/Gradient Program Function
- Next generation continuous pumping mode when combined with a second pump
- Constant flow rate gradient pumping mode when combined with a second pump

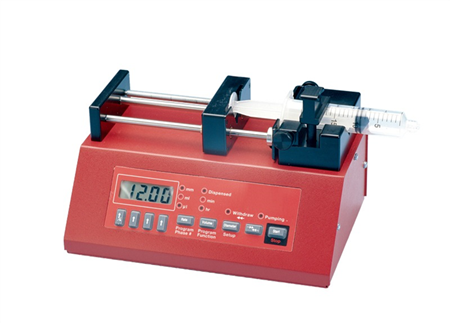

NE-300
New Era InfusionONE Syringe Pump (Infusion only)
- Single channel infusion only syringe pump
- ±1% dispensing accuracy
- Linear force 35 lb at low speed; 18 lb at maximum speed
- Min Flow: 0.73 µL/hr (1 mL syringe)
- Max Flow:1500 mL/hr (60 mL syringe)
NE-1000
New Era SyringeONE Programmable Syringe Pump
- Single channel infusion/withdrawal syringe pump
- ±1% dispensing accuracy
- Linear force 35 lb at low speed; 18 lb at maximum speed
- Min Flow: 0.001 µL/hr (0.5 µL syringe)
- Max Flow: 3470 mL/hr (140 mL syringe)
NE-1000X
New Era SyringeONE ADVANCED Programmable Syringe Pump
- Single channel infusion/withdrawal syringe pump
- ±1% dispensing accuracy
- Linear force 35 lb at low speed; 18 lb at maximum speed
- Min Flow: 0.001 µL/hr (0.5 µL syringe)
- Max Flow: 3470 mL/hr (140 mL syringe)
- Spec of NE-1000 with upgraded advanced programming functions including
- Linear/Gradient Program Function
- Next generation continuous pumping mode when combined with a second pump
- Constant flow rate gradient pumping mode when combined with a second pump
