Home > Products > Brands > Millicell ERS > STX2

STX2

Chopstick Electrode Set for EVOM2, 4mm

(Original Manufacture Direct Replacement for ERS-2 part MERSSTX01)

Overview
Specifications
Accessories
Citations
Related Products

Overview

There are 3 images available to view - click to enlarge and scroll through the product gallery.

STX2 Instruction Manual
/ Download as PDF

Newer model available, check out the STX4 !

4mm fixed width double electrodes
1mm thick
Use in cell culture wells
Compatible with the EVOM, EVOM2, ERS, ERS2 (Millipore)

Manual electrodes

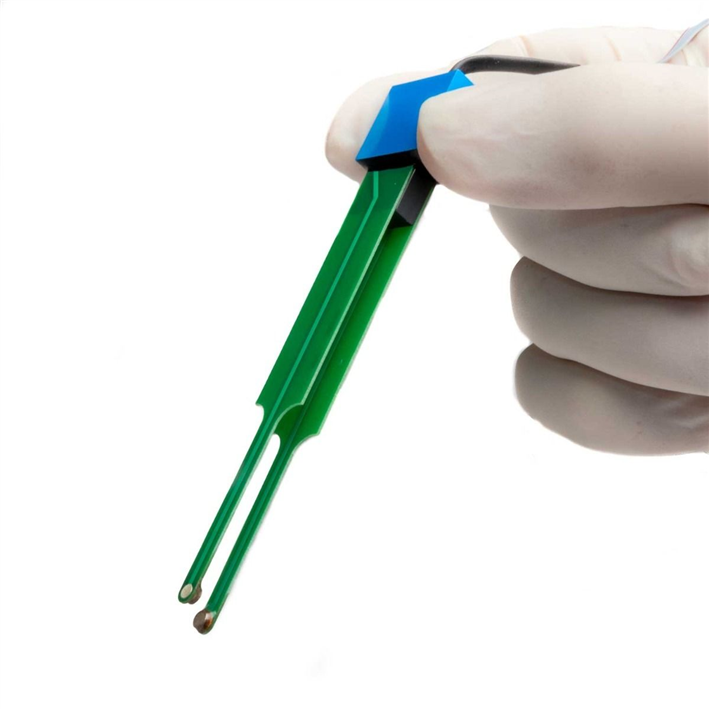

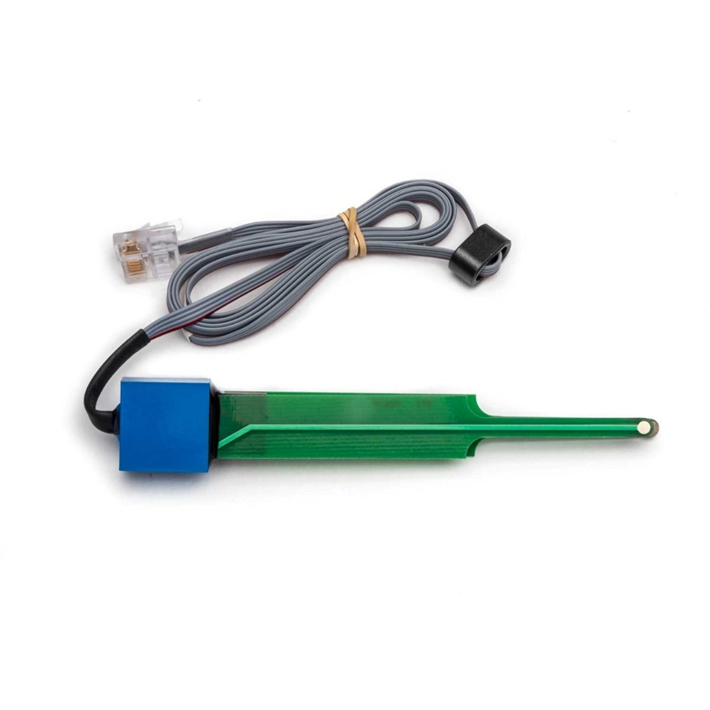

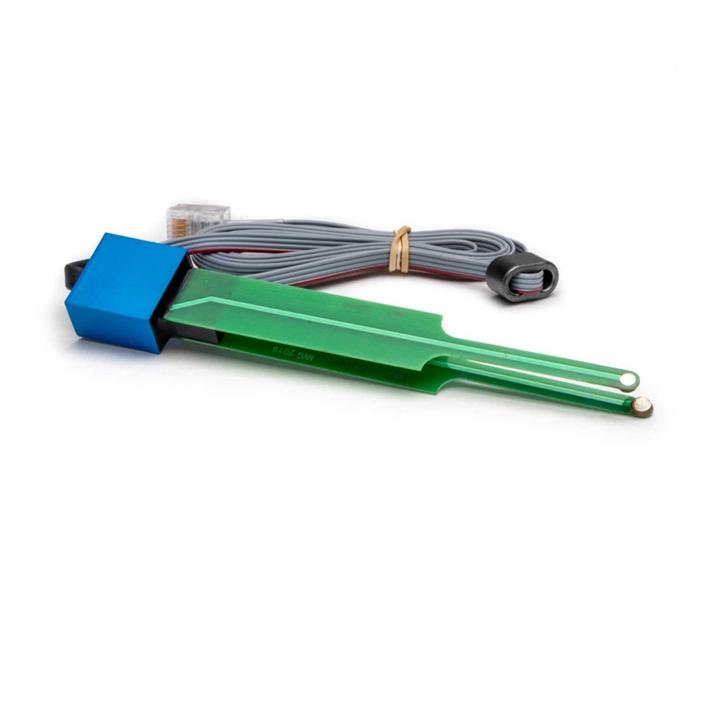

The STX2 consists of a fixed pair of double electrodes, 4 mm wide and 1 mm thick. Each stick of the electrode pair contains a silver/silver-chloride pellet for measuring voltage and a silver electrode for passing current. The small size of each electrode is designed to facilitate placement of the electrodes into cell culture wells. STX2 can be used with all tissue culture inserts currently on the market. For more accurate quantitative measurements and/or for lower resistance measurements (for example, endothelial tissue cultures) the EVOM2 can be used in conjunction with the optional Endohm chambers.
