ISO-NOPF500-Cxx

Nitric Oxide Sensor - 500um

Overview
Specifications
Accessories
Citations
Related Products

Overview

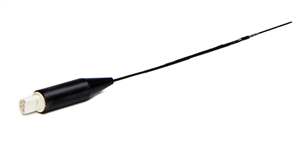

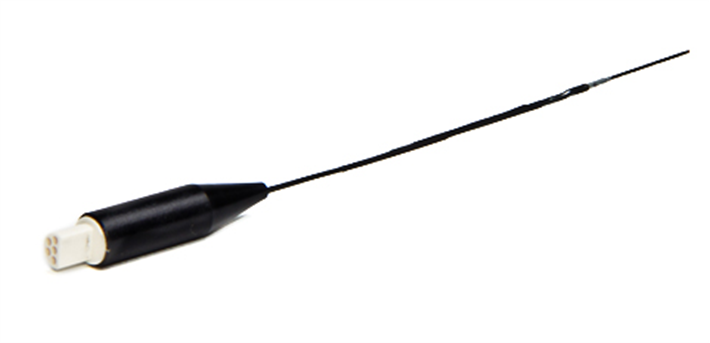

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Instruction Manual
/ Download as PDF

ISO-NOPF500-Cxx Datasheet
/ Download as PDF

Requires cable 91580 (sold separate)
A dry carbon fiber sensor that works like a 2mm wet sensor
Use like an ISO-NOP without sleeves and filling solution
Response Time: < 10 seconds
Lowest Detection Limit: 0.2 nM

The ISO-NOPF500 is a nitric oxide sensor designed like the dry, carbon fiber ISO-NOPF sensors, however, it works like a traditional ISO-NOP 2mm sensor. The sensor can be ordered in a variety of lengths from 5-10mm. It incorporates WPI's propiretary combination electrode technology in which the nitric oxide sensing element and separate reference electrode are encased within a single sheilded sensor design.

The ISO-NOP was the original nitric oxide sensor, ideal for cell cultures, cell suspensions and many other applications. The new ISO-NOPF500 can be used in the same way, but offers several advantages:

Requires no sleeves or filling solutions
Flexible and durable, like other ISO-NOPF sensors
High sensitivity for a rapid response time–ten times more sensitive than the ISO-NOP
Can be used in acidic conditions
Longer sensor tip than the ISO-NOP
Bigger linear range than the ISO-NOP (range is based on the length of the sensor tip)
Calibration with either the SNAP or Nitrite method

NOTE: When ordering custom lengths, use the part number ISO-NOPF500-Cxx and replace the xx with the desired length. For example, if you want a 10mm flexible sensor tip, the part number should be ISO-NOPF500-C10. This sensor can be ordered in the following custom lengths: 5mm, 6mm, 7mm, 8mm, 9mm or 10mm.

Specifications

Outside Diameter	500μm
Available Length	5-10mm (sensor length varies in 1mm increments - 1mm, 2mm, 3mm...)
Response Time	< 10 seconds
Lowest Detection Limit/Range	0.2nM
Nominal Sensitivity-New sensor	≥20pA/nM
Baseline Drift	none
Poise Voltage	865mV
Typical Quiescent Baseline Current, 25°C	5000pA
Acceptable Baseline Range	3000-25000pA
Polarization Time	8+ hours
