Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
Instruction Manual
/ Download as PDF
30 micron sensor with exceptional performance

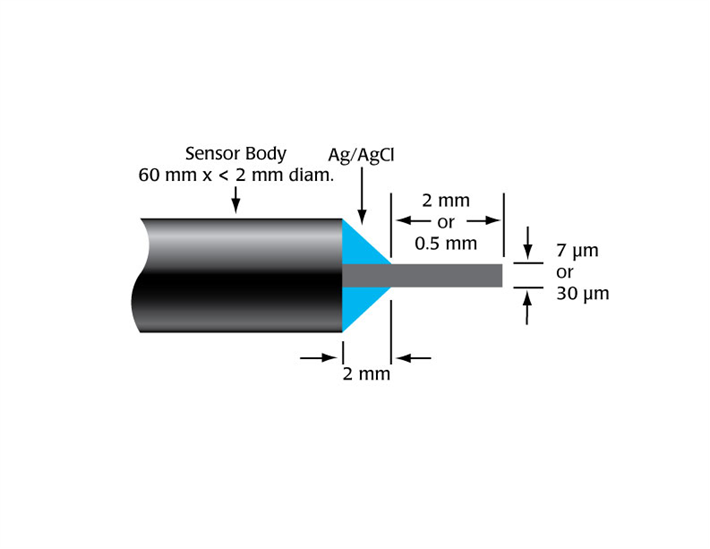

The ISO-NOP007 has a tip diameter of 7 microns and a length of 2mm. The response is linear over a wide dynamic concentration range of NO. The design is based on a single carbon fiber coated with WPI's NO-selective membrane. A detection limit of approximately 1 nM NO makes these electrodes ideal for use in tissues and microvessels.
The response of a 7μm NO sensor (ISO-NOP007) to successive additions of NO (100nM). Inset shows the linearity of the resulting calibration plot.
Simultaneous measurement of force (top trace) and changes of NO concentration (lower trace) in (A) the rat superior mesenteric artery relaxed with ACh and (B) a small human artery relaxed with ACh and SNAP. In this artery oxyhaemoglobin (oxyHb) partly reversed the increase in NO concentration with only a small change in force. [U. Simonsen, et al., J. Physiol., 1999, 516: 271-282.]
Specifications
| Outside Diameter | 7μm |
| Available Length | 2mm |
| Response Time | < 3 seconds |
| Lowest Detection Limit/Range | 0.5nM |
| Nominal Sensitivity-New sensor | ≥1pA/nM |
| Baseline Drift | none |
| Poise Voltage | 865mV |
| Typical Quiescent Baseline Current, 25°C | 300pA |
| Acceptable Baseline Range | 200-1500pA |
| Polarization Time | 1+ hours |
Accessories
Citations
D.Z. Levine, M. Iacovitti,K.D. Burns, X. Zhang "Real-time profiling of kindey tubular fluid nitric oxide concentrations in vivo" Am J Physiol Renal Physiol Renal 281. 2001: F-189-F194
