Oxygen Detection
Oxygen Detection for use with TBR1025 and TBR4100
These sensor incorporate WPI’s proprietary combination electrode technology whereby the oxygen-sensing element and separate reference electrode are encased within a single shielded sensor design. A gas-permeable polymer membrane is fitted over the end of the sleeve, which allows oxygen to pass while blocking liquids, ions and particulate matter.
Oxygen diffuses through the membrane. The voltage applied to the sensor is held at -0.7V when the monitoring device is on and the sensor is properly connected. The magnitude of the generated electrical current is determined by the rate of diffusion through the membrane. The rate is proportional to the partial pressure of oxygen outside the membrane. The current serves as a measure of the partial pressure of O2.
91580
Microsensor Adapter Cable for use with Nitric Oxide, Hydrogen Peroxide, Oxygen, Hydrogen Sulfide, Glucose Microsensors and Temperature Sensor
5378
Electrode Sleeve Kit for OXELP and ISO-OXY-2 electrode. Contains four replacement sleeves with membranes, plus 10 mL refill solution.
7326
Filling Solution for OXELP and ISO-OXY-2 electrode. 10ml
5377
Replacement Start-up Kit for OXELP and ISO-OXY-2 electrode. Includes T-Adapter Kit 5399, Calibration Bottle, 10mL Refill Solution, 1 cc Syringe, 2 Replacement Membranes Sleeves, MicroFil (28 ga.).
5399

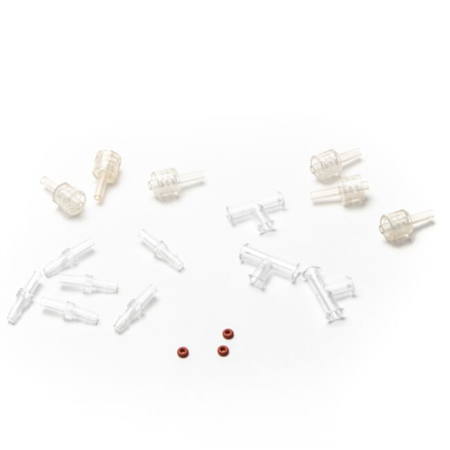

T-Adapter Flow-Through Kit for OXELP and ISO-OXY-2 electrode. Includes: 2 female luer T's, 3 luer lock fittings, 3 2mm gaskets, and 6 male luer to 1/8 inch tubing.
NOCHM-P
Spare plug-adapter for 2mm electrode NOCHM-4
800100-5
Spare NOCHM Center Chamber Gaskets for use with NOCHM-4, pkg of 5
