Accessories
Accessories

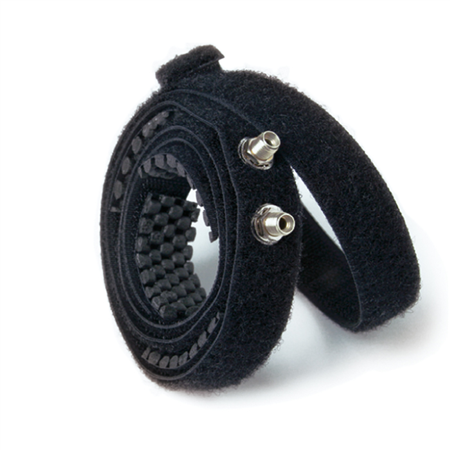

ARC-2SMA-1.0-AS
Adapter for Round Containers ARC
- Adjustable for many round containers
- Safe connection of polymer optical fiber
- Precise sensor read-out
The Adapter for Round Containers is an adjustable Velcro®-type adapter. It can be used for round containers with diameters of 2.5 to 20 cm (1 to 8 inches). The SMA socket on this adapter is placed opposite an integrated sensor spot. Then a polymer optical fiber can be connected to the socket, and is held in place by the ARC for sensor read-out.
Specification
ARC: Adapter for Round Containers
2 SMA: Two Sockets for Fiber Connector,
Distance (Midpoint) 2,0 cm
1,0: Length: 100,0 cm
AS: Anti-Slide Rubber

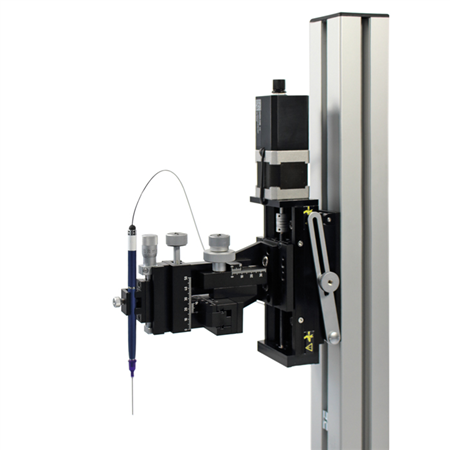

Automated Micromanipulator
Automated Micromanipulator AM
- Fully automated system
- No electrical interference due to optical measurement
- Adaptable to any sample
- Software PreSens Profiling Studio included
- Easy USB connection
- Individual profile and step-zone definition
- Compact, with additional manual motor control
The Automated Micromanipulator is specifically designed for profiling applications with the PreSens profiling microsensor (PM), and can also be operated with needle-type housed (NTH) and implantable (IMP) microsensors, as well as dipping probes (DP). With this system the microsensor can be moved vibration-free with µm reading accuracy and it enables exact localization of the sensor in the sample. Automated profiling can be performed along one dimension in µm resolution. The micromanipulator additionally comprises a tilting platform so the microsensor can be adjusted at an angled position. The associated user-friendly, and database-supported software PreSens Profiling Studio allows easy control of the AM and the respective oxygen, pH or CO2 meter via USB. The software offers multiple features from clear data organization and export, easy creation of profiling templates, to analysis functions.
Specification
Automated Micromanipulator with tilting mechanism.
Motorized travel range x-axis: 75 mm
Manual travel range x-axis: 37 mm, fine drive 10 mm, y-axis: 20 mm, z-axis: 25 mm
Includes:
Manual micromanipulator, linear stage, mounting adapter (M6 screw, 13 mm length), USB interface cable, USB-hub, power adapter, power strip (EU), country adapters (UK, US, AU)

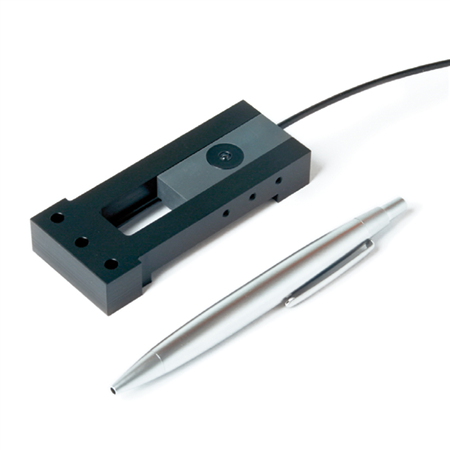

CFG-dual-L2.5
Coaster for Shake Flasks CFG
- Extends usage of oxygen meters
- Easy sensor reading through flat vessel bottom
- Adjustable to different sizes of shake flasks
The coaster CFG is placed underneath the shake flask with integrated sensor and connected via polymer optical fiber to the respective meter, for sensor read-out through the bottom. It is adjustable to flasks of different sizes. The coaster is designed for oxygen measurement only. For pH and CO2 we offer different solution. An optical fiber with 2.5 m length and an SMA connector is integrated into the adapter.
Specification
CFG: coaster for shaking flasks
L2.5: cable length 2.5 meterr
CFG-L2.5-REV8
Coaster for Shake Flasks CFG
- Extends usage of oxygen meters
- Easy sensor reading through flat vessel bottom
- Adjustable to different sizes of shake flasks
The coaster CFG is placed underneath the shake flask with integrated sensor and connected via polymer optical fiber to the respective meter, for sensor read-out through the bottom. It is adjustable to flasks of different sizes. The coaster is designed for oxygen measurement only. For pH and CO2 we offer different solution. An optical fiber with 2.5 m length and an SMA connector is integrated into the adapter.
Specification
CFG: coaster for shaking flasks
L2.5: cable length 2.5 meterr

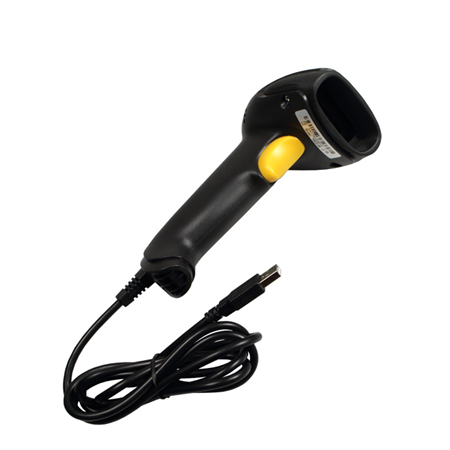

Handheld USB-QR Barcode Scanner
Handheld USB-QR Barcode Scanner
- Fast sensor calibration
- USB-powered
- No manual data entry necessary
- Compatible with PreSens Measurement Studio 2, PreSens Device Configurator and EOM-STS Pro
This handheld scanner can simply be connected to your PC via USB and is compatible with the PreSens Measurement Studio 2, PreSens Device Configurator and EOM-STS Pro software. Connect a PreSens measurement device to the PC and software, and calibrate your sensors by one fast barcode scan. The software transfers the new calibration data to the device. The handheld USB-QR Barcode Scanner speeds up the calibration process considerably as you do not need to enter the data manually and numerous sensors can be calibrated in no time.
Specification
Compatible with PMS2, PDC, EOM-STS Software

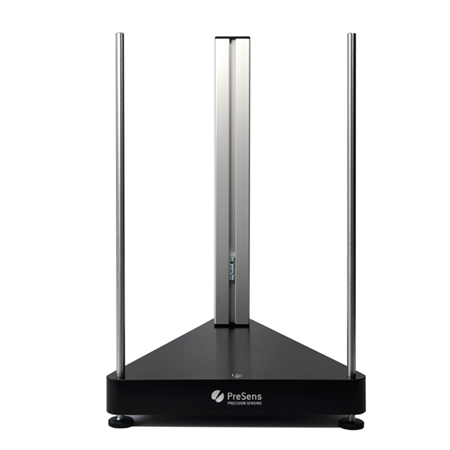

Heavy Stand (HS) for micromanipulators
Heavy Stand (HS)
- Adjustable micromanipulator height and orientation & can be balanced
- For AM & MM33
- Additional mounting rods for further equipment
The Heavy Stand (HS) ensures save mounting and operation of the Automated Micromanipulator. The heavy base plate enables a most stable and vibration-free set-up. The HS comes with two square profile rails of different lengths, so the micromanipulator can be installed in different heights, and is adaptable to different samples. Additionally, two metal rods can be attached to the HS to install further measurement equipment, like VisiSens, cameras or lighting next to the AM. The HS can be balanced with its three adjusting feet and the spirit level integrated in the base plate if required.
Specification
for solid, vibration-free fixation
Weight 14 kg, height 500 / 300 mm, M6 mounting
Includes: 1 x long post (500 mm), 1 x small post (300 mm), 2 x mounting rods (ø 12 mm), 3 x adjustable feet (for levelling), 1 x circular level

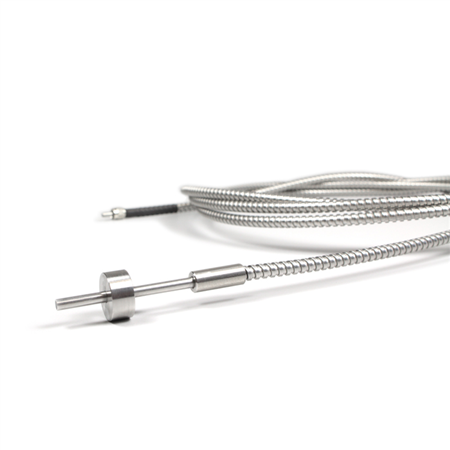

POF-FTC-L2.5-1ST
Polymer Optical Fiber with Protective Cover POF-SCT
- Metal spiral tube cover
- Solvent-resistant
- Safe from accidental bending
- Magnetic connection to FTM-M10 available
This polymer optical fiber for all meters with SMA socket is especially suited for sensor read-out in harsh environments or applications where solvents might get in touch with the fiber. It transfers excitation light to the sensor and the sensor response back to the meter. The metal spiral tube cover avoids accidental bending or damaging the fiber. The fiber is available in different lengths and either with SMA and magnetic connector (POF-SCT-MH-1SMA for FTM-M10) or with 2 SMA connectors (POF-SCT-2SMA for FTM2).
Specification
POF: polymer optical fiber
FTC: compatible to flow through cell
L2.5: length of optical fiber is 2.5 meter
1 ST: 1 ST connector, distal end is polished fiber
POF-L2.5-1SMA
Polymer Optical Fiber POF
- Enables contactless measurement
- Versatile light guide
- Different lengths available
A polymer optical fiber (POF) is needed to transfer excitation light to the sensor and the sensor response back to the meter. We offer different versions for different meters depending on their optical connector type. A POF enables non-invasive and non-destructive measurements to be made from the outside through the wall of a transparent or slightly colored container. The POF with SMA connector is compatible with meters of the Fibox, OXY-1 SMA, OXY-1 WM,OXY mini and pH-1 SMA series, as well as the CO2-1 SMA. The POF with ST connector is compatible with meters of the Microx 4 and OXY-1 ST series. Different standard lengths are offered, e. g. 2.5 m, and fibers with connectors on one or both ends are available, depending on your adapter or sensor application.
Specification
POF: polymer optical fiber
L2.5: length of optical fiber is 2.5 meter
1SMA: 1 SMA connector, distal end is polished fiber
POF-L2.5-1ST
Polymer Optical Fiber POF
- Enables contactless measurement
- Versatile light guide
- Different lengths available
A polymer optical fiber (POF) is needed to transfer excitation light to the sensor and the sensor response back to the meter. We offer different versions for different meters depending on their optical connector type. A POF enables non-invasive and non-destructive measurements to be made from the outside through the wall of a transparent or slightly colored container. The POF with SMA connector is compatible with meters of the Fibox, OXY-1 SMA, OXY-1 WM,OXY mini and pH-1 SMA series, as well as the CO2-1 SMA. The POF with ST connector is compatible with meters of the Microx 4 and OXY-1 ST series. Different standard lengths are offered, e. g. 2.5 m, and fibers with connectors on one or both ends are available, depending on your adapter or sensor application.
Specification
POF: polymer optical fiber
L2.5: length of optical fiber is 2.5 m
1ST: 1 ST connector, distal end is polished fiber

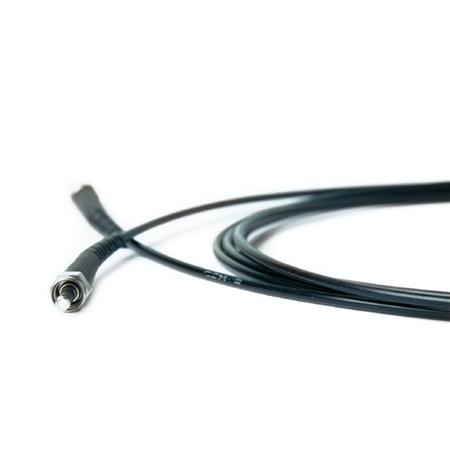

POF-L2.5-2SMA
Polymer Optical Fiber POF
- Enables contactless measurement
- Versatile light guide
- Different lengths available
A polymer optical fiber (POF) is needed to transfer excitation light to the sensor and the sensor response back to the meter. We offer different versions for different meters depending on their optical connector type. A POF enables non-invasive and non-destructive measurements to be made from the outside through the wall of a transparent or slightly colored container. The POF with SMA connector is compatible with meters of the Fibox, OXY-1 SMA, OXY-1 WM,OXY mini and pH-1 SMA series, as well as the CO2-1 SMA. The POF with ST connector is compatible with meters of the Microx 4 and OXY-1 ST series. Different standard lengths are offered, e. g. 2.5 m, and fibers with connectors on one or both ends are available, depending on your adapter or sensor application.
Specification
POF: polymer optical fiber
L2.5: length of optical fiber is 2.5 meter
2SMA: 2 SMA connector
POF-L2.5-2ST
Polymer Optical Fiber POF
- Enables contactless measurement
- Versatile light guide
- Different lengths available
A polymer optical fiber (POF) is needed to transfer excitation light to the sensor and the sensor response back to the meter. We offer different versions for different meters depending on their optical connector type. A POF enables non-invasive and non-destructive measurements to be made from the outside through the wall of a transparent or slightly colored container. The POF with SMA connector is compatible with meters of the Fibox, OXY-1 SMA, OXY-1 WM,OXY mini and pH-1 SMA series, as well as the CO2-1 SMA. The POF with ST connector is compatible with meters of the Microx 4 and OXY-1 ST series. Different standard lengths are offered, e. g. 2.5 m, and fibers with connectors on one or both ends are available, depending on your adapter or sensor application.
Specification
POF: polymer optical fiber
L2.5: length of optical fiber is 2.5 meter
2ST: 2 ST connector, distal end is polished fiber

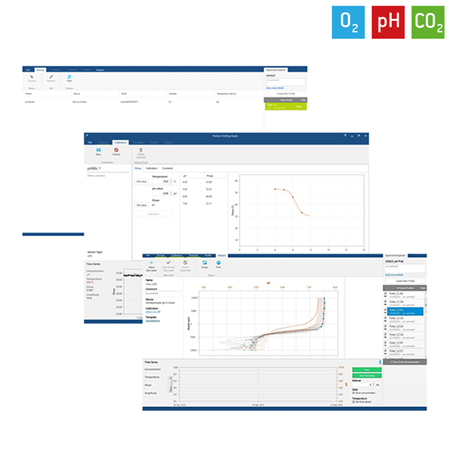

PreSens Profiling Studio (PPS) PC Software
PreSens Profiling Studio
- Controls AM & connected meter
- Easy creation of profiling templates
- Database supported
This software enables control of the Automated Micromanipulator and connected oxygen, pH or CO2 meter. It is database supported and offers multiple features from clear data organization and export, easy creation of profiling templates, to analysis functions.
Specification
To be used with the Automated Micromanipulator (AM) and PreSens transmitters Microx TX3 / trace, Microx 4 / trace or pH-1 micro.
PC Software on CD consists of:
- PreSens Profiling Studio 1.0.0 (compatible with Windows 7, 8, 10 at 32 or 64 bit)
- Instruction Manual
- User Guide

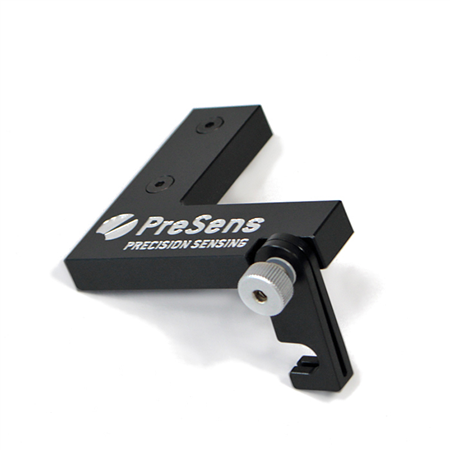

Safe-Insert Accessory
Safe-Insert Accessory
- Safe insertion of needle-type microsensors into semi-solids
- Expands the AM functionality
The safe insert accessory can be attached to the Automated Micromanipulator. It is specifically designed for needle-type housed microsensors (NTHs). After the needle of an NTH is pierced through material or inside a sample the sensor tip can be safely extended in μm steps with the safe-insert function, without the risk of breaking the sensor fiber.
Specification
TTo be used with NTH microsensors
For safe insertion of sensor fibers into semi-solid samples. To be mounted on the Automated Micromanipulator (AM) or Micromanipulator MM33. Includes 2 x mounting screws (M3) and 1 x Allen key (size 2.0)

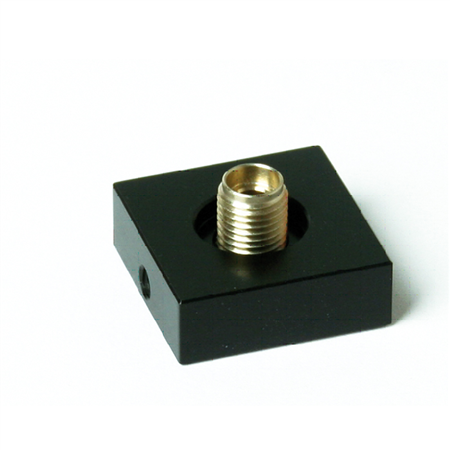

SOA
Stick-On Adapter SOA
- Safe connection of polymer optical fiber
- Precise sensor read-out
The stick-on adapter is used to attach the polymer optical fiber (POF) to a planar transparent glass or plastic container. The SOA is glued to the vessel surface opposite the integrated sensor spot. A polymer optical fiber can then be connected to its SMA socket and is securely held in place by the SOA for sensor read-out.
Specification
Stick-On Adapter for Planar Containments

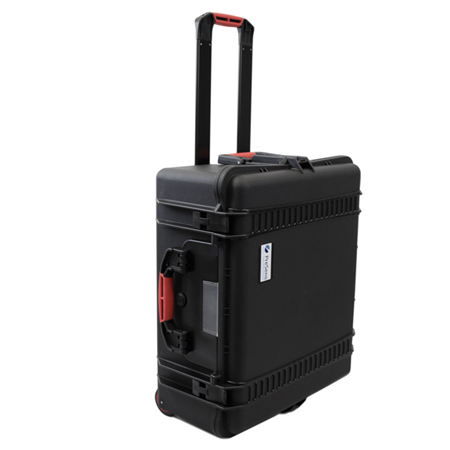

Transport Case
Transport Case
- Safely travel with our profiling equipment outdoors, aboard ships or planes
- Water-, dust- and light-tight
- Protective foam inlay for AM & HS parts
- Trolley format with pull-out handle & robust wheels
This high-quality transport case can contain the AM as well as one Heavy Stand. With a pull-out handle and robust wheels the case enables safe and convenient travel or storage of your micromanipulator.
Specification
For transportation of the HS and AM
High-quality transport case with pullout handle and robust wheels. Foam inlay for safe embedding of AM and HS part. Outside dimensions: 620 x 520 x 275 mm.

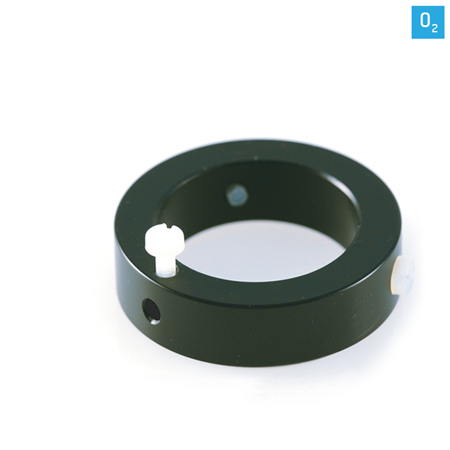

Vial Adapter VA-20mL-Single
Vial Adapter VA-20mL
- Non-invasive oxygen monitoring in glass vials
- Secure & exact positioning of the polymer optical fiber
- Precise sensor read-out
The Vial Adapter is used to attach the POF (polymer optical fiber) to a 20 mL SensorVial (special glass vial with integrated oxygen sensor foil) using a screw. It can be attached to the vial in different heights for measurement in the liquid phase and the headspace and can also be used in a water bath. The POF is available as a separate accessory.
Specification
VA: Vial Adapter
20mL: for SensorVials with a volume of 20 mL
Single: for connection of 1 POF (not included)
