Fibox 4 Trace

Stand-alone Fiber Optic Trace Oxygen Meter

Overview
Specifications
Accessories
Citations
Related Products

Overview

There are 2 images available to view - click to enlarge and scroll through the product gallery.

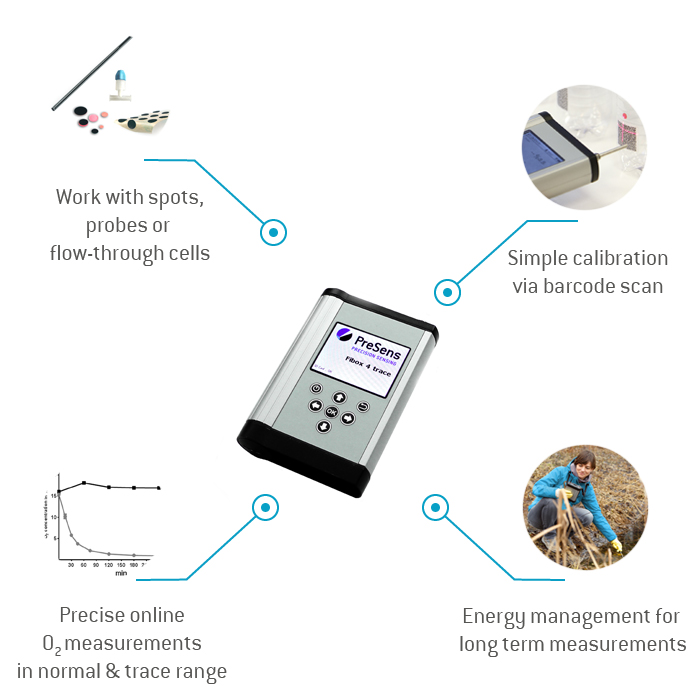

Worry-free measurement due to unique sensor ID
Measure from 1 ppb to 100 % oxygen with one device
Easy calibration via barcode scan
Compensation of temperature, pressure and salinity
16 GB internal memory
Energy management for long term measurements
Optional database supported software offers simultaneous control of multiple devices

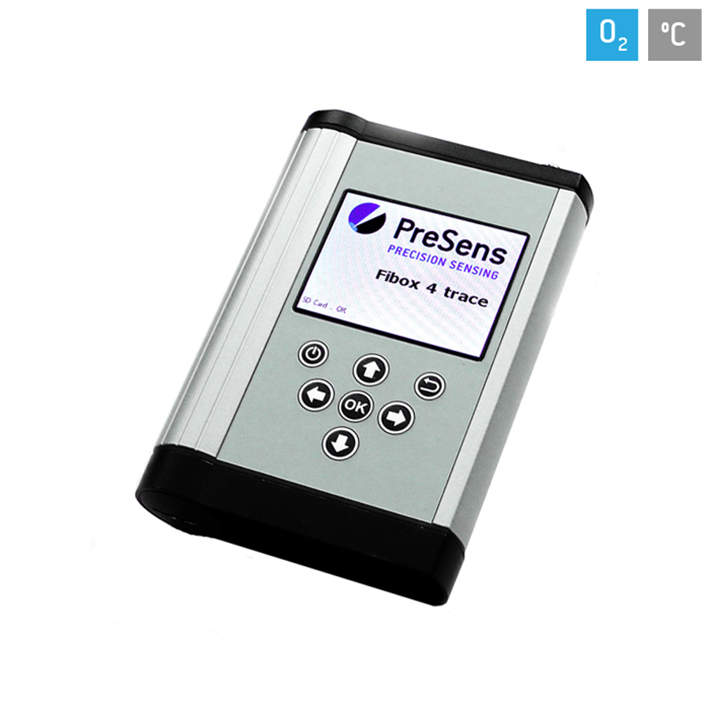

The Fibox 4 trace is a stand-alone oxygen meter designed for easy handheld use. Its robust housing is splash-proof, and the controls were developed to be operated even while working under harsh conditions with heavy gloves on. The oxygen meter can adapt to dry or humid environmental conditions, and is temperature compensated. Additionally, it has automatic compensation for pressure and salinity. Fibox 4 trace can be operated with sensors type PSt3 (detection limit 15 ppb dissolved oxygen, 0 – 100 % oxygen), type PSt6 for the trace oxygen range (detection limit 1 ppb dissolved oxygen, 0 – 5 % oxygen), and also with type PSt9 for ultra-low oxygen measurements (detection limit 0.5 ppmv, 0 - 200 ppmv gaseous oxygen). With its integrated barcode reader the oxygen meter can identify and calibrate a sensor just in one scan. Its sensor management system allows to store data of up to 100 sensors. Fibox 4 trace has 16 GB internal memory which allows prolonged computer-independent operation. It is delivered with the PreSens Datamanagement software allowing data transfer to a PC for further analysis.

Applications

	Oxygen Transmission Rate & Permeation Measurement The Fibox 4 trace is the ideal tool for the packaging industry and material research. Easy sensor handling and calibration speed up measuring oxygen ingress and transmission rates in hundreds of containers and packages. Only one scan of the barcode is enough to start precise trace oxygen measurements. In combination with the PSt9 type sensor, which allows measurements down to 0.5 ppm oxygen, even the oxygen transmission rate of high barrier materials for oxygen sensitive applications - like vacuum insulating panels or photovoltaic modules - can be determined..
	Food & Beverage Quality Control Designed as portable, handheld devices the Fibox 4 and Fibox 4 trace can easily be applied for quality control in the food & beverage sector. Together with the versatile PreSens oxygen sensors which can be integrated in pipes, containers or directly held into samples the Fibox 4 and Fibox 4 trace offer complete freedom and multiple options for application to check the quality and shelf-life of your products in different stages of the production and filling process.
	Biological & Environmental Research The Fibox 4 and Fibox 4 trace are idealy suited for field research. With the robust, splash proof housing the devices can be operated even in harsh conditions. The long lasting battery and almost unlimited storage capacity allow for prolonged computer-independent use. Additionally, special energy management settings for long term measurements can be applied. The intuitive user interface and implemented functions like graphical display of the measurements ensure comfortable and comprehensive application without having to connect the device to a PC / notebook. Combined with different types of dipping probes, and non-invasive sensors the compact Fibox 4 and Fibox 4 trace can be applied in any situation where precise oxygen measurement is needed.
	Process Industry The new sensor management system together with the barcode reader ensures a fast work flow while working with a multitude of sensors integrated in different vessels or flow-through systems. Non-invasive measurements with chemical optical sensors can reduce the risk of contaminations and the Fibox 4 and Fibox 4 trace ensure precise oxygen measurements in critical processes. Working with the devices and the respective PC software huge amounts of data can be easily handled while ensuring a maximum of safety, due to the improved data and user management.

Specifications

Oxygen sensors	PSt3, PSt6, and PSt9 (optical SMA connector)
Temperature sensor	Pt100 temperature connector (sensor not included)
Temperature performance	From 0 °C to + 50 °C, resolution ± 0.1 °C
Power supply	4 AA nickel-metal hybrid cells (min. 2200 mAh) use only AC adapter (5 VDC / min. 1 A) supplied for recharging
Max. battery operating time	16 hrs. (3 sec. interval measurement, default LED intensity, display backlight OFF, at room temperature)
Temperature: operating / storage	from 0 °C to + 50 °C / from - 20 °C to + 70 °C
Relative humidity	Up to 80 % (non condensing)

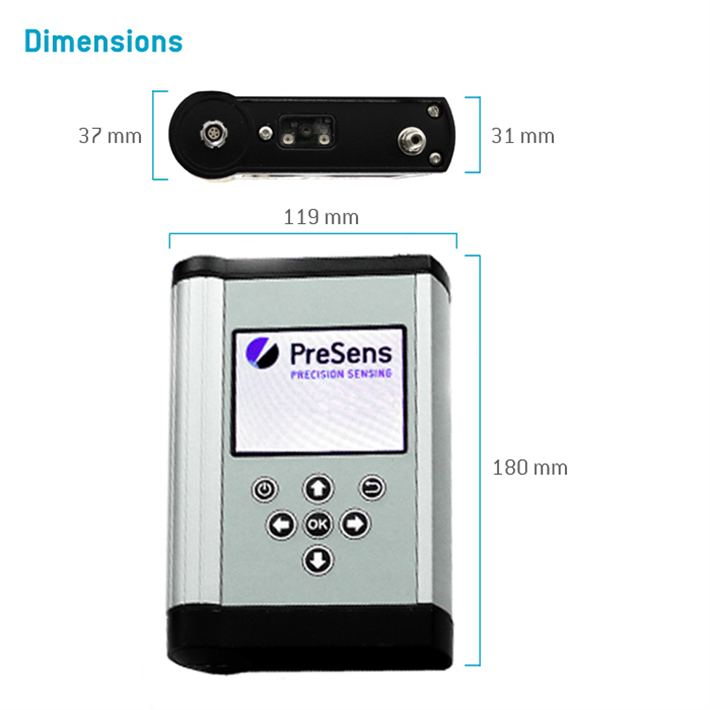

Dimensions	37 mm x 180 mm x 119 mm
Weight	0.65 kg (w/o batteries & protection kit) 0.78 kg (with batteries & protection kit)
Digital interface	USB interface (cable included)
Display	3.5 '' color TFT, 320 x 240 pixel
Internal memory	16 GB memory (~ 40,000,000 data sets) export via included software
