SP-PSt3-SA
Self-adhesive Oxygen Sensor Spot
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview

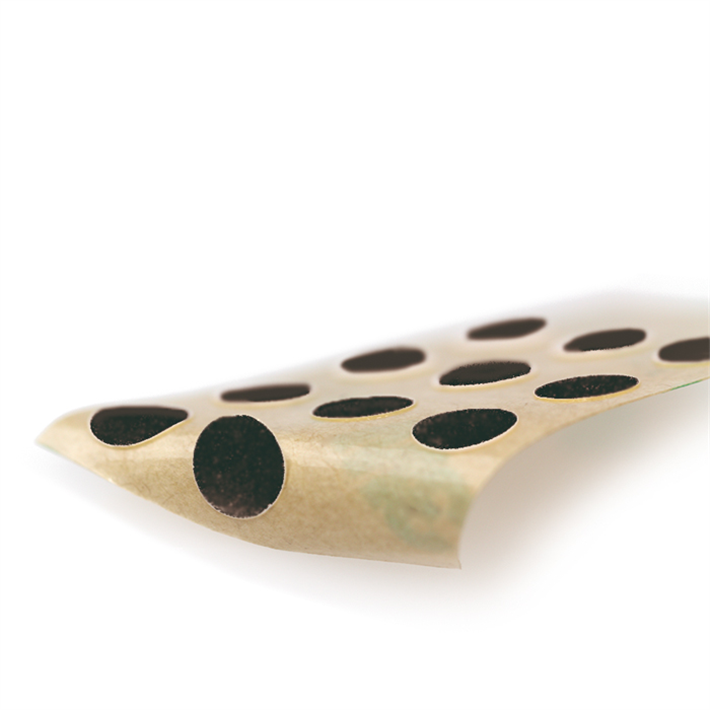

There are 1 images available to view - click to enlarge and scroll through the product gallery.
With the new self-adhesive technology it is easy to integrate these sensor spots in nearly any transparent glass or plastic vessel. The oxygen is measured contactless and non-destructively from the outside – through the vessel wall. The SP-PSt3-SA has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase and can therefore be used for measurements in liquids as well as in headspace. These sensor spots are extremely versatile and can be applied from biotechnological applications up to quality checks for packed or bottled products.
- Simplified integration with new self-adhesive technology
- Compatible with glass & nearly all plastic vessels
- Pre-calibrated & ready-to-use
- Online monitoring without sampling
- Non-invasive measurements through the vessel wall
Specifications
| Specifications | Gaseous & Dissolved O2 | Dissolved O2 |
|---|---|---|
| *after two-point calibration as described in the manual | ||
| Measurement range |
0 – 100 % O2 0 – 1000 hPa |
0 – 45 mg/L 0 – 1400 µmol/L |
| Limit of detection | 0.03 % oxygen | 15 ppb |
| Resolution |
± 0.01 % O2 at 0.21 % O2 |
± 0.004 mg/L at 0.091 mg/L |
| Accuracy* | ± 0.4 % O2 at 20.9 % O2 ± 0.05 % O2 at 0.2 % O2 |
|
| Drift | < 0.03 % O2 within 30 days (sampling interval of 1 min. / at 0% oxygen) | |
| Measurement temperature range | from 0 to + 50 °C | |
| Response time (t90) | < 6 sec. | < 40 sec. |
| Properties | ||
| Compatibility | Aqueous solutions, methanol | |
| No cross-sensitivity |
pH 1 – 14 |
|
| Cross-sensitivity | Organic solvents, such as acetone, toluene, chloroform or methylene chloride Chlorine gas |
|
| Sterilization procedure | Ethylene oxide (EtO) Gamma irradiation |
|
| Cleaning procedure | Cleaning in place (CIP, 2 % NaOH, + 80 °C, + 176 °F) 3 % H2O2 Acidic agents (HCl, H2SO4), max. 4 – 5 % |
|
| Calibration | Two-point calibration with oxygen-free environment (nitrogen, sodium sulfite) and air-saturated environment | |
| Storage stability | 24 months provided the sensor material is stored in the dark | |
