WPI Mouse Stereotaxic Instruments

The Mouse Stereotaxic Instrument was specifically designed for use with knock-out and transgenic mice. It is our smallest and most economic stereotaxic instrument.

• 25cm X 25cm Footprint
• Warmer ready base compatible with Rodent Warmer System
• Gas Anesthesia compatible
• Ear and tooth bar post height adjustment to accommodate animals between 10-75g
• Triple lead screw in manipulator arm for fast positioning

Versatility of Positioning

The universal joint allows the investigator to angle the probe in either the anterior-posterior or the lateral-medial planes. The improved locking mechanism on the WPI Rat Stereotaxic Instruments will hold any angled position without slippage. Of course, it also provides an absolute lock at the vertical position. The manipulator arm may be swivelled out of the way for convenience in installing the animal or performing a procedure, then returned to the same point reliably with the aid of the locking face block above the swivel joint.

Additional Functionality For Digital Stereotaxic Models

• Saves time and improves accuracy
• Easy-to-read digital display and sealed electronic sensors operation of the instrument is easy and precise
• Simply move your probe to an established reference point (e.g. Bregma), zero the LED display and move to the desired coordinates

A zeroing function allows the user to set a reference point for targeting specific coordinates on the animal’s skull for injection, implantation, etc. Calculation of distance measurements via the vernier scales is thus no longer necessary…saving the user valuable time and improving accuracy. It's as easy as 1-2-3.

1. Find reference point, e.g. Bregma
2. Reset zero on touch screen display
3. Move to the desired coordinates

Target coordinates can be programmed into the memory of the digital stereotaxic instruments.

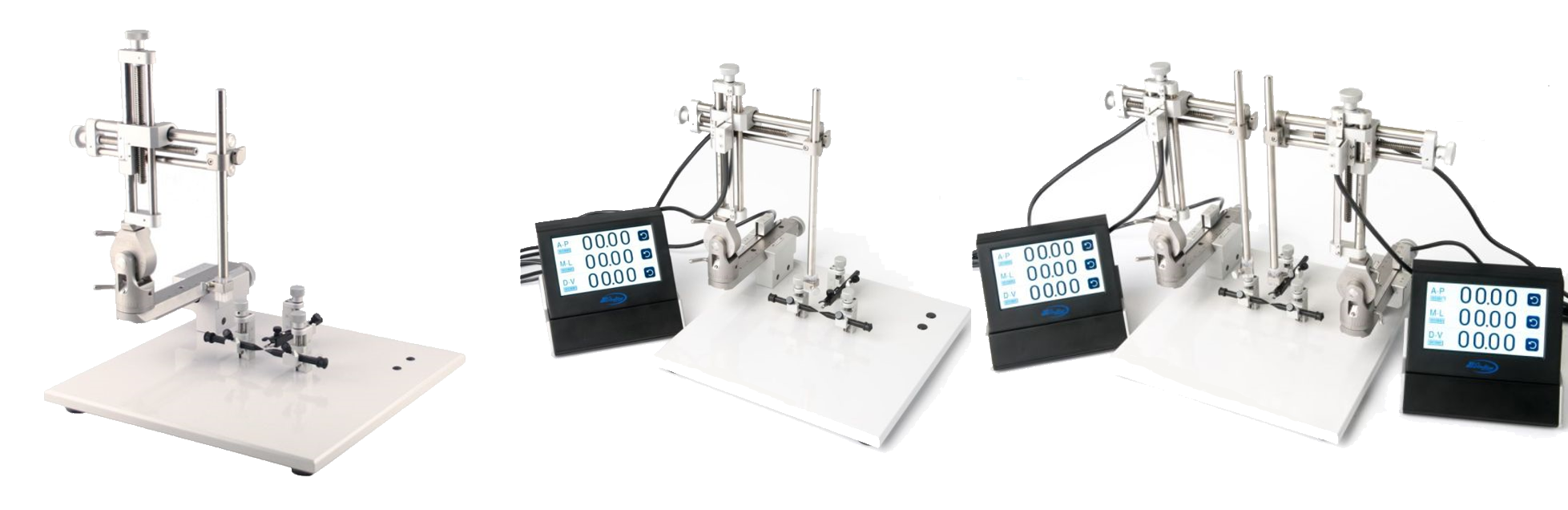

Mouse Only Stereotaxic Frame Options

Arms	Movement	Digital	Type	Part

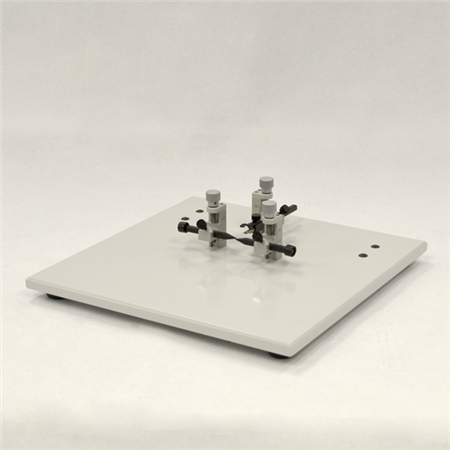

None	N/A	N/A	Base Only	505318

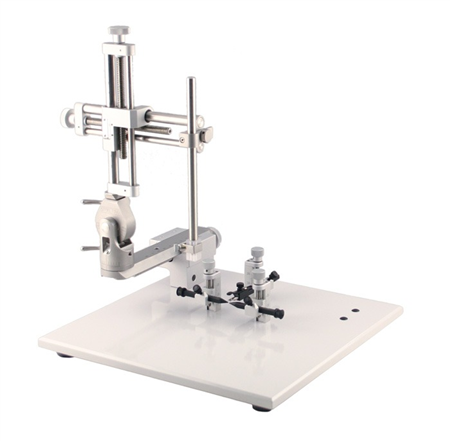

Single	Manual	No	Standard (Vernier Scale) 100 microns (0.1 mm) Resolution	505313

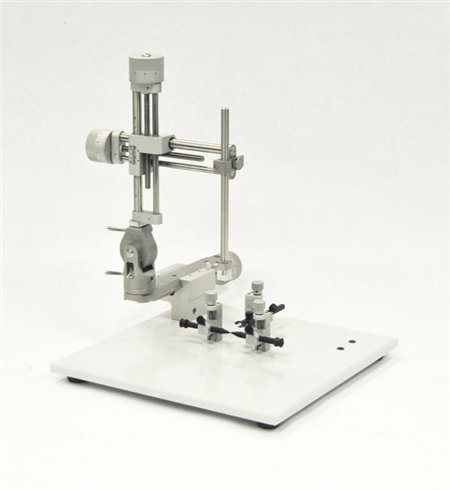

			Ultra-Precise 10 microns (0.01 mm) Resolution	505316

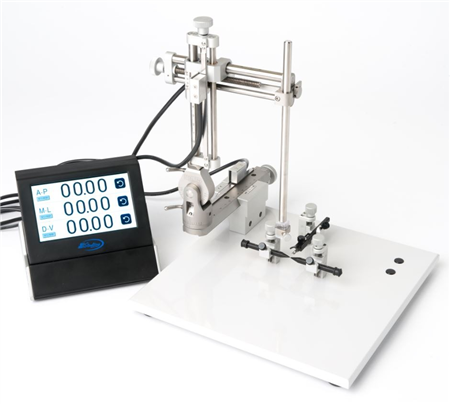

		Yes	Standard (Vernier Scale) 10 microns (0.01 mm) Resolution	505314
			Ultra-Precise 1 micron (0.001 mm) Resolution	505317

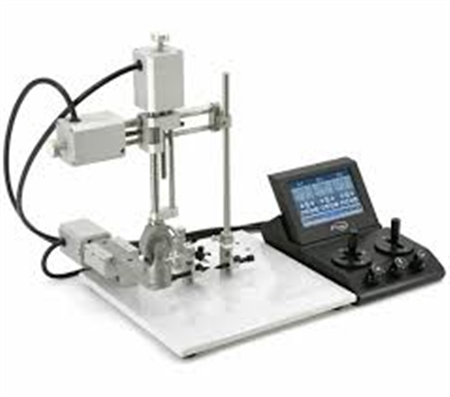

	Motorized		Motorized 10 micron (0.01 mm) Resolution	505315

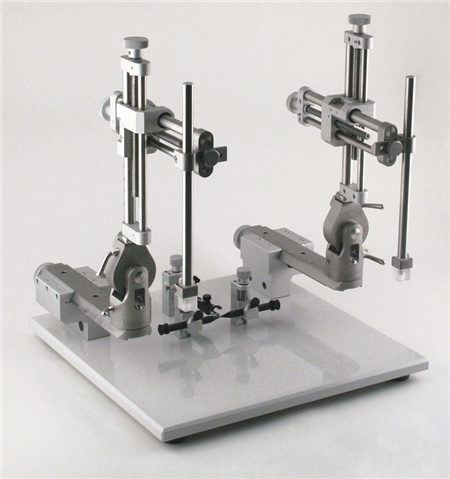

Dual	Manual	No	Standard (Vernier Scale) 100 microns (0.1 mm) Resolution	505319

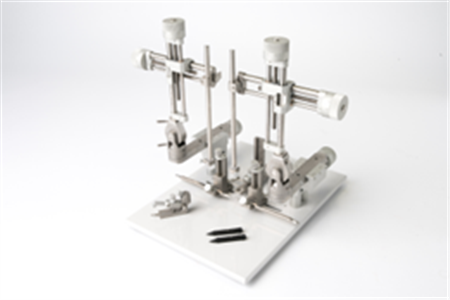

			Ultra-Precise 10 microns (0.01 mm) Resolution	505321

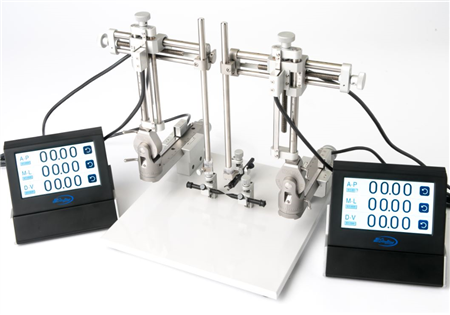

		Yes	Standard (Vernier Scale) 10 microns (0.01 mm) Resolution	505320
			Ultra-Precise 1 microns (0.001 mm) Resolution	505322

All options include

• Mouse only stereotaxic frame with warmer ready integrated base (requires separate controller and temperature probe)
• Mouse snout clamp
• Tooth bar
• Dual sided ear bars (Delrin^® with tapered points on one end, and non-rupture rubber tip on the other)
• Corner clamp probe holder (not included with 505318)

---
