Adaptors

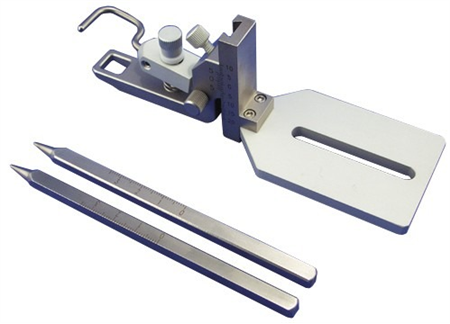

505238

Rat Adaptor Kit, 45 Deg.

It has 30 mm of vertical travel along dovetail slide and 0.1 mm vernier scales. 50 mm of Anterior-Posterior travel possible.

The nose clamp assembly, and 45° non-rupture Ear Bars, are included.

505239

The 505239 Rat Adaptor Kit, 18 Degree is included with all WPI Rat Stereotaxic Instruments.

It has 30 mm of vertical travel along dovetail slide and 0.1 mm vernier scales. 50 mm of Anterior-Posterior travel possible. The nose clamp assembly, and standard 18 deg. ear bars are included.

505240

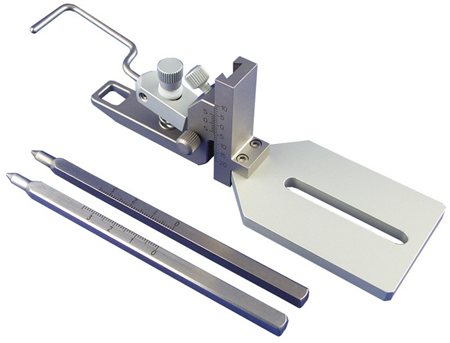

Guinea Pig Adaptor Kit, includes the 45° ear bars required for guinea pigs.

The nose clamp reaches further back behind the incisors than on the rat adaptors. Capable of both vertical and A-P travel. It is available for use with the WPI Rat Stereotaxic Instruments series.

505241

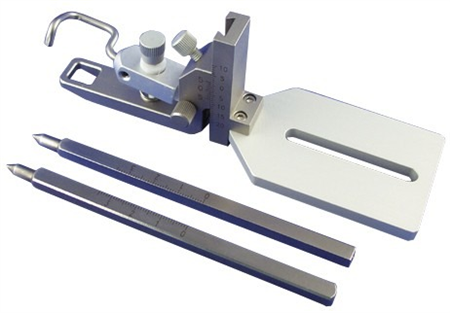

The Small Bird Adaptor includes the 45° ear bars (nontraumatic) required for birds.

The Small Bird Adaptor uses a beak support and “V” shaped beak clamp to hold the beak down and centered, in place of the incisor bar/nose clamp arrangement used for rats

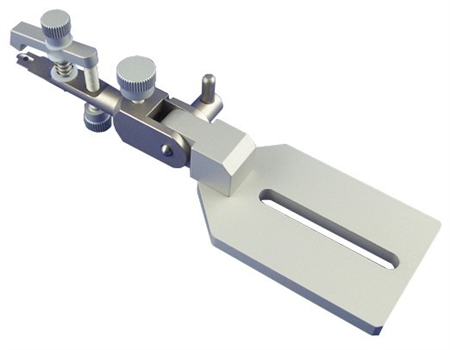

505242

The mouse's head by means of a palate bar and nose clamp, without ear bars.

• Head angle may be adjusted to achieve a flat skull or other approach angles.The mouse head by means of a palate bar and nose clamp, without ear bars. (Ear bars can cause breathing difficulties and bleeding in mice.)
• Head angle may be adjusted to achieve a flat skull or other approach angles.
• Fits 505211, 505293,505326 and 505351 series stereotaxic instruments.

505243

Mouse and Neonatal Rat Adaptor. Set of two jaw holder cuffs included

505244

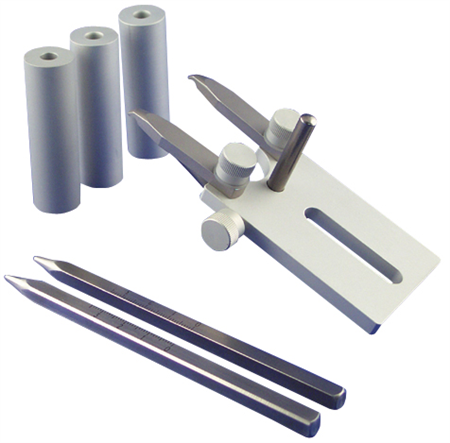

Cat Adaptor for 505211

The adaptor for the Rat Stereotaxic Instrument (505211) includes spacers and bolts to raise the “U” frame 2.5 inches above the base plate, the eye socket/palate holder and 18° ear bars

505245

Cat Adaptor, Non Rupture

The adaptor for the Rat Stereotaxic Instrument (505211) includes spacers and bolts to raise the “U” frame 2.5 inches above the base plate, the eye socket/palate holder and non-rupture 45° ear bars

505246

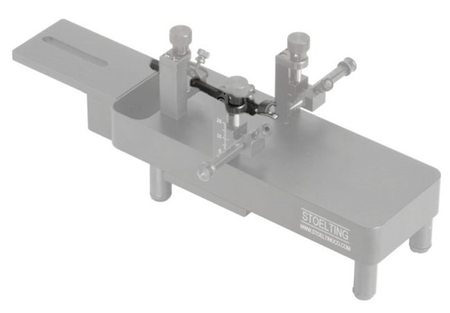

Snout Clamp for Mouse Stereotaxics

505275

Posts for Mouse and Neonatal Rat Adaptors

505285

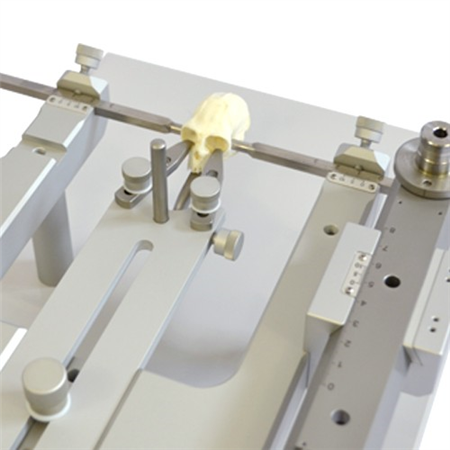

Marmoset Adaptor Kit for 505211

505292

Rat Spinal Adaptor

505343

Dog Adaptor

505385

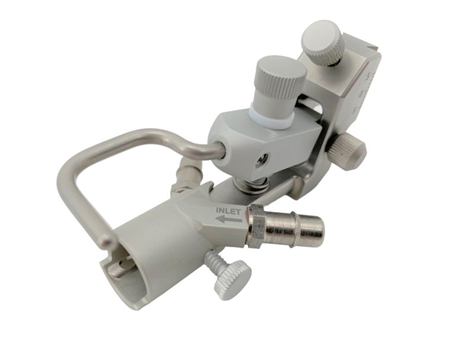

Mouse Stereotaxic Anesthesia Mask with Bite Bar allows for direct delivery of anesthesia for procedures requiring stereotaxic frames

Compatible with 505200 series

505386

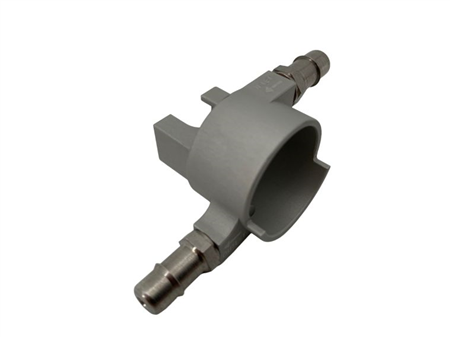

Rat Stereotaxic Anesthesia Mask, slides around Bite Bar allows for direct delivery of anesthesia for procedures requiring stereotaxic frames

Compatible with 505200 series

568053

Rat Anesthesia Adaptor
